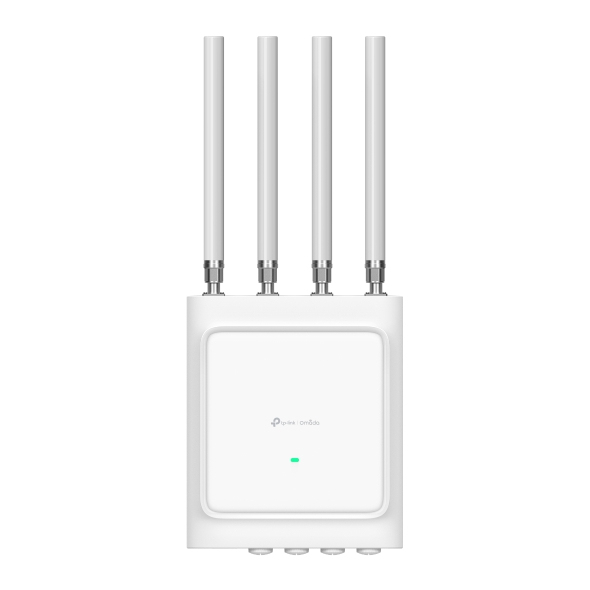

Access Point Omada Eap668-outdoor Hd Ax3600 Indoor / Outdoor Wi-Fi 6 White
ITCurry #: P6044166 | Article #: EAP668-OUTDOOR HD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Ultra-High Capacity
Powered by a high-performance multi-core CPU and advanced QoS, the EAP668-Outdoor HD delivers optimal WiFi performance to support 1000+ connected devices.
Industry-Leading IP68 Weatherproof Design
The fully sealed EAP668-Outdoor HD surpasses IP67 standards, providing total dustproof protection and enduring prolonged submersion in water—ideal for even the harsh outdoor conditions.
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Easy and Quick Setup
Easy Installation through Wall and Pole Mount
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP668-Outdoor HD through automatic device identification and one-click adoption.
Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 3500 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Bluetooth | Yes |
| Security | |
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Protocols | |
| DHCP client | Yes |
| Management features | |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Pole |
| Product colour | White |
| Reset button | Yes |
| Antenna | |
| Antenna type | External |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) | 6 dBi |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Weight & dimensions | |
| Width | 240 mm |
| Depth | 80 mm |
| Height | 315 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 70 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Storage relative humidity (H-H) | 5 - 90% |
| Warranty | |
| Base Warranty | Non Non |
