Product Information

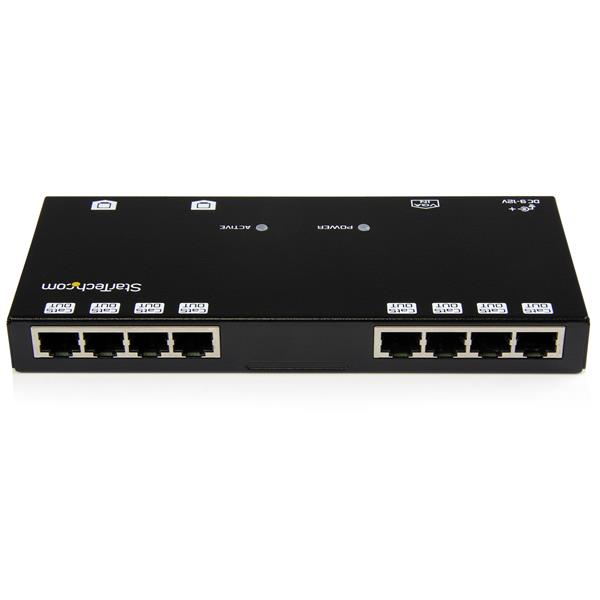

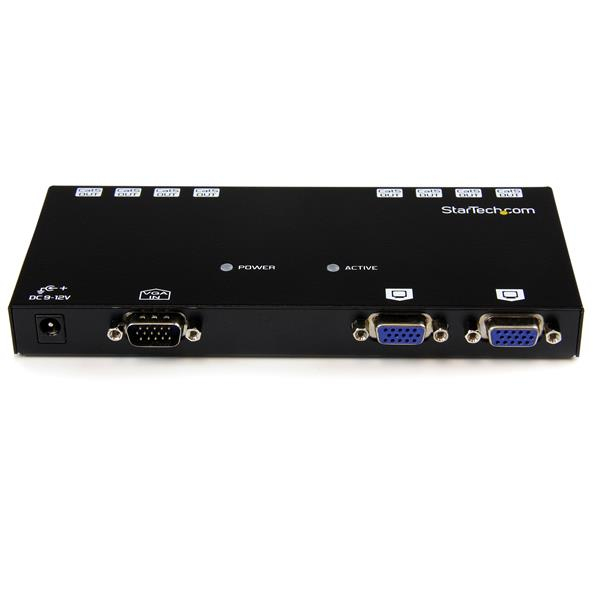

Extend and distribute a VGA signal to up to 8 displays over Cat5 cable
The ST1218T 8 Port VGA Video Extender over Cat 5 is designed for use with our ST121 VGA over Cat 5 extension series, offering convenient VGA video distribution at distances of up to 492 feet (150 meters) using standard Cat 5 (or better) cabling. Comprised of the transmitter unit only, the ST1218T requires one ST121R" text="Receiver Unit (ST121R) per display that you are connecting. For added versatility, the ST121EXT" text=" VGA over Cat 5 Repeater (ST121EXT) can be used to extend the distance between the transmitter and receiver by an additional 492-feet (150 meters), for a total distance of 984-feet (300 meters). Similarly, up to 3 repeater units can be used between transmitter and receiver, enabling you to connect monitors at each repeater, while still extending the total distance. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Cat 5 extension enables you to make use of existing Ethernet infrastructure wiring to extend VGA video
- A pure hardware design provides an easy installation and setup, with no software or drivers required
- Support for cascading multiple transmitter units, and the use of repeaters for additional distance, providing a scalable system for VGA distribution
| Features | |
| Type | AV receiver |
| Maximum resolution | 1600 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 150 m |
| LED indicators | Activity, Power |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA) |
| Product colour | Black |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 2 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 115 V |
| Packaging data | |
| Package width | 94 mm |
| Package depth | 239 mm |
| Package height | 187 mm |
| Package weight | 760 g |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Warranty | |
| Base Warranty | Non Non |
