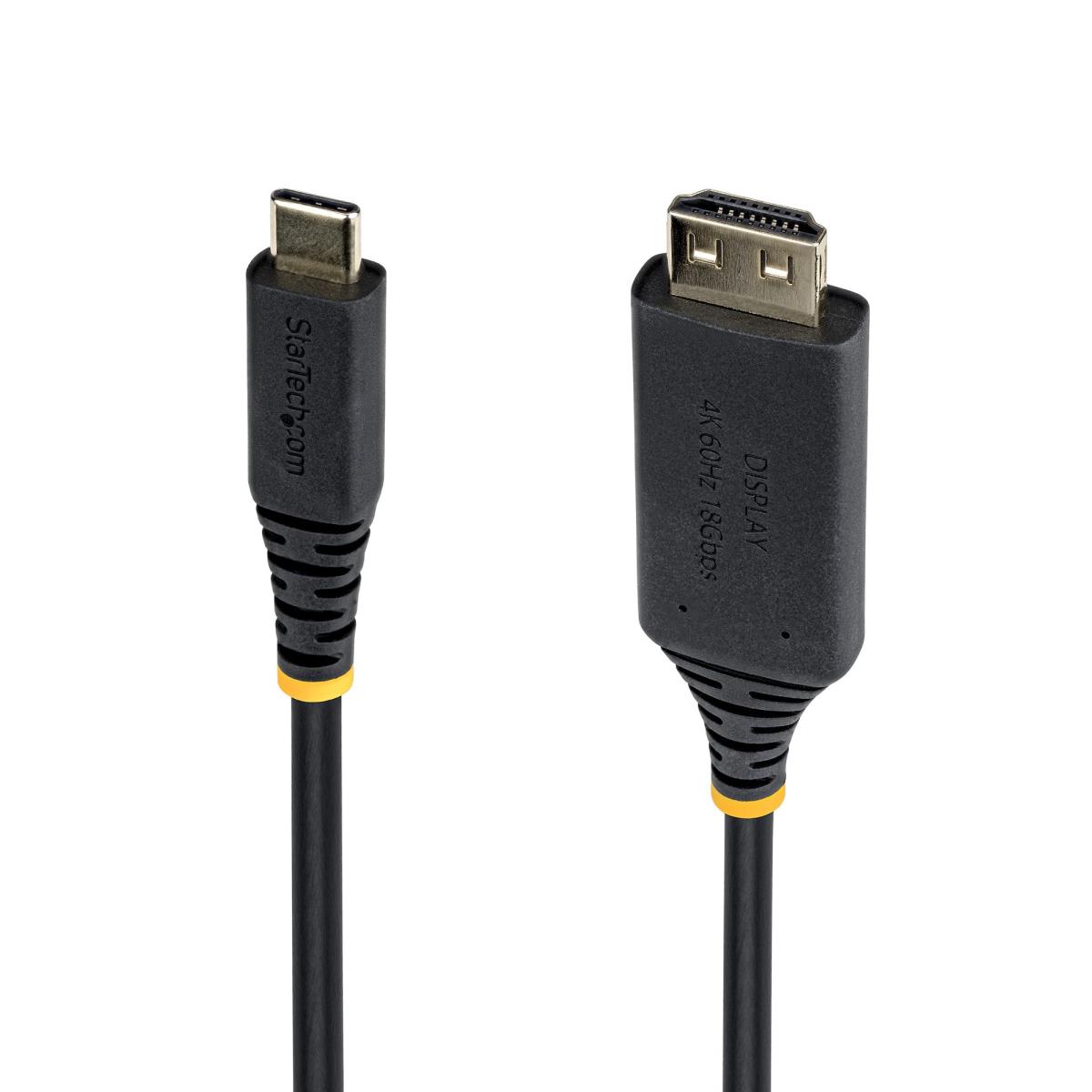

USB-c To Hdmi Cable Gripping Hdmi 1m
ITCurry #: 7564C698 | Article #: 1M-USBC-HDMI-4K60-G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Deliver seamless UHD video with this USB-C to HDMI cable, featuring a gripping HDMI connector that stays firmly in place
Connect USB-C laptops to 4K 60Hz HDMI displays with a single 1m active adapter cable that delivers stable, high-bandwidth video and audio for professional workspaces.
Keep Displays Connected in High-Traffic Environments
Avoid costly interruptions in boardrooms, hot desks, and collaboration areas. The gripping HDMI connector resists vibration and strain, helping maintain a secure connection to the display even when cables are frequently connected and disconnected.
Deliver Clear and Reliable Video
Speed up installs with clear markings on the connector that verify the HDMI cables capabilities at a glance. Drive HDR-ready 4K 60Hz video with full 4:4:4 / RGB color and 7.1-channel audio for clear text and visuals. The integrated cable and adapter design reduces signal loss, cuts down on clutter, and removes common failure points.
Deploy Fast Across Any Platform
Roll out instantly with this driverless cable that works on any operating system and all hardware platforms. Deliver uncompressed, high-bandwidth video via the host's native GPU rather than CPU-driven USB video processing, resulting in lower latency, reduced CPU utilization, and more reliable performance, making it ideal for quick installs, conference rooms, and standardized deployments.
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Cable length | 1 m |
| Connector 1 | USB Type-C |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| HDMI version | 2.0 |
| HDCP | Yes |
| HDCP version | 2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Bandwidth | 18000 MB/s |
| Product colour | Black |
| Chipset | VL600 |
| Jacket material | Thermoplastic elastomer (TPE) |
| Colour sampling | 4:4:4 |
| Supported audio channels | 7.1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Cable diameter | 4.5 mm |
| Packaging data | |
| Package width | 190 mm |
| Package depth | 110 mm |
| Package height | 19 mm |
| Package weight | 93 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 225 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 40 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
