USB-c Sd Express Card Reader
ITCurry #: 7564C100 | Article #: 1B-USB-C-SDE-ADAPTER-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

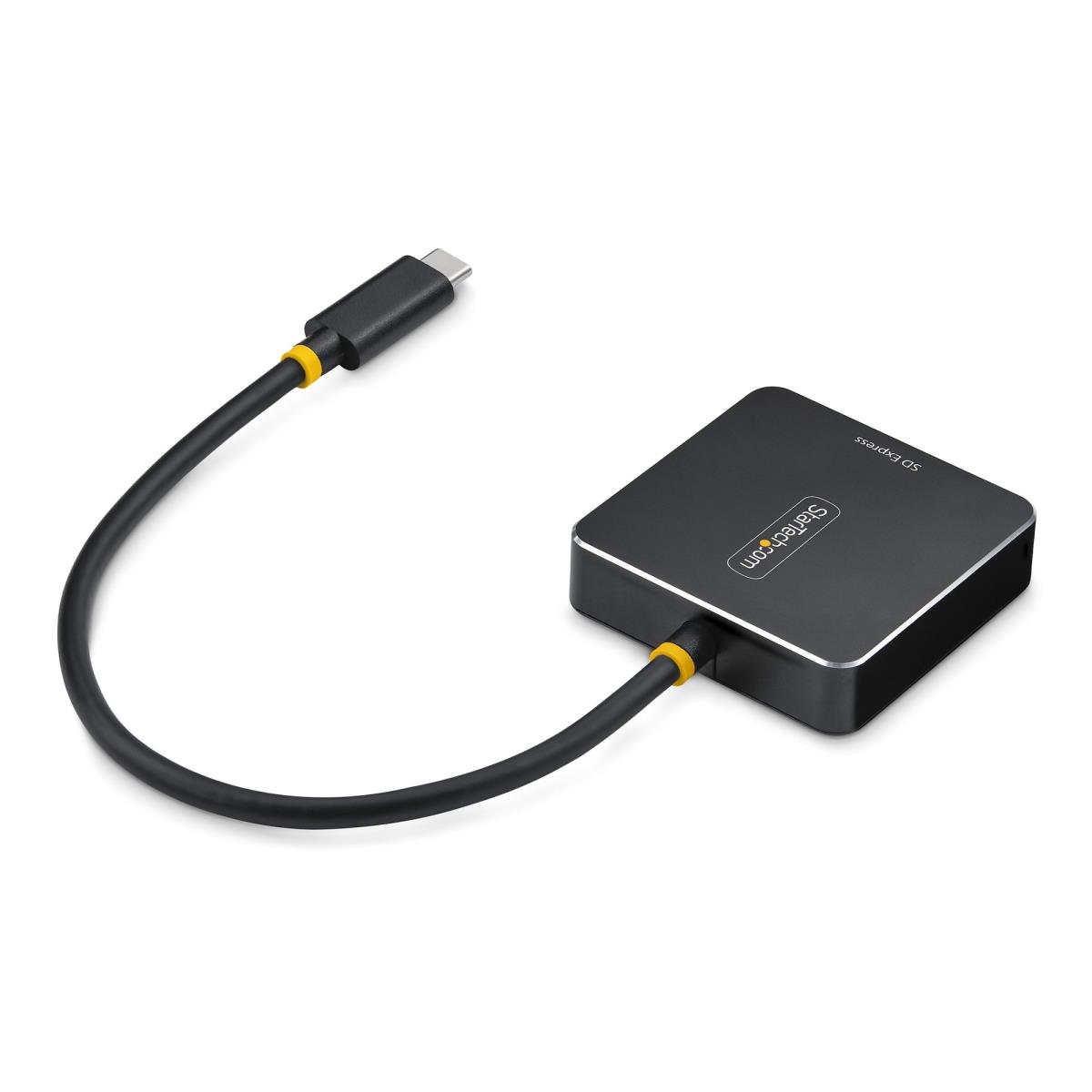

Instantly access digital content from a SD Express memory card on a USB-C enabled laptop, desktop, tablet, or other device
This SD Express card reader allows you to connect a SD Express (PCIe 3.1 x1) card to any USB-C-enabled laptop, desktop, tablet, or other device for high-speed data transfer of high-resolution images or video.
Portable Design
The card reader is bus-powered and features a lightweight aluminum body, making it ideal for traveling professionals such as photographers or videographers. Its compact form factor includes an attached 8.7inch (22cm) USB Type-C cable, eliminating the need to carry additional cables or adapters.
Write Protection
The SD card slot supports the mechanical write protect switch, which prevents accidental or unauthorized deletion, modification, or overwriting of data. This feature allows the use of the same card on multiple hosts while ensuring data protection.
No Drivers or Software
This universal card reader requires no drivers or software and is compatible with any operating system, including Windows, macOS, ChromeOS, and Linux. It works with USB-C-enabled laptops, desktops, tablets, MacBooks, and Chromebooks across all hardware platforms, including Intel, Nvidia, AMD, and Apple Silicon.
USB 10Gbps Host Connection
With a USB Type-C 10Gbps connection, this card reader offers faster data transfer speeds compared to USB 5Gbps card readers, significantly reducing the transfer time for large, high-resolution images and videos. It is also backward compatible with USB 3.0 (5Gbps) and USB 2.0 (480Mbps).
| Performance | |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| Number of memory card slots | 1 |
| Internal | No |
| Data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Housing material | Aluminium, Plastic |
| Plug and Play | Yes |
| Ports & interfaces | |
| Interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Weight & dimensions | |
| Width | 54 mm |
| Depth | 274 mm |
| Height | 14 mm |
| Weight | 60 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 142 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 63 g |
| Packaging content | |
| Quick start guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 øC |
| Storage temperature (T-T) | 0 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Technical details | |
| Chipset | JMS581SD |
| Logistics data | |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 485 mm |
| Master (outer) case length | 273 mm |
| Master (outer) case height | 320 mm |
| Warranty | |
| Base Warranty | Non Non |
