Product Information

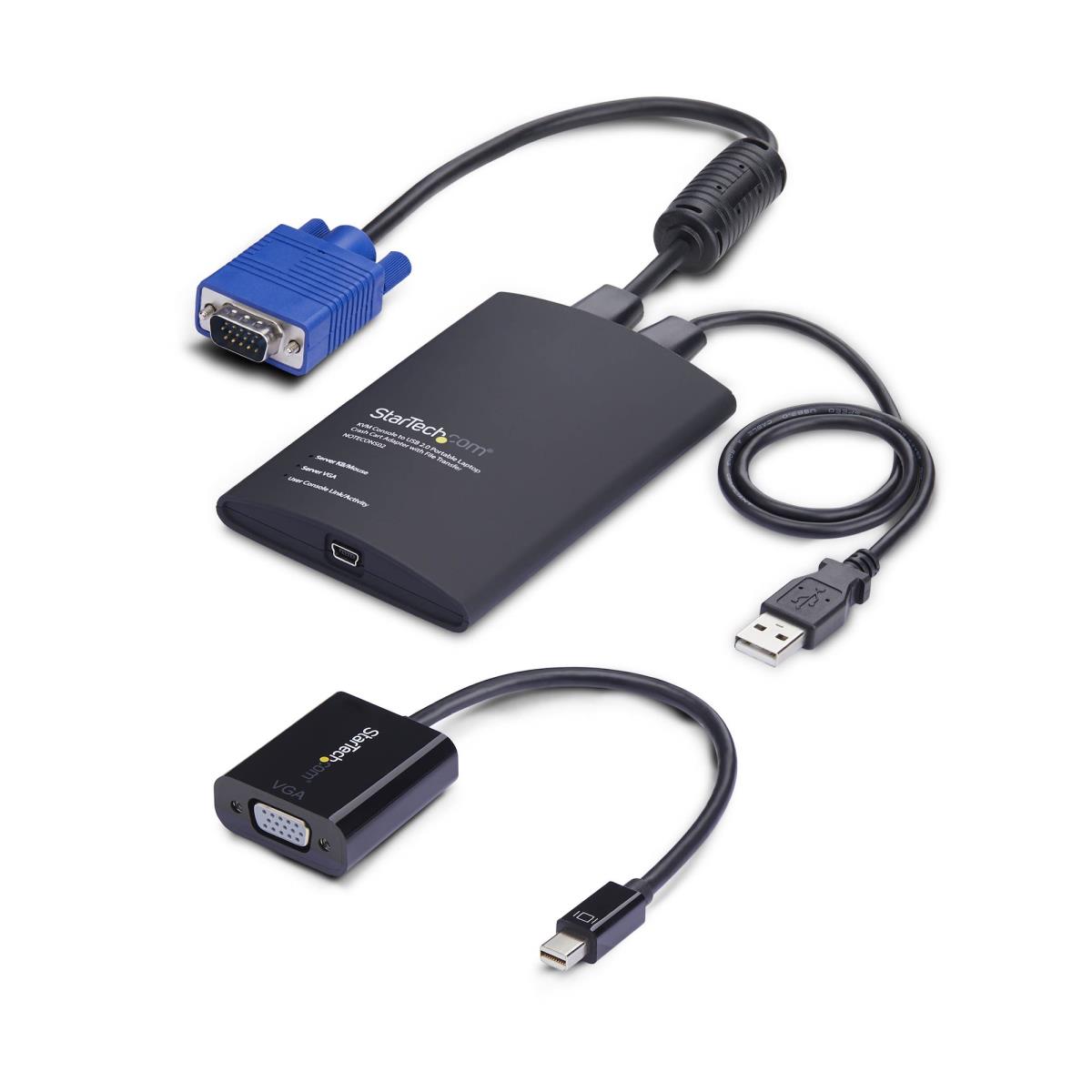

Turn a laptop into a portable console for rack servers, PCs, ATMs, kiosks, and more
The USB crash cart adapter gives you control of a headless system, turning your laptop into a portable crash cart for rack servers, PCs, ATMs, kiosks, and more.
Instant System Access
Simply connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control. Use the included Mini DisplayPort adapter to connect to mDP-enabled computers or servers. With no server-side software required, you can be up and running instantly.
*Please note that the mouse function may be limited in some BIOS/UEFI environments
Troubleshoot More Efficiently
With the flexible software interface, you can transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars helping you to troubleshoot faster.
Self-Powered Reliability
Powered from the server-side USB connection, the KVM adapter doesn't require an AC outlet so you can connect to any PC that has a VGA or mDP output and USB connection, even if there's no power outlet available.
Take It Anywhere
This pocket-sized adapter features a compact design that easily fits inside your laptop bag and requires no additional accessories to connect, eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems.
StarTech.com offers a wide selection of high-quality KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.
The StarTech.com Advantage
| Ports & interfaces | |
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| DisplayPort version | 1.2 |
| Console USB ports quantity | 1 |
| USB connector type | Mini-USB B |
| Audio connections | No |
| Performance | |
| Maximum resolution | 1920 x 1200 pixels |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Number of displays supported | 1 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Hot keys | No |
| Display | |
| Built-in display | No |
| Power | |
| Power source | USB |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Sustainability | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 301 mm |
| Package height | 55 mm |
| Package weight | 358 g |
| Packaging content | |
| Cables included | Mini-USB |
| Quick installation guide | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Master (outer) case width | 532 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case height | 530 mm |
| Products per master (outer) case | 30 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
