Organize up to 48 Cat6 cables with a rackmount patch panel built for high-capacity network setups

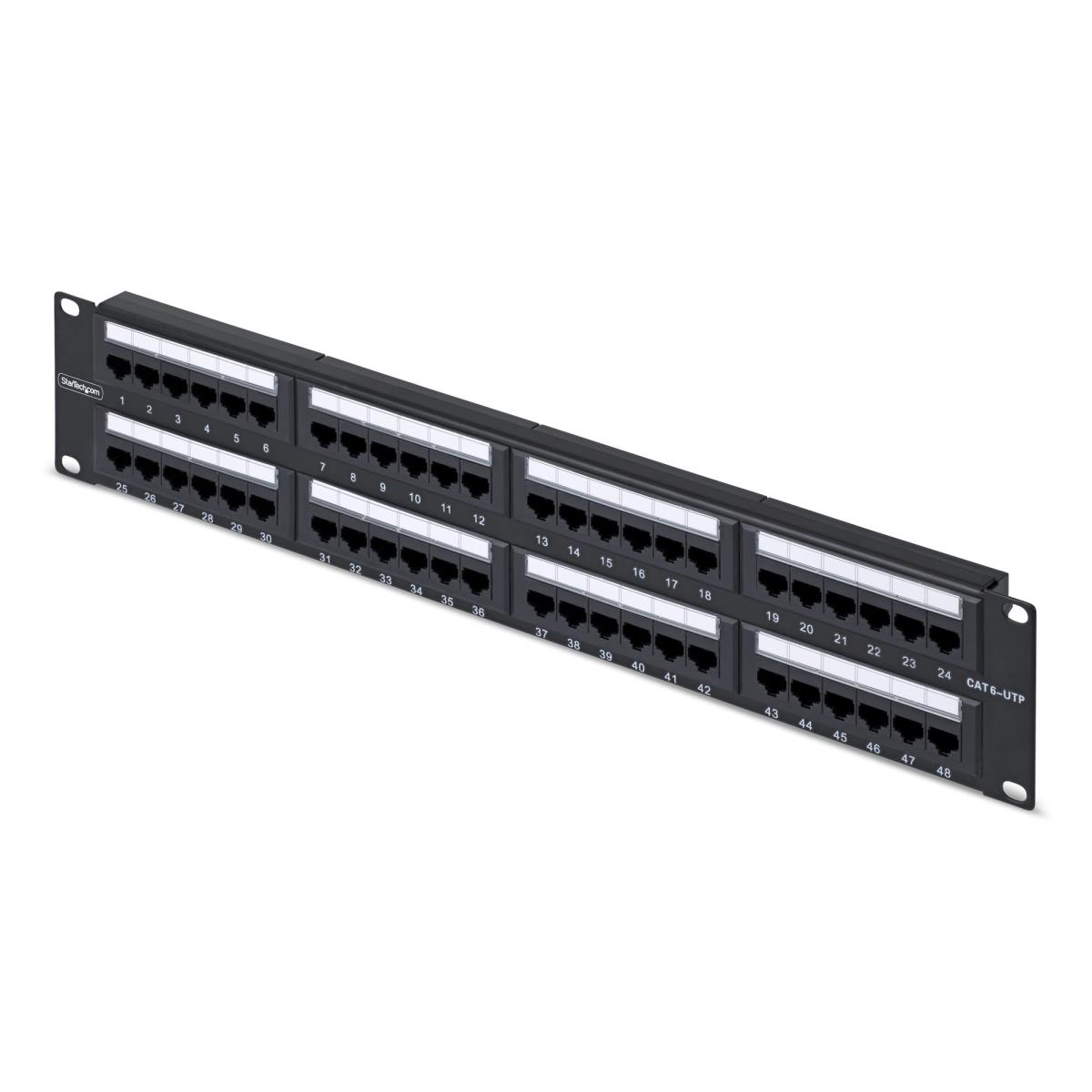

This 48-Port 2U Cat6 Patch Panel provides a reliable way to route and manage Ethernet connections in rack-mounted network setups. It's designed for high-density environments like data centers and server rooms, where structured cable management and long-term performance are critical.
Structured Connectivity
The 2U network patch panel features clearly numbered RJ45 ports and color-coded 110 punch-down blocks that support both T568A and T568B wiring. The intuitive layout helps simplify installation, keeps cable paths organized, and facilitates accurate fault isolation when troubleshooting.
Durable Construction
A robust steel housing with a black powder-coated finish protects the rackmount patch panel in demanding environments. Gold-plated contacts ensure lasting signal integrity, and 110 punch-down terminals facilitate secure, fixed cable connections for stable Ethernet performance.
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Ports quantity | 48 |
| Connector(s) | RJ-45 |
| Cable types supported | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Design | |
| Product colour | Black |
| Material | Steel |
| Mounting | Rack mounting |
| Rack capacity | 2U |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Operating relative humidity (H-H) | 0 - 50% |
| Storage temperature (T-T) | -40 - 85 øC |
| Weight & dimensions | |
| Width | 89 mm |
| Height | 34 mm |
| Depth | 483 mm |
| Weight | 980 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 515 mm |
| Package depth | 120 mm |
| Package height | 75 mm |
| Package weight | 1.5 kg |
| Logistics data | |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
