Mini DisplayPort Cable - M/m 1m
ITCurry #: 75645467 | Article #: MDISP1M-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Create a high-resolution 8k or 4k connection with HBR3 support between your Mini DisplayPort™-equipped laptop and monitor

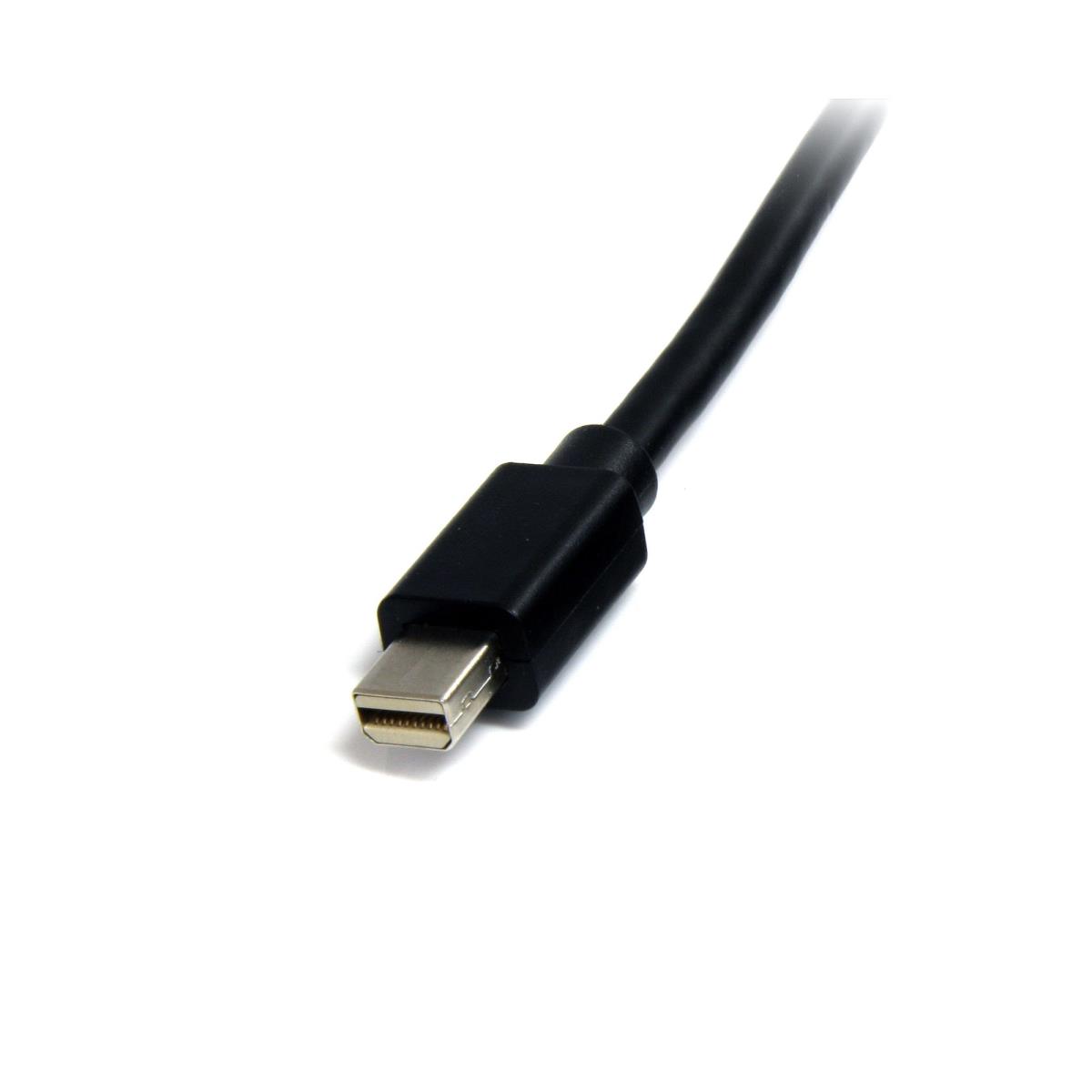

This Mini DisplayPort™ 1.4 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 8k (7680 x 4320) @ 60Hz with a maximum HBR3 bandwidth of 32.4 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
Ensures reliable performance and proper display of digitally protected content, with support for both HDCP and DPCP.
Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
Please note: This is not a Thunderbolt cable, and therefore does not work for Thunderbolt peripherals (displays, docks, drive enclosures, audio interfaces, etc).
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 2560 x 1600 (WQXGA), 3840 x 2400 |
| Supported video modes | 720p, 1080p, 2160p |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Cable length | 1 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | Mini DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Cable rating | CMG (CM) |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| Bandwidth | 21600 MB/s |
| Plug and Play | Yes |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Weight | 39.9 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 12 mm |
| Package weight | 40.3 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 100 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
