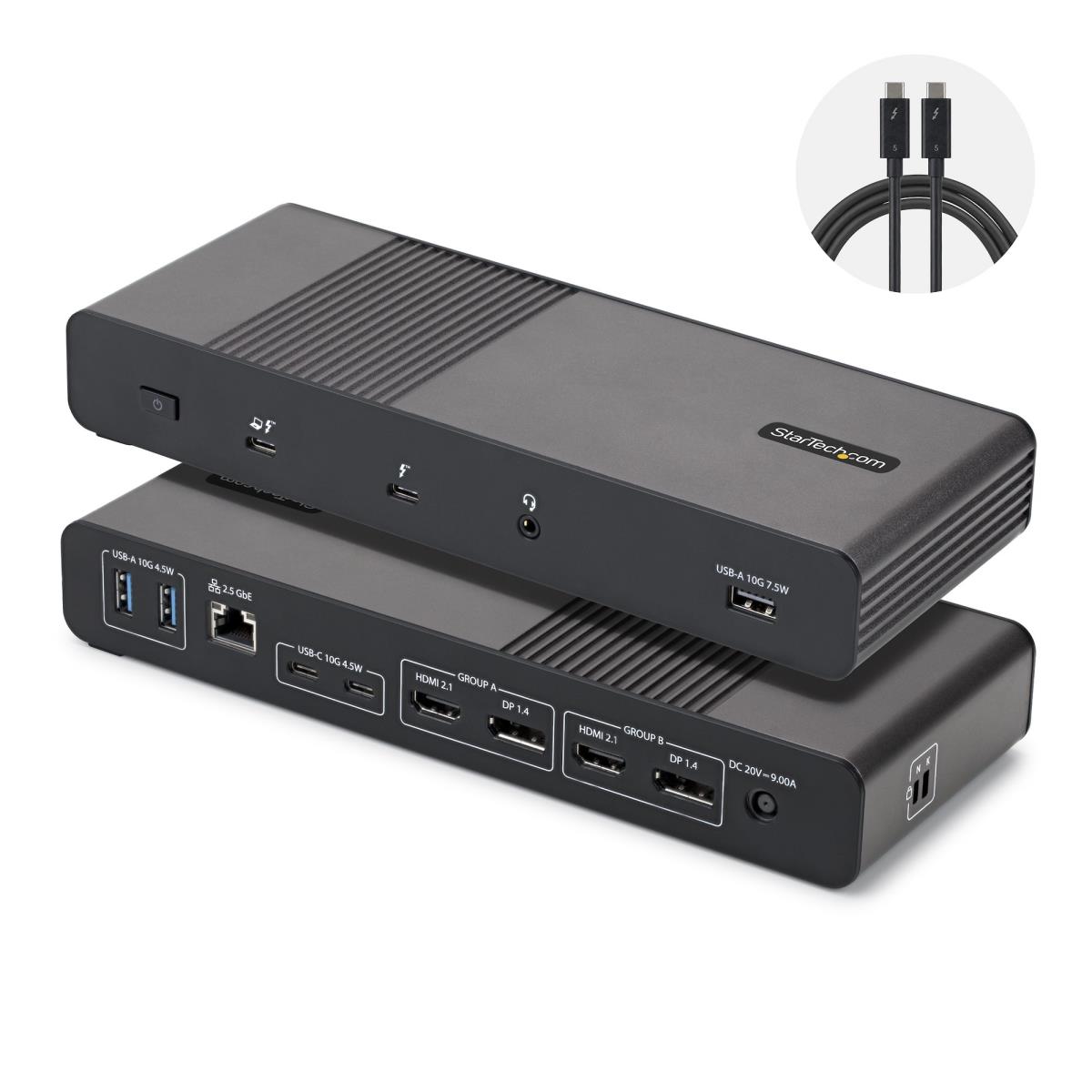

Laptop Charge - Thunderbolt 5 Docking Station Quad Monitor 140w
ITCurry #: 7564C767 | Article #: 206UE-TB5USB4DOCK-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Transform your Thunderbolt 5 or USB4 laptop into a high-resolution, multi-monitor workstation
Simplify your workspace with a high-performance dock that supports Thunderbolt 5, Thunderbolt 4, and USB4 laptops. Supports multiple displays up to triple 4K displays, 140W laptop charging, and 2.5G Ethernet, all through a single connection.
Advanced Display and Charging Capabilities
Connect up to four extended 4K 60Hz displays on Windows using HDMI and DisplayPort outputs. On Mac, support dual 6K on MacBook Air and entry MacBook Pro, up to Triple 4K 120Hz on MacBook Pro with M5 Pro, or Quad 4K displays when daisy chaining 2 Thunderbolt monitors with M5 Max. The docking station includes an 180W power adapter that can supply up to 140W to charge high-performance laptops such as the MacBook Pro. A dedicated 45W Thunderbolt 5 port provides data connectivity and charging for phones or tablets without drawing power from the host computer.
Networking and Compatibility
Enjoy faster cloud access, file transfers, and virtual collaboration with the wired 2.5G Ethernet RJ45 port. Driverless dock is compatible out of the box with Windows 11 and macOS 15 / 26 systems that feature Thunderbolt 5, 4, or USB4 connectivity, helping ensure IT-managed deployments stay efficient and consistent.
Secure and High-Functioning Workspace
Dual security slots (K-Slot and Nano) let you physically secure the dock, helping prevent theft in shared environments or high-traffic workspaces. Connect high-performance peripherals through the downstream Thunderbolt port with up to 80Gbps/120Gbps bandwidth, while delivering up to 45W Power Delivery for fast device charging. Use the 3.5mm audio jack to connect headsets or speakers for seamless conferencing or media playback.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features such as MAC address pass-through, Wi-Fi auto-switch, and USB device monitoring, the software helps IT teams streamline deployment and enhance security across diverse setups.
Download the StarTech.com Connectivity Tools to optimize your device setup .
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Thunderbolt 5 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 80 Gbit/s |
| HD type | 4K DCI |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 4 |
| Maximum refresh rate | 240 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Nano, Kensington |
| Product colour | Black, Grey |
| On/off switch | Yes |
| LED indicators | LAN, Power, Link, Activity |
| UASP support | Yes |
| Housing material | Plastic |
| Power | |
| Output voltage | 20 V |
| Output current | 9 A |
| Power consumption (max) | 180 W |
| Compatible power plug types | UK, EU |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 92 mm |
| Depth | 243 mm |
| Height | 353 mm |
| Weight | 730 g |
| Packaging data | |
| Package width | 262 mm |
| Package depth | 169 mm |
| Package height | 90 mm |
| Package weight | 1.1 kg |
| Packaging content | |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 395 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case height | 300 mm |
| Other features | |
| Chipset | Intel - JHL9480 (Barlow Ridge), Synaptics - VMM6210, Synaptics - VMM6210, Infineon - CYPM1322, VIA Labs - VL822, VIA Labs - VL822, VIA Labs - VP226, VIA Labs - VP226, Realtek - RTL8156B, Fresco Logic - FL8501, Realtek - ALC4032 |
| Warranty | |
| Base Warranty | Non Non |
