Dual-monitor USB-c Docking Station Hdmi 4k 60hz 100w Laptop Charging 1gbe Driver
ITCurry #: 7564C551 | Article #: 196UE-USBC-DOCK-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

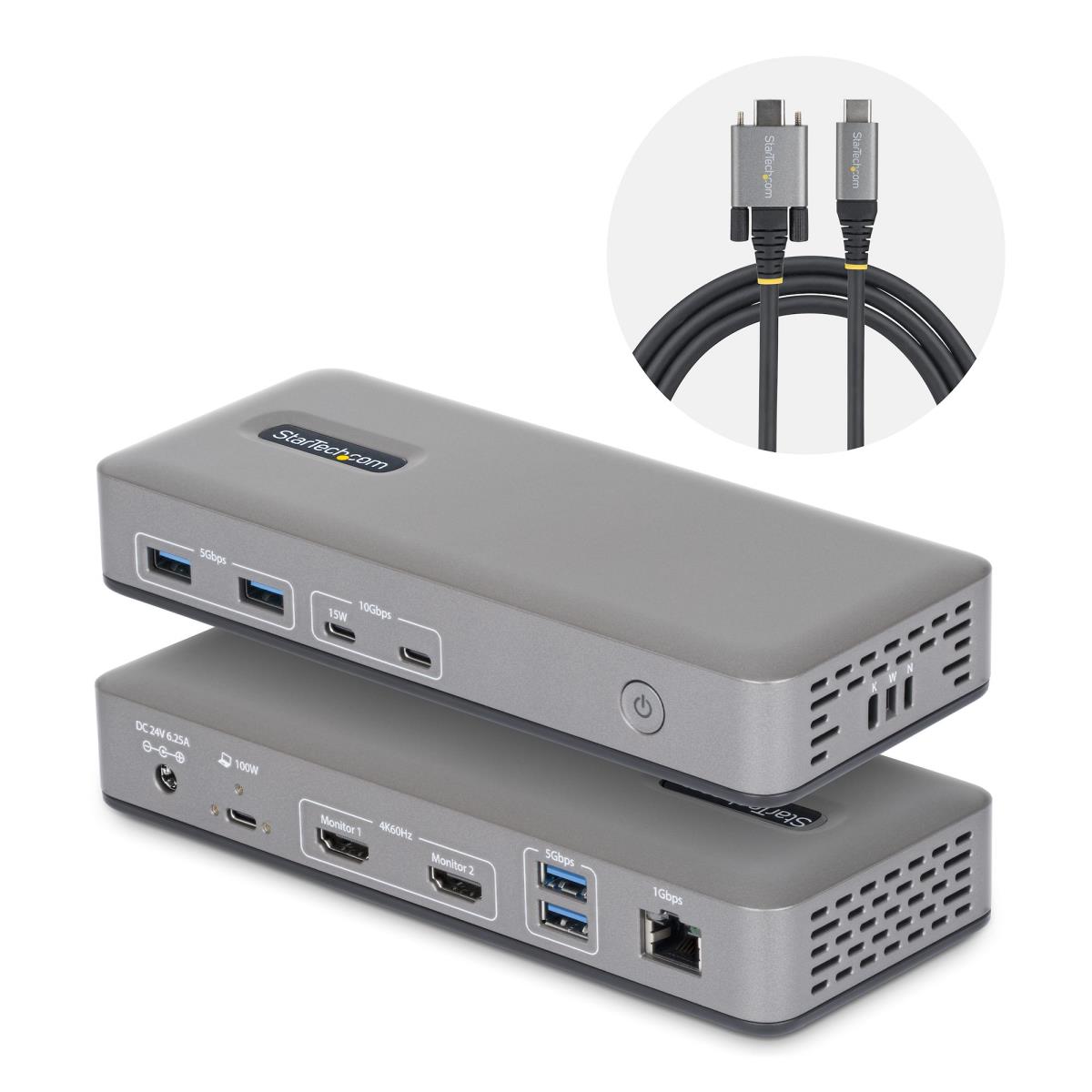

Transform a USB-C laptop into a dual-monitor workstation with HDMI video and USB-A and USB-C ports
Connect up to two 4K 60 Hz HDMI displays through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity.
Uncompressed Video Over USB-C
Connect up to two 4K 60Hz HDMI monitors through a single USB Type-C port with uncompressed video powered by your laptop's native GPU; Drive demanding workflows with high-performance visuals and no software compression
Driverless Deployment
Features plug-and-play functionality on Windows with no drivers or software required*. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments.
Flexible, High-Speed I/O
This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection.
Mounting and Security
This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA).
*Note: Not compatible with macOS or ChromeOS
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| Microphone in | No |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 10000 Gbit/s |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano, Noble, Wedge |
| Product colour | Grey |
| On/off switch | Yes |
| LED indicators | Power |
| Plug and Play | Yes |
| Housing material | Plastic |
| Power | |
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output voltage | 24 V |
| Output current | 6.25 A |
| Power consumption (max) | 150 W |
| Compatible power plug types | UK, US |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Linux operating systems supported | Ubuntu 24.04 LTS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | 10 - 70 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 79 mm |
| Depth | 190 mm |
| Height | 27 mm |
| Weight | 300 g |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 205 mm |
| Package height | 50 mm |
| Package weight | 1 kg |
| Packaging content | |
| Cables included | USB |
| User guide | Yes |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case height | 280 mm |
| Other features | |
| Chipset | VMM5220, VL103R, VL171, VL822Q8T, VP226, RTL8153E, VL817Q7S |
| Warranty | |
| Base Warranty | Non Non |
