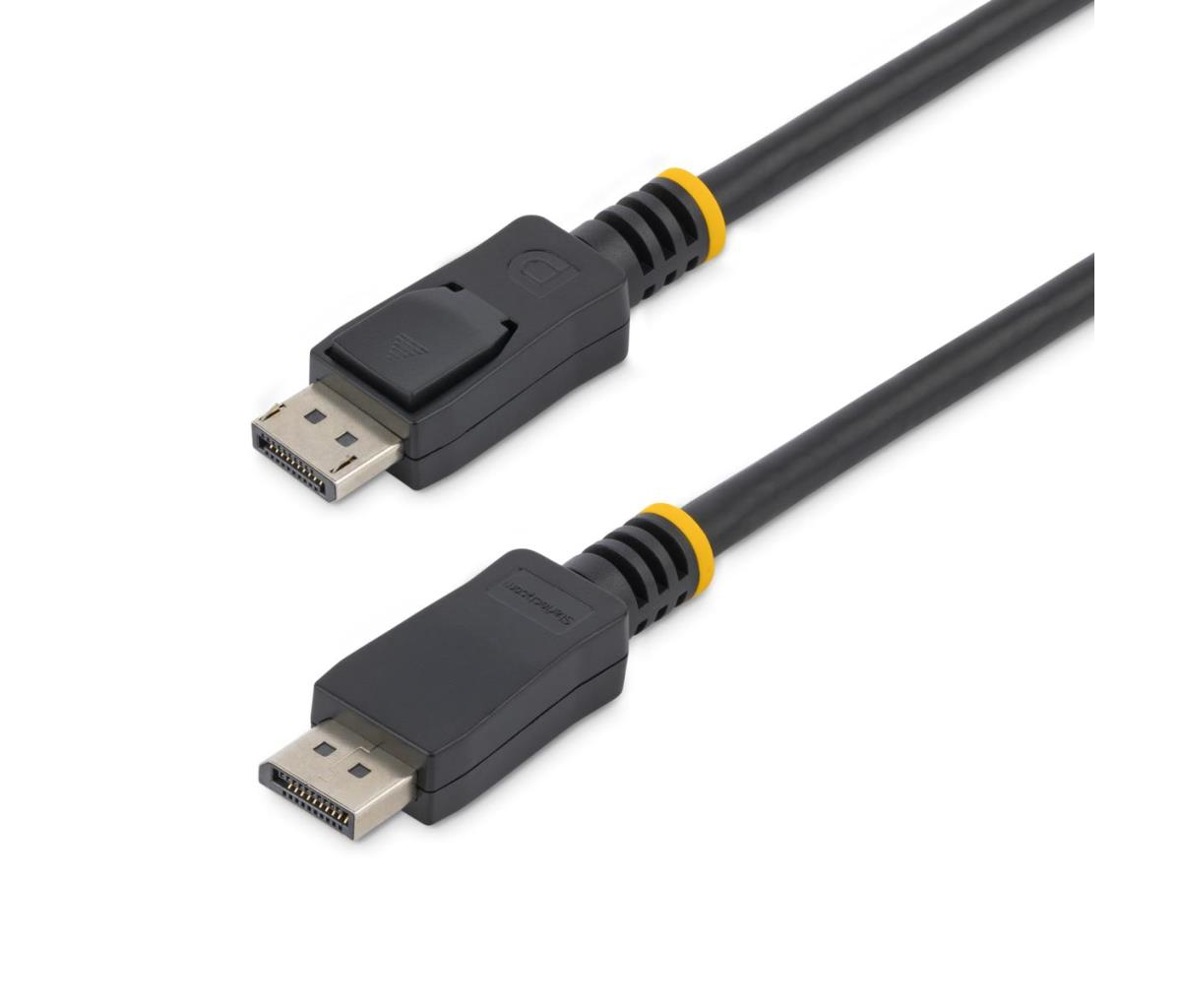

DisplayPort Cable With Latches 4.5m
ITCurry #: 75644441 | Article #: DISPLPORT15L-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort-equipped devices over longer distances
This DisplayPort ™ cable provides reliable long-distance connections between your sources and displays. This DP cable support resolutions up to 4k x 2k (4096 x 2160) @ 60Hz for high quality video.
High Quality Performance
The male to male DisplayPort cables support DP 1.2 features, including a maximum HBR2 bandwidth of 21.6 Gbps. The DP cables also support Multi-Stream (MST) for daisy-chaining multiple monitors with optional audio support. And they are backwards compatible with DisplayPort 1.1.
Reliable Latching Connectors
The black DP cables feature latches on each connector that provide a secure connection between your devices. They have a professional grade 28 AWG construction allowing for flexible and clean quality installations.
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 3840 x 2400, 2560 x 1600 (WQXGA) |
| Maximum refresh rate | 120 Hz |
| HDCP | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Cable length | 4.6 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Latching connectors | Yes |
| Product colour | Black |
| Cable rating | CMG (CM) |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Bandwidth | 21600 MB/s |
| Plug and Play | Yes |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Weight | 300 g |
| Packaging data | |
| Package width | 197 mm |
| Package depth | 195 mm |
| Package height | 61 mm |
| Package weight | 300 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 531 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 240 mm |
| Products per master (outer) case | 30 pc(s) |
