Desk Mount Monitor Arm Full Motion Height Adjustable
ITCurry #: 75649339 | Article #: ARMPIVOTE2-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
VESA Monitor Mount | Desk/Grommet Mount | Height Adjustable | For up to 32" Monitors

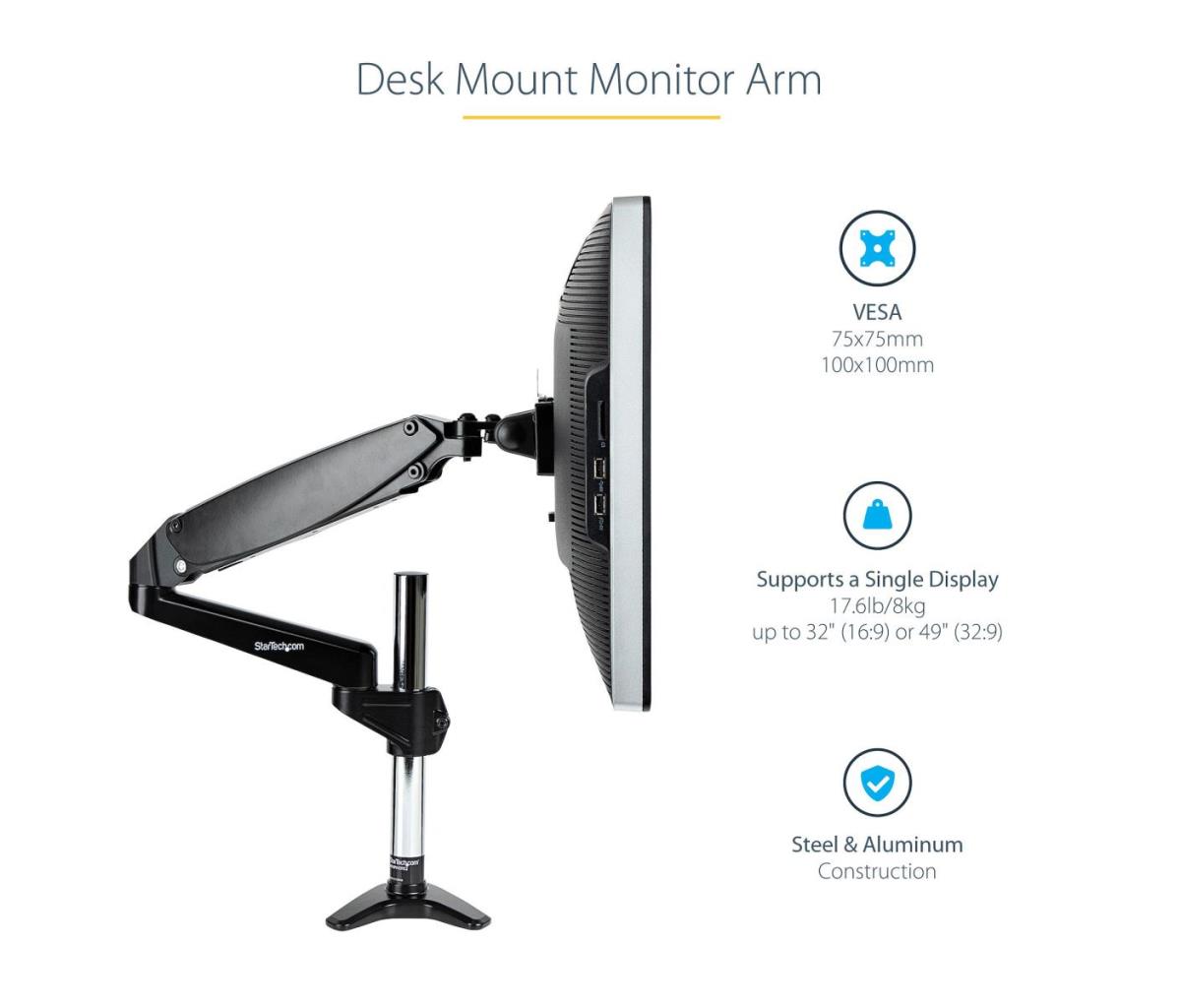

This desk mount monitor arm enables you to mount and raise a monitor with a maximum screen size of 32" (16:9) or 49" (32:9) ultrawide. Its solid steel construction allows this monitor arm to support up to 17.6lb (8kg) with two mounting options (C-Clamp or Grommet mount) to securely attach your monitor to your desk.

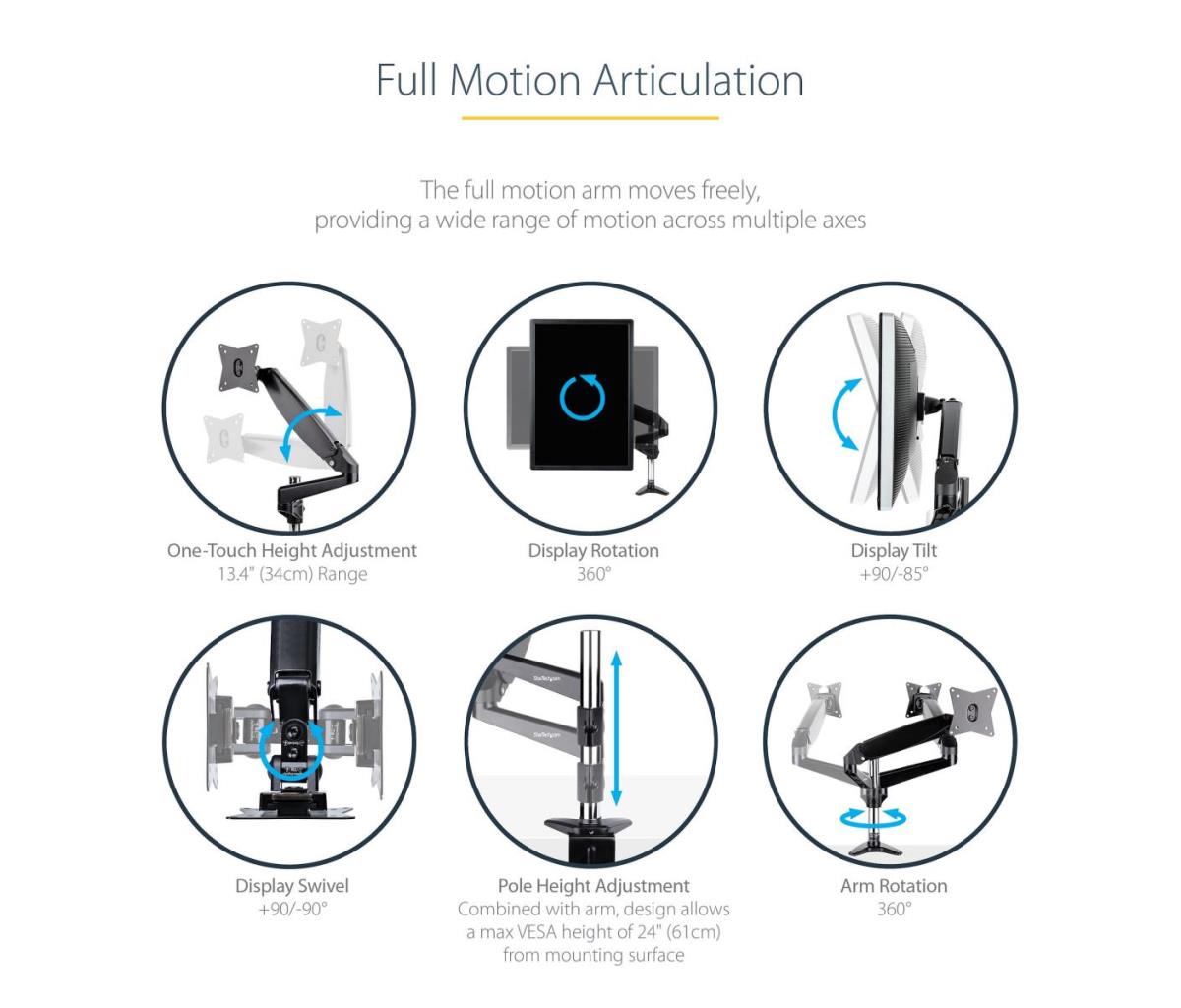

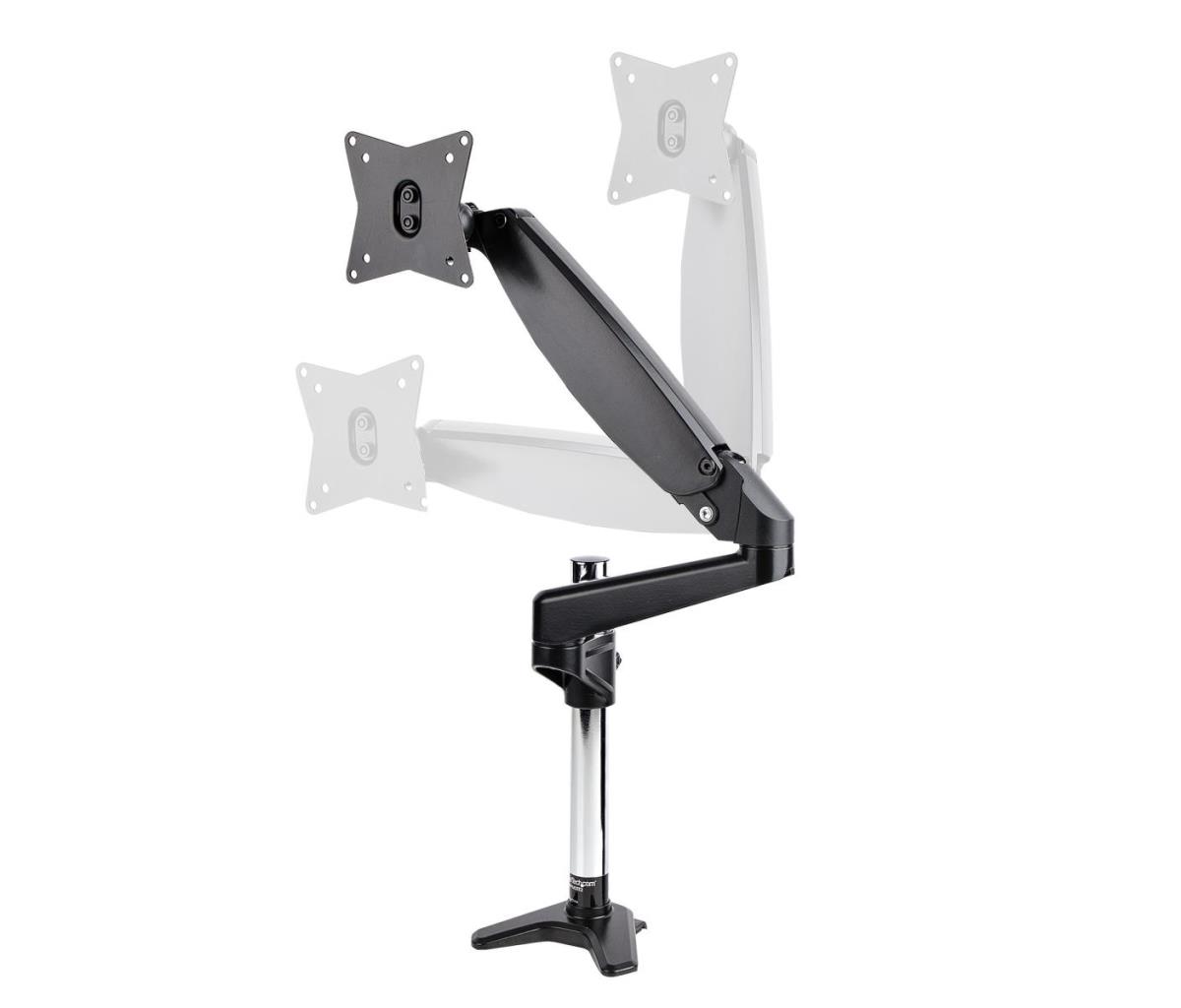

Full Motion Articulation

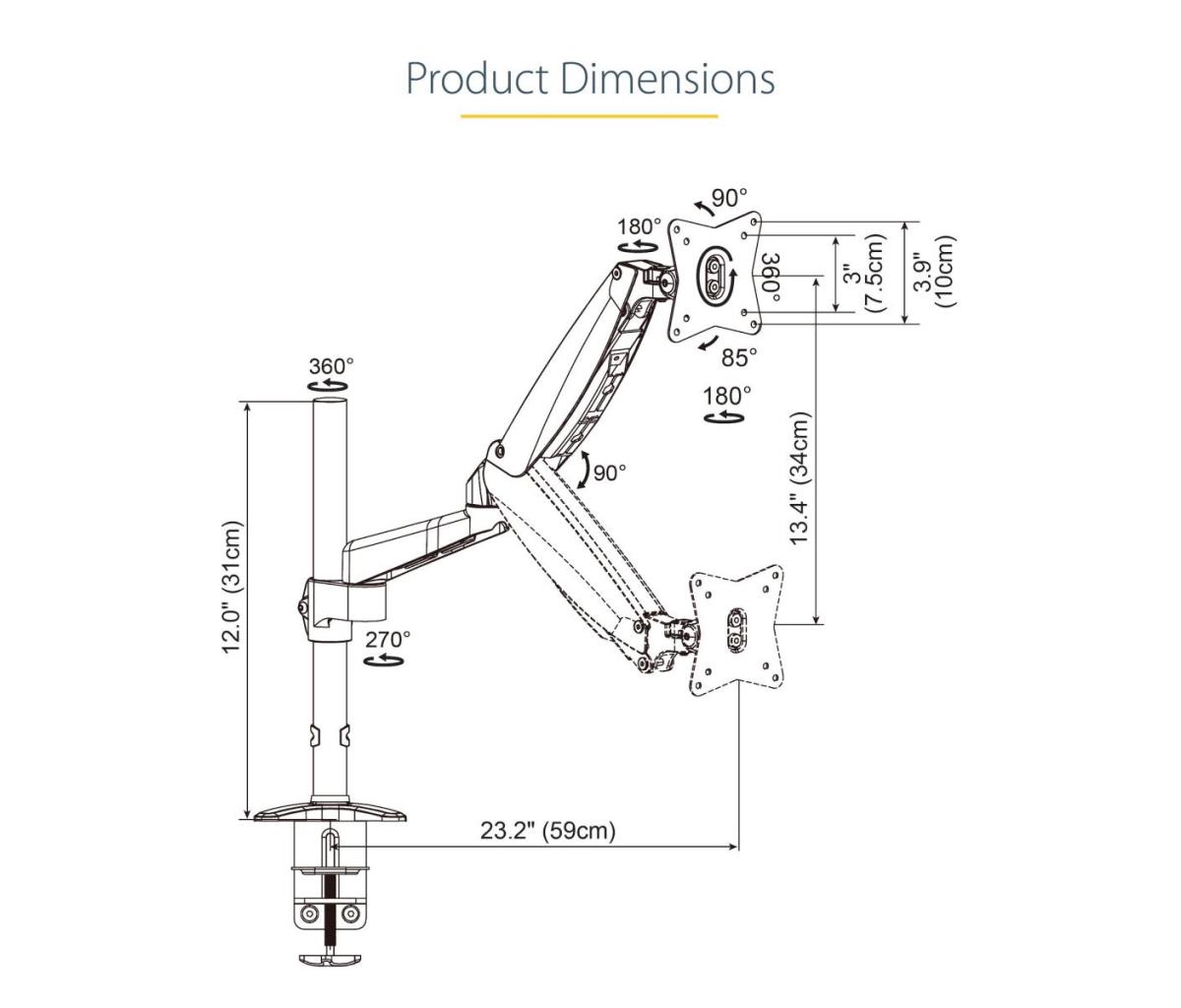

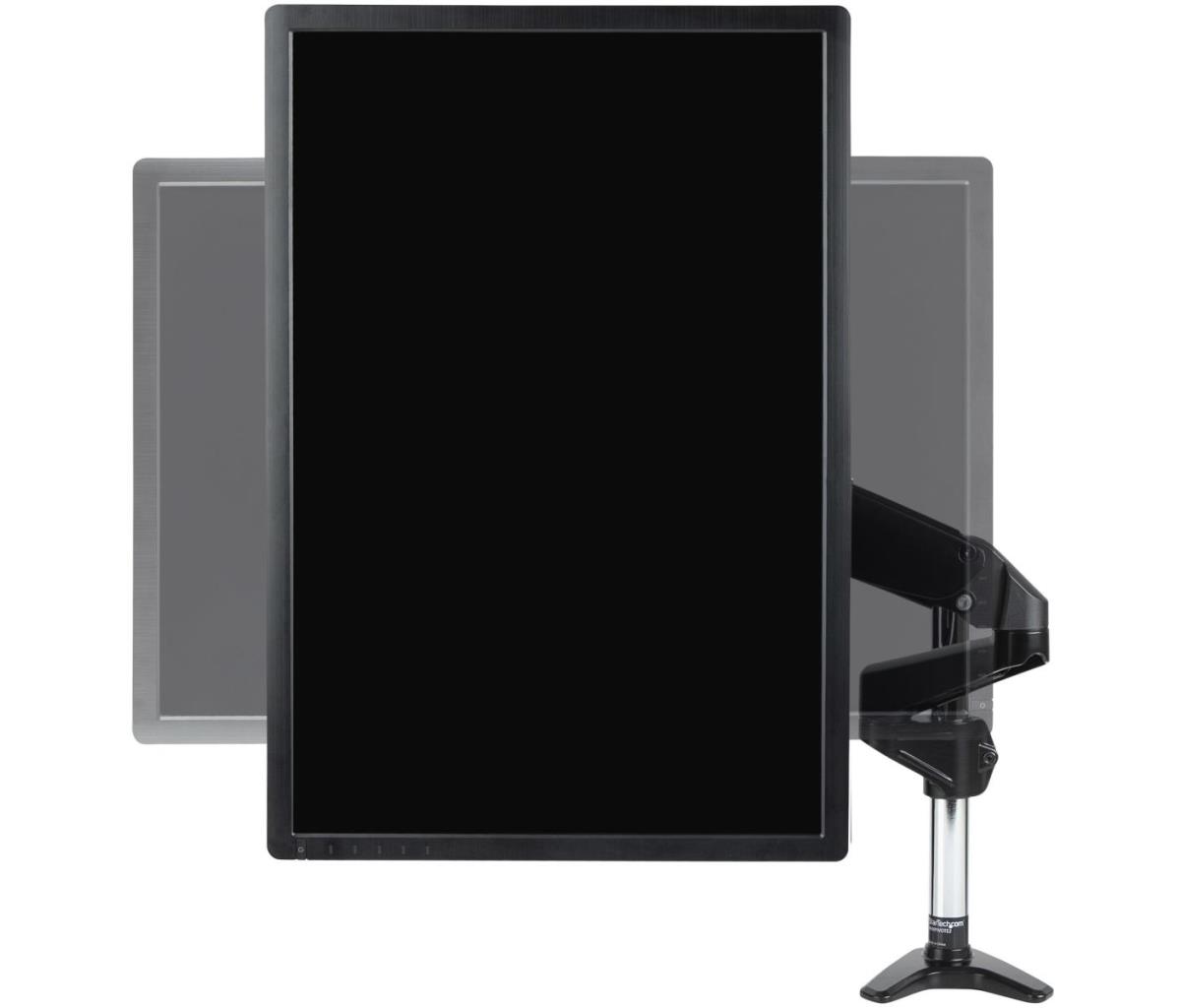

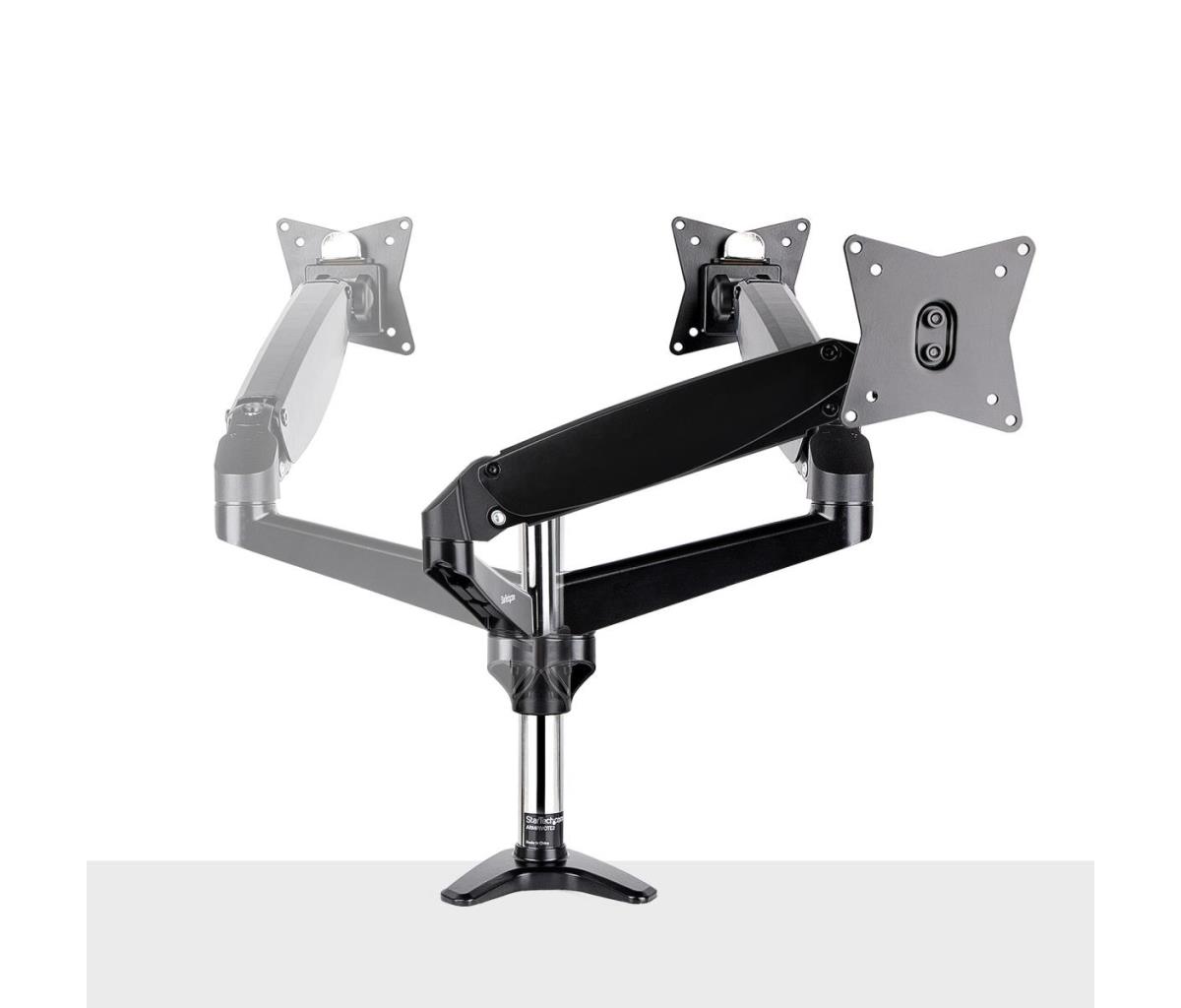

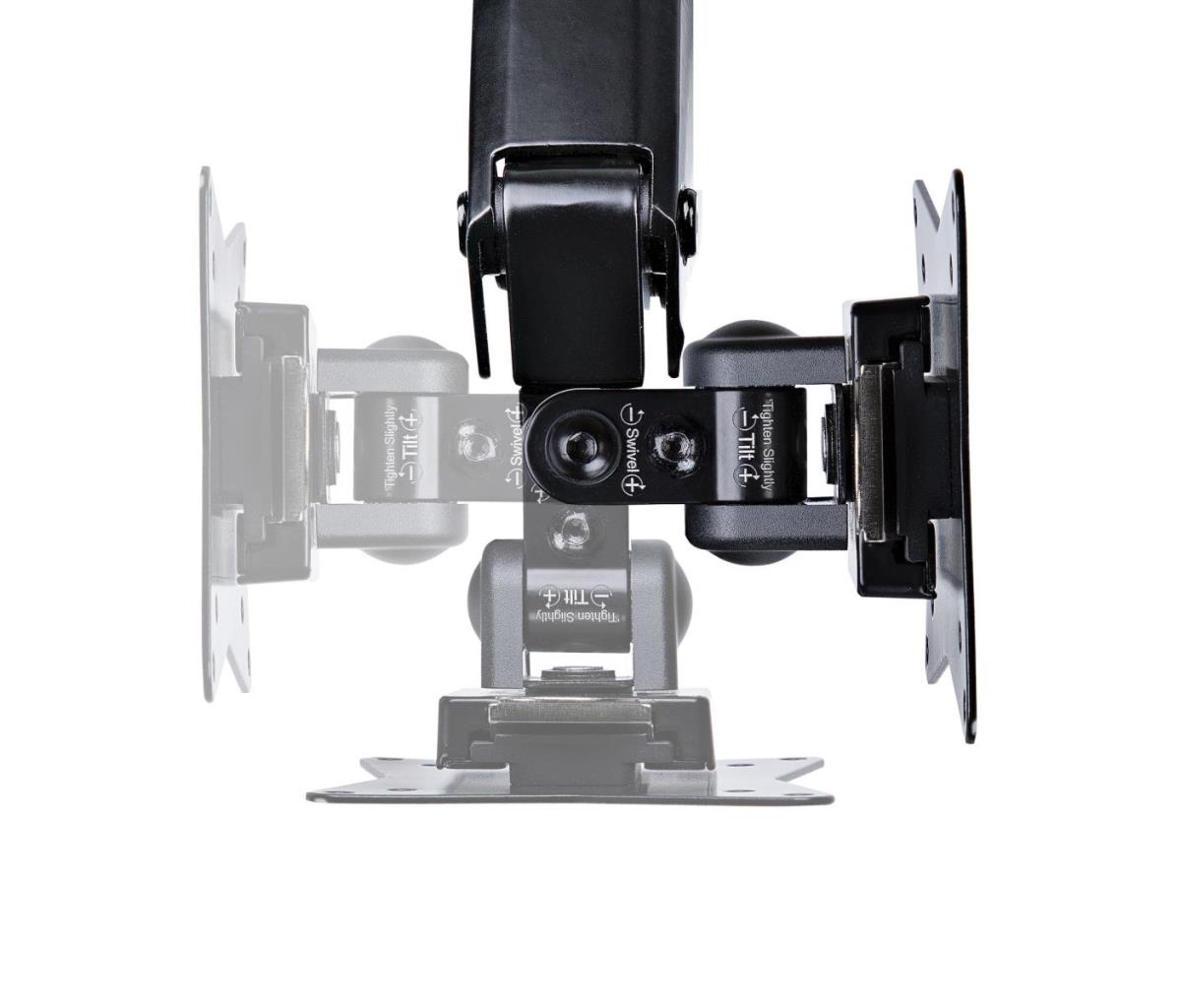

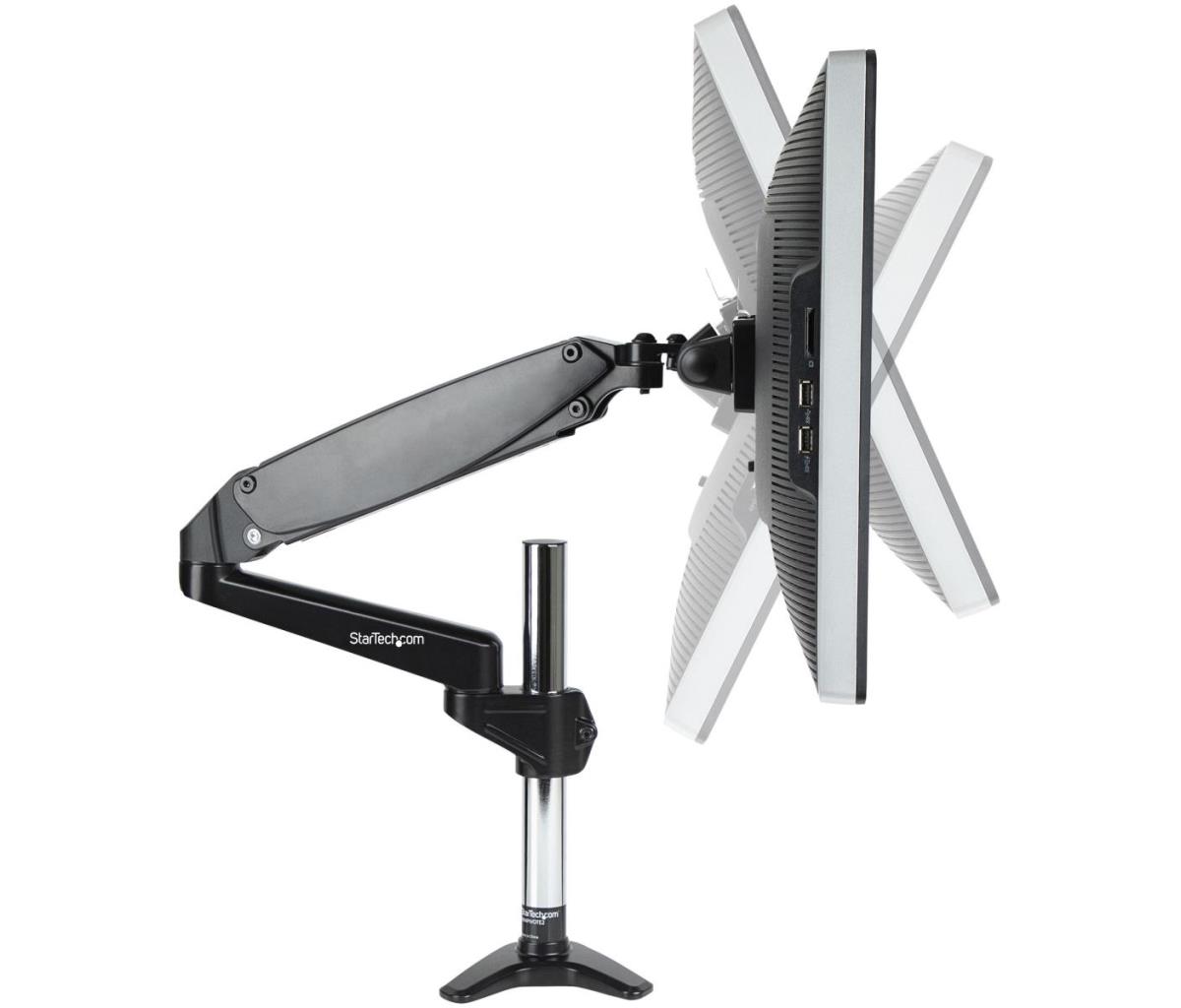

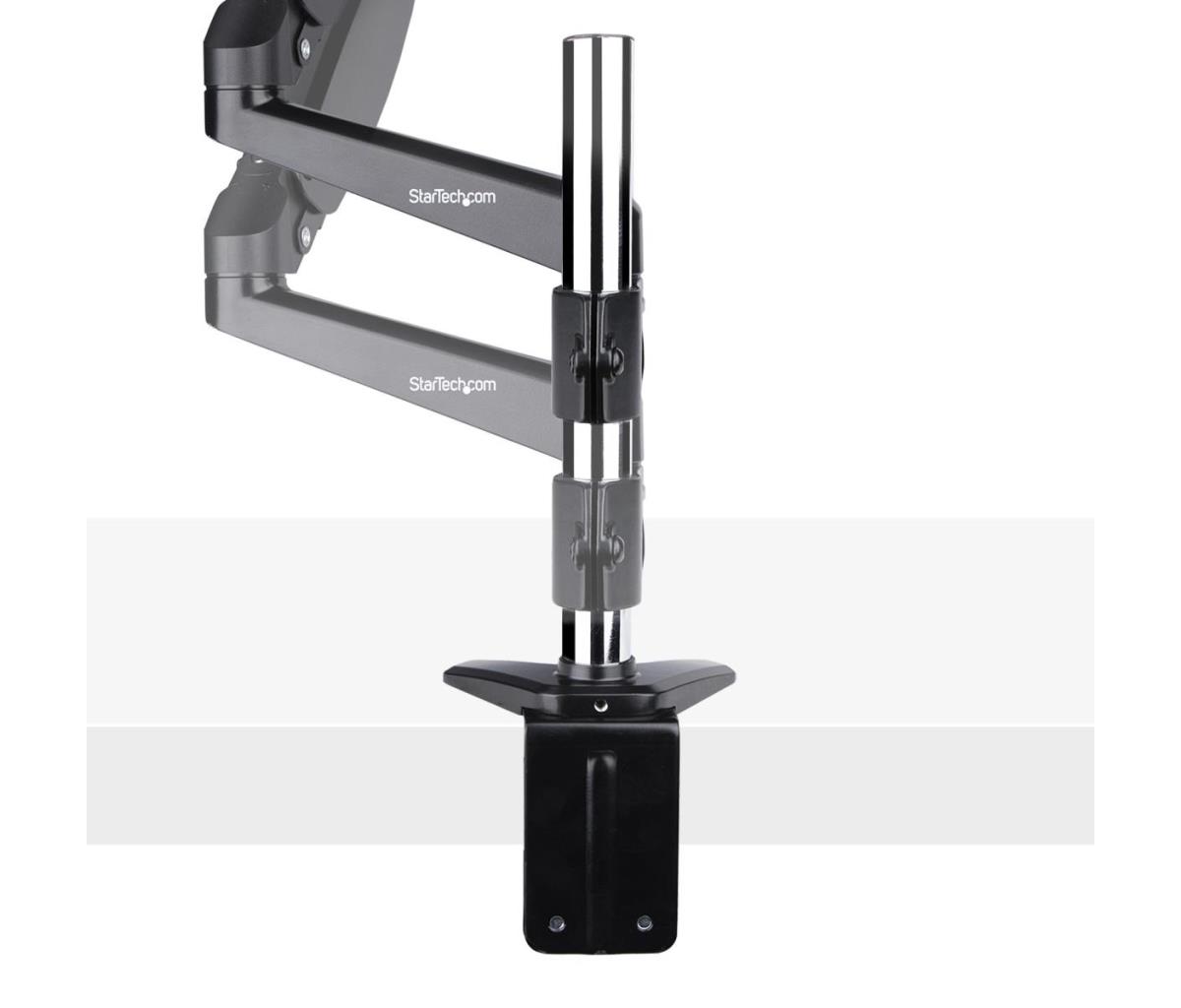

Setup an ergonomic work environment and reclaim valuable workspace on your desk. The adjustable monitor mount lets you extend the arm a full 23.2" (590mm) from the pole. The full motion arm moves freely provides a wide range of motion across multiple axes. You can tilt the monitor +90/-85 degrees, swivel +90/-90 degrees, and even rotate 360 degrees, to find the ideal viewing angle. Switch back and forth from landscape to portrait orientation at any time. Featuring spring-assisted height adjustment, the display mount lets you raise or lower your monitor up to 13.4" (341mm) with smooth, and effortless positioning by hand. Additional adjustments with the included tools allow you to raise the monitor arm along the pole for a maximum height of 24" (610 mm) from the mounting surface.

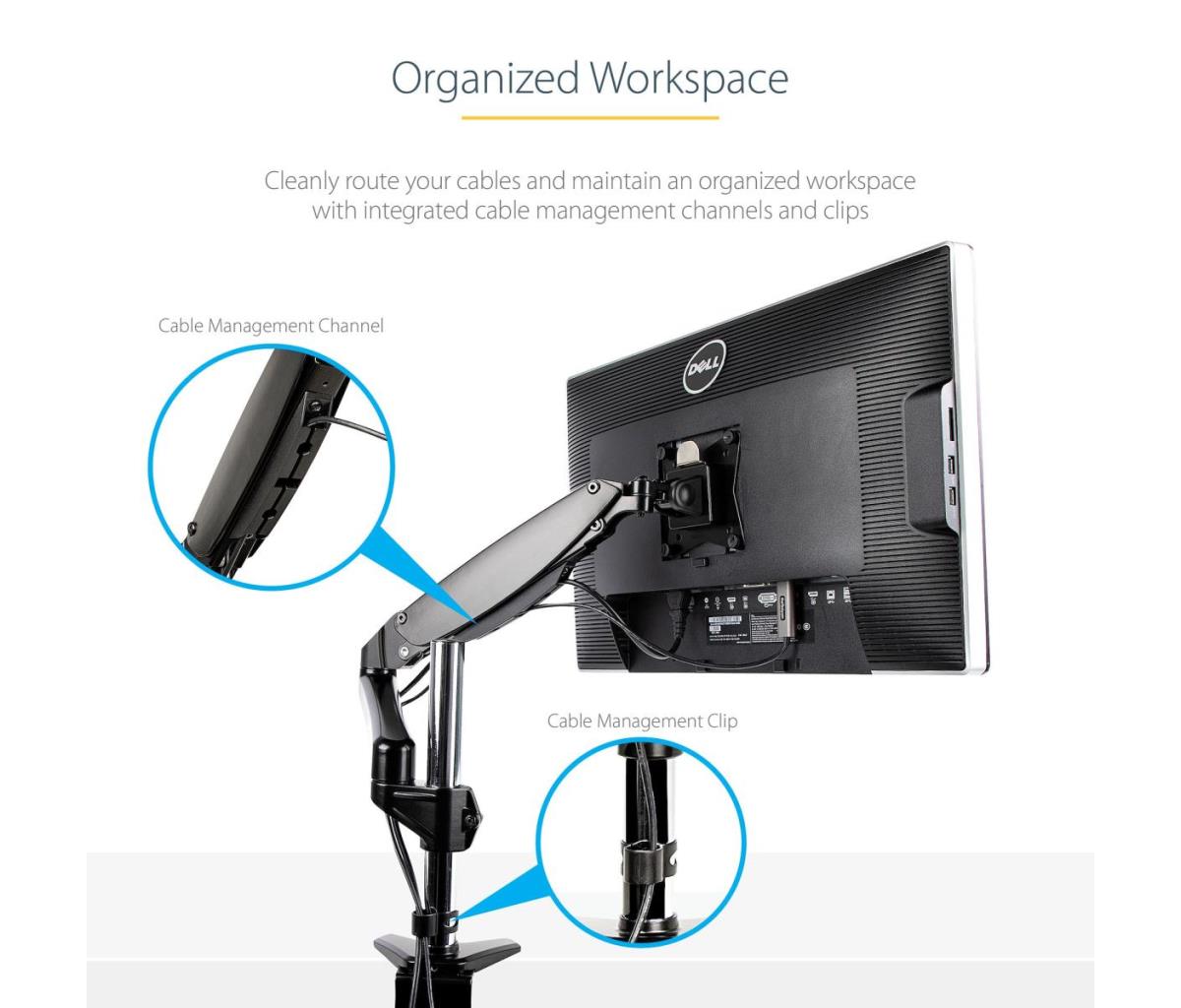

Organized Workspace

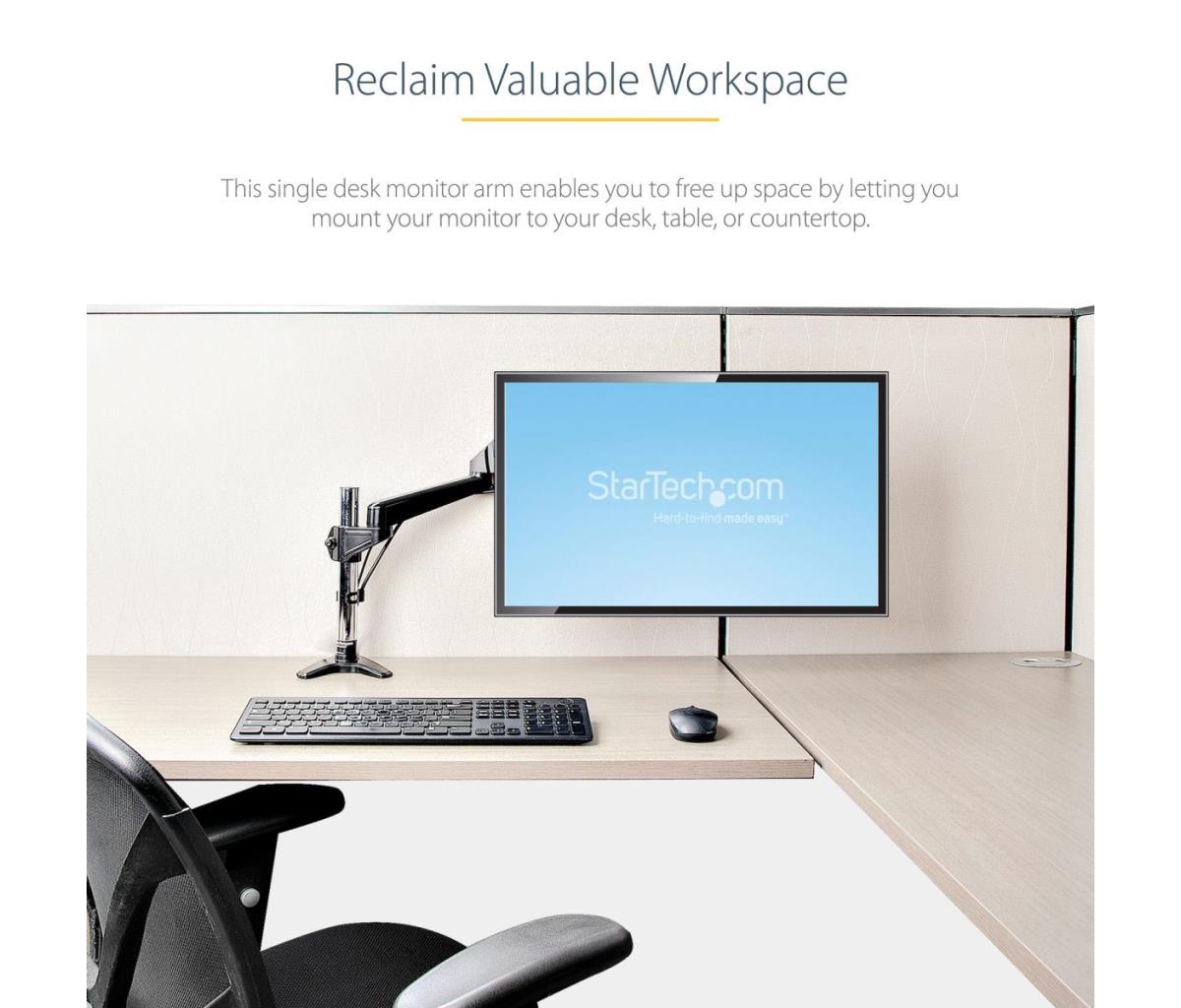

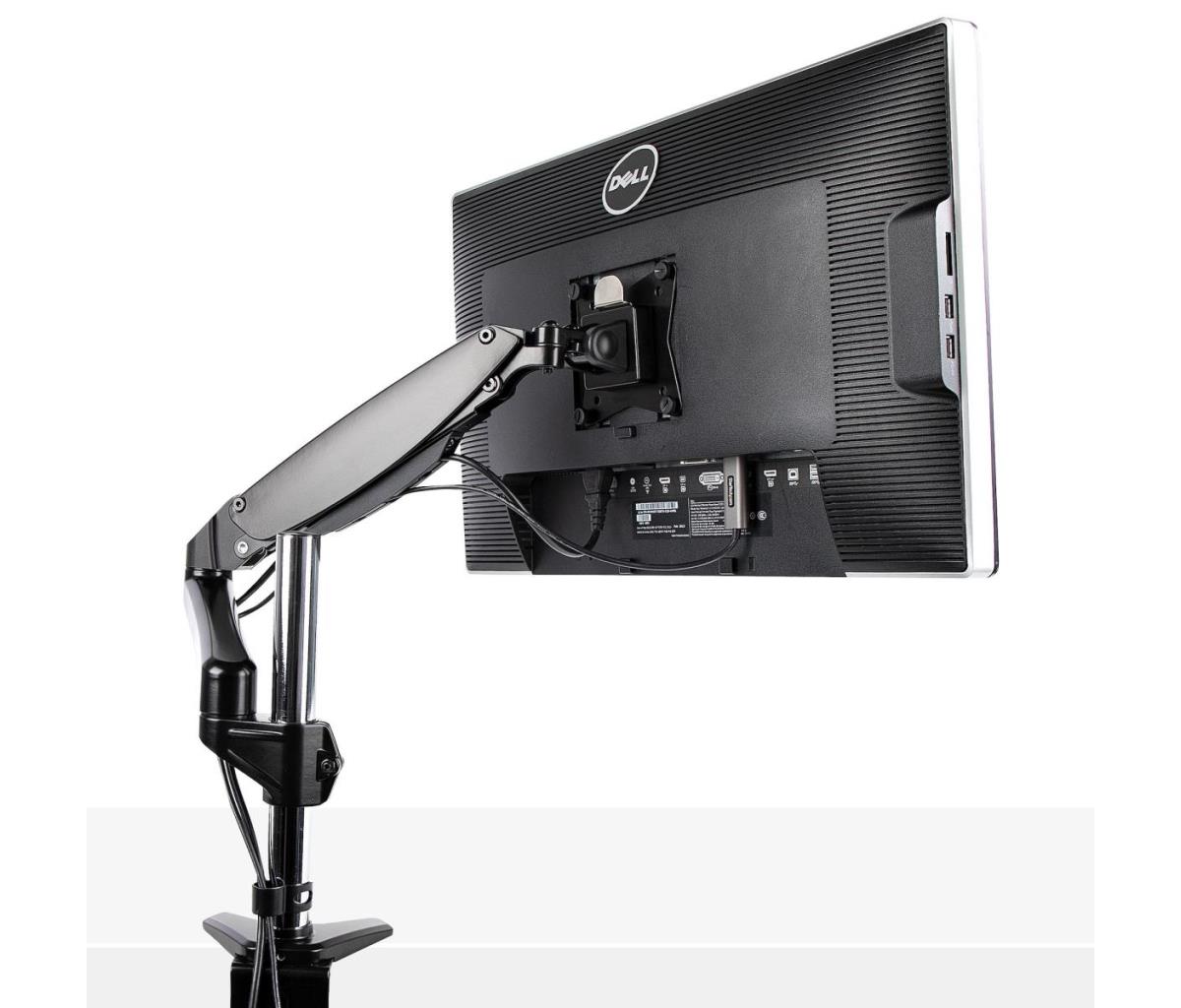

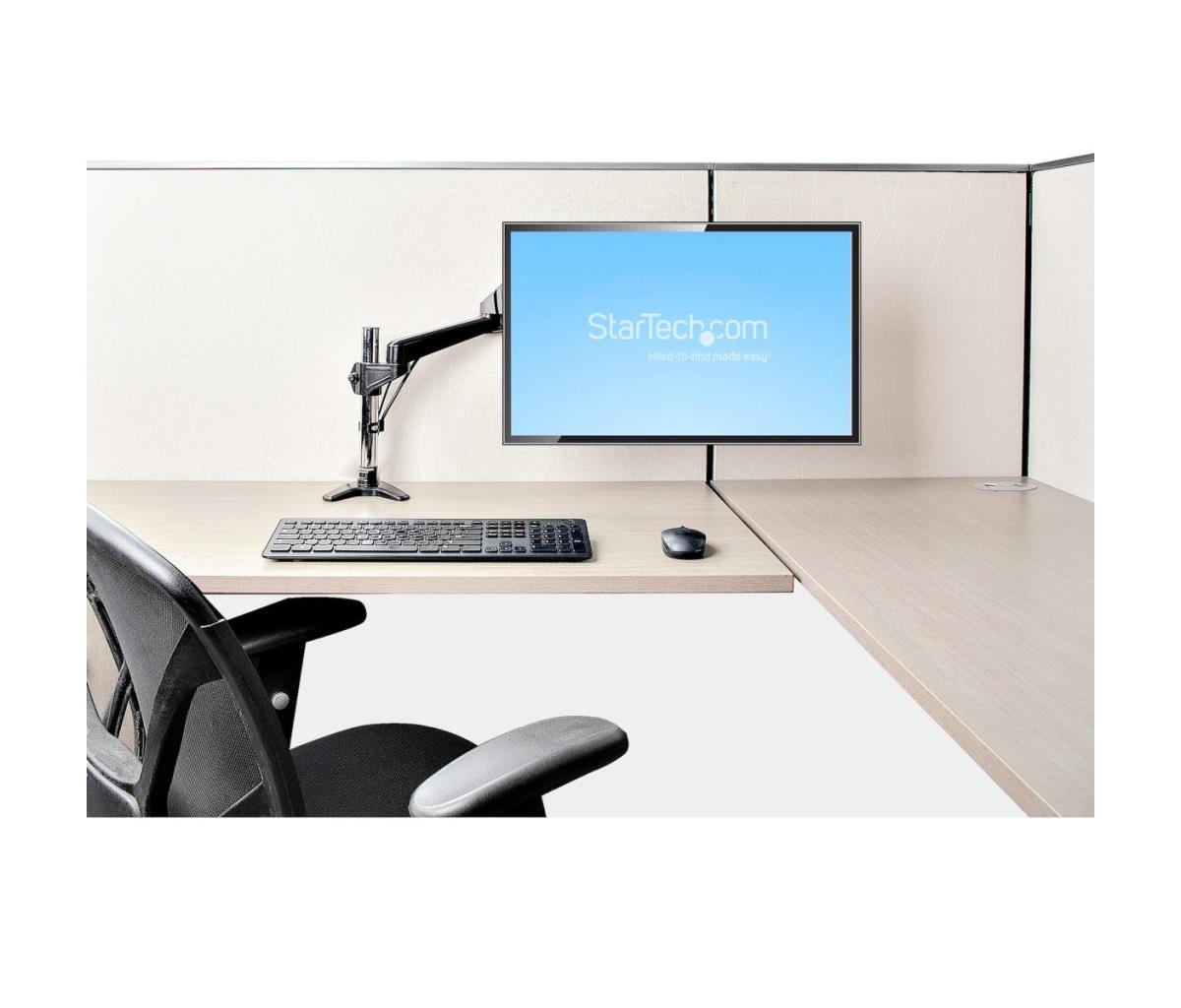

This single desk monitor arm enables you to free up space by letting you mount your monitor to your desk, table, or countertop. In addition, it features integrated cable management channels along the arm, and cable management clips to route your cables and maintain an organized and professional look on your workstation.
Easy Installation

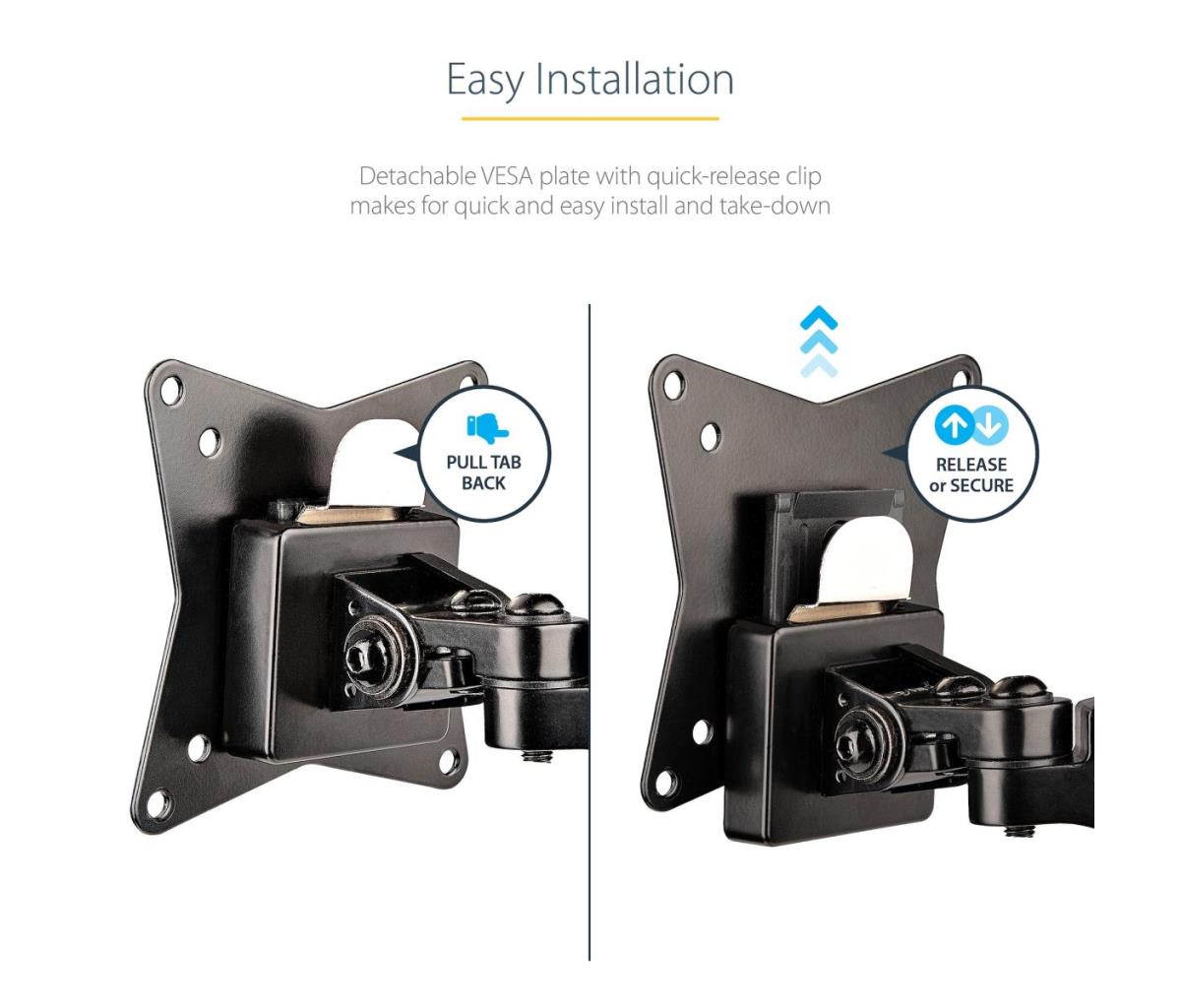

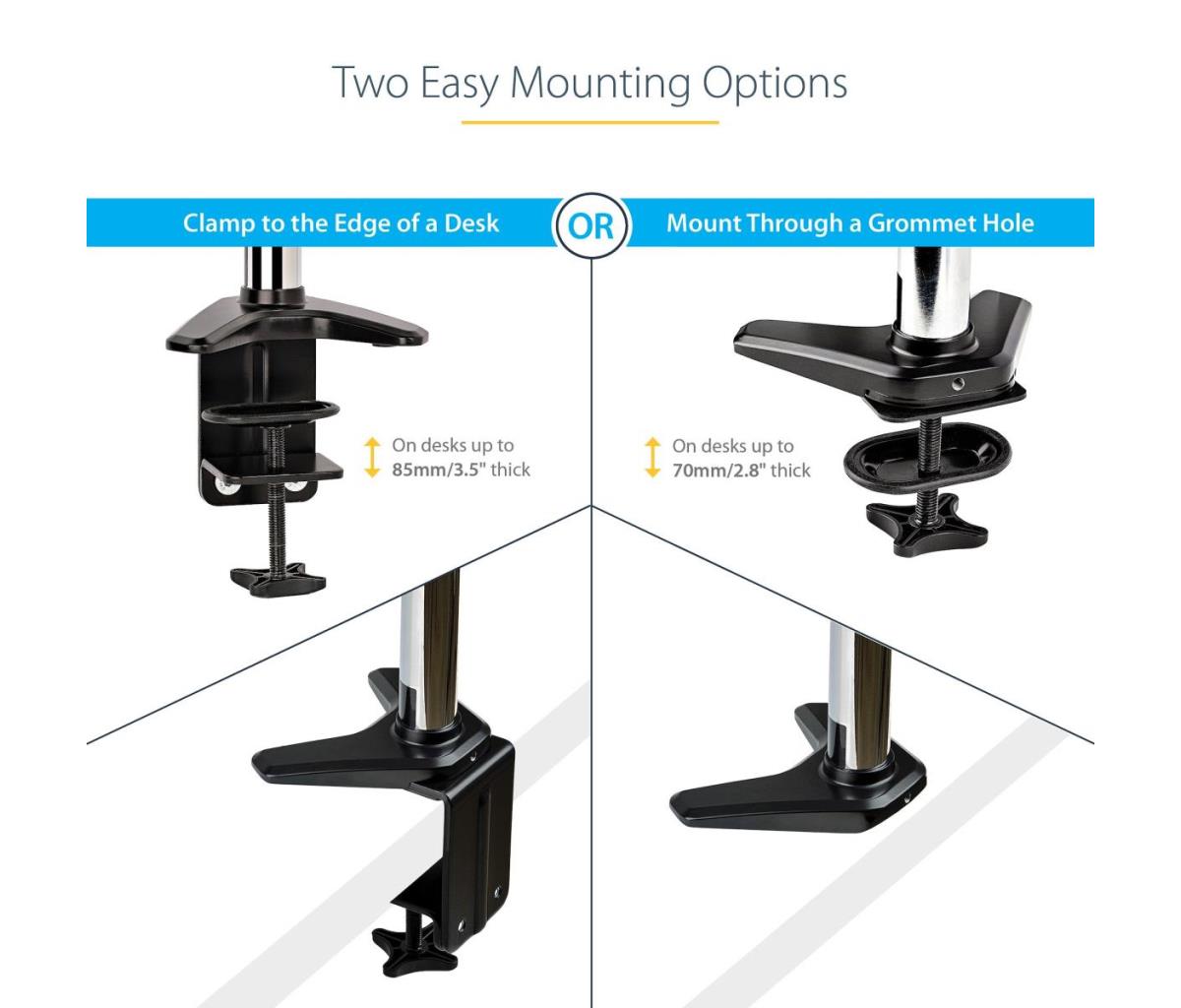

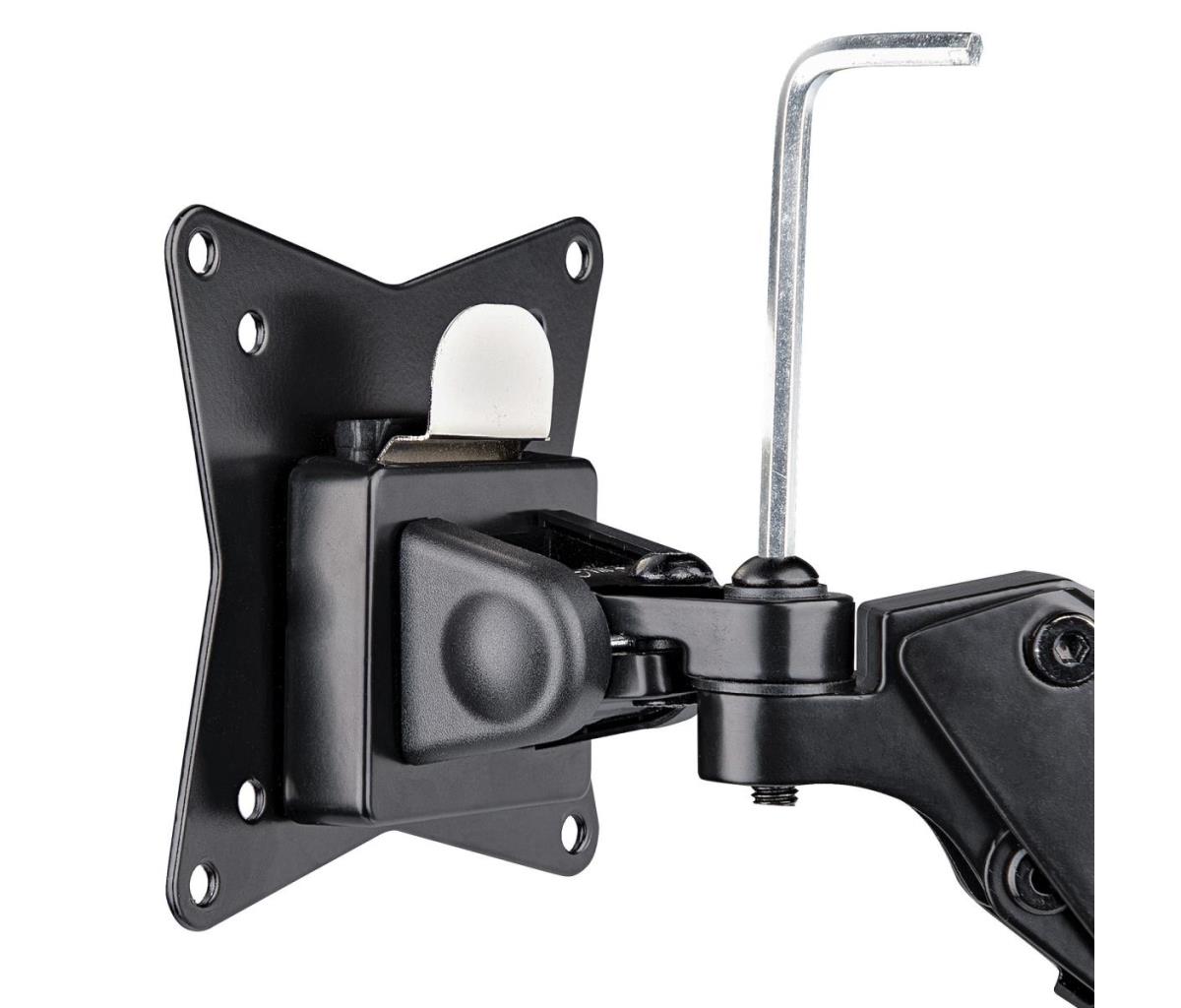

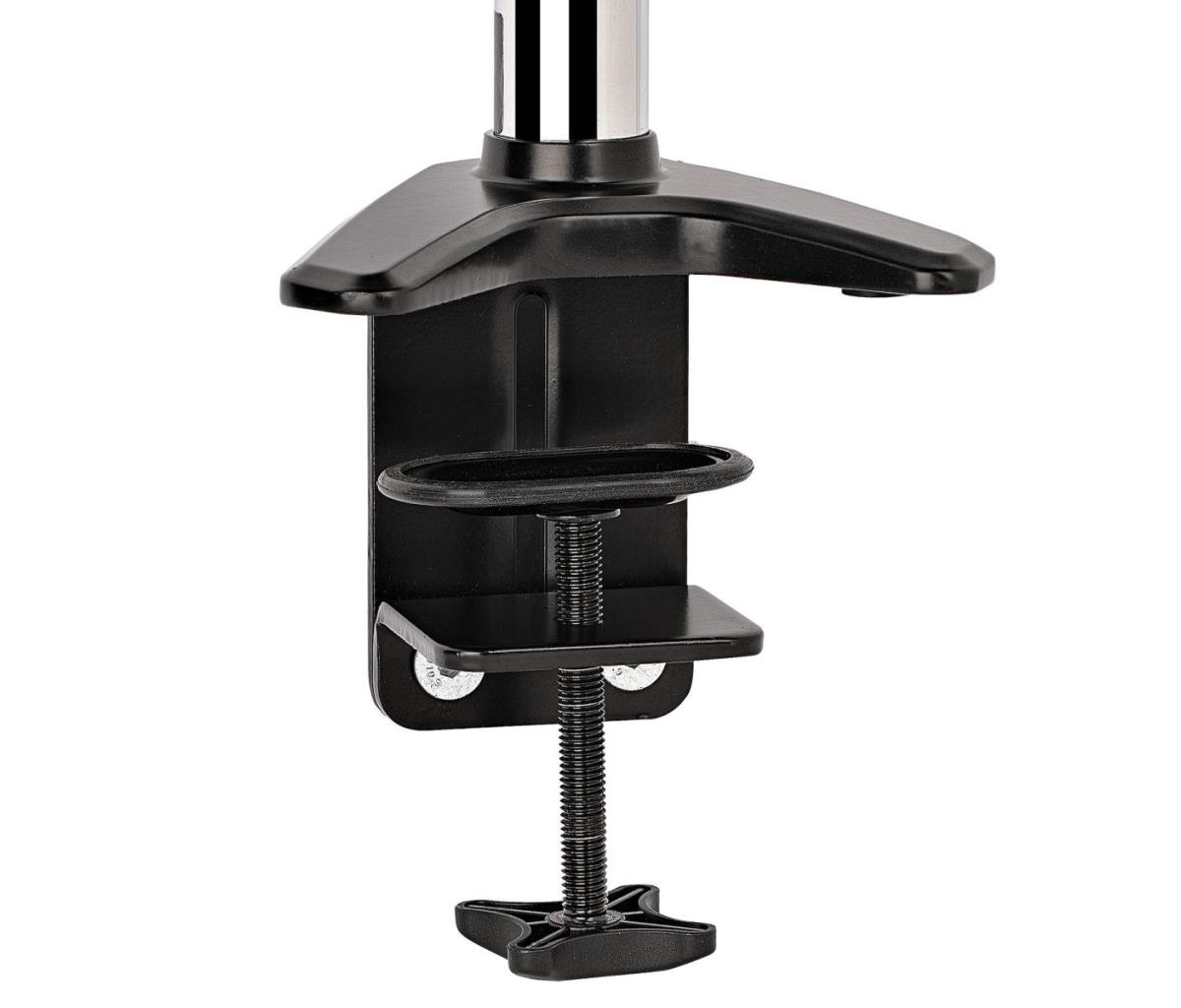

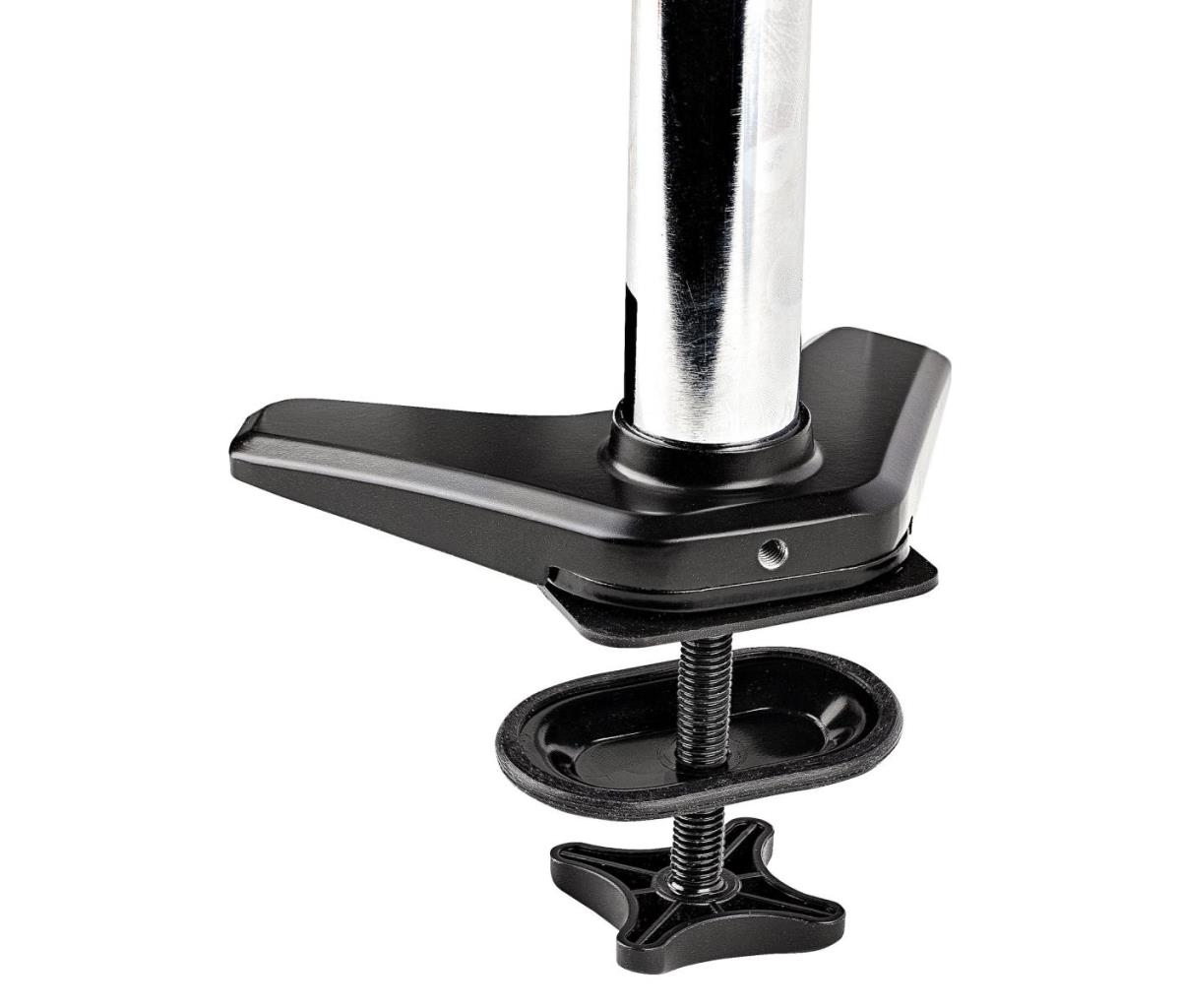

With the detachable VESA plates with quick-release clips, you can mount your display to the mount with ease. Either clamp the mount to the side of a desk up to 85mm thick, table or mount it through a grommet hole on desks up to 70mm thick.
| Mounting | |
| Maximum weight capacity | 8 kg |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Maximum screen size | 124.5 cm (49") |
| Mounting | Clamp |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Desk thickness (min) | 0 mm |
| Desk thickness (max) | 8.5 cm |
| Ergonomics | |
| Tilt angle range | -85 - 90ø |
| Swivel angle range | -90 - 90ø |
| Angle of rotation | 360ø |
| Cable management | Yes |
| Design | |
| Product colour | Black |
| Anti-theft function | No |
| Weight & dimensions | |
| Width | 290 mm |
| Depth | 485 mm |
| Height | 140 mm |
| Weight | 4.2 kg |
| Packaging data | |
| Package width | 516 mm |
| Package depth | 291 mm |
| Package height | 151 mm |
| Package weight | 4.2 kg |

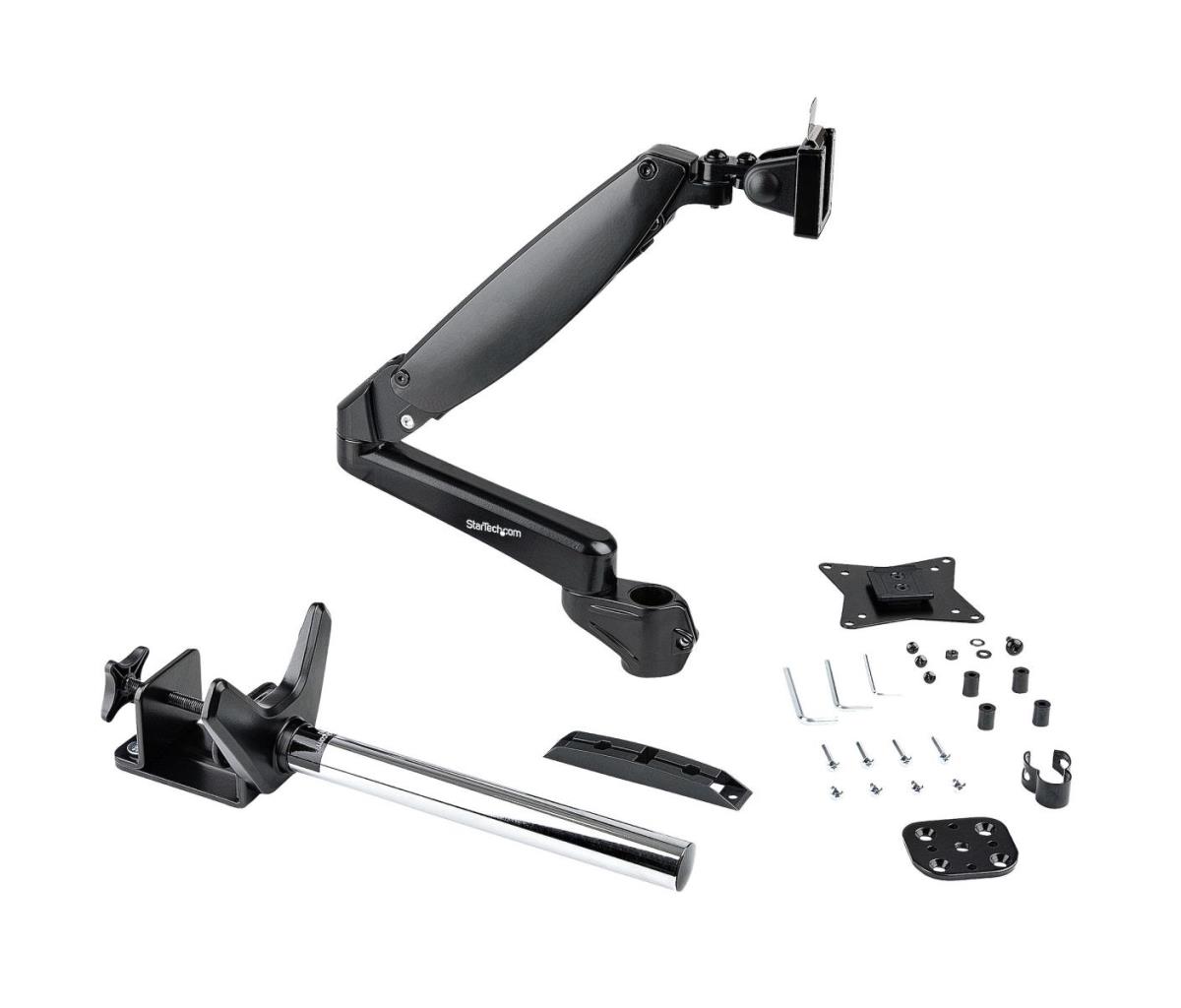

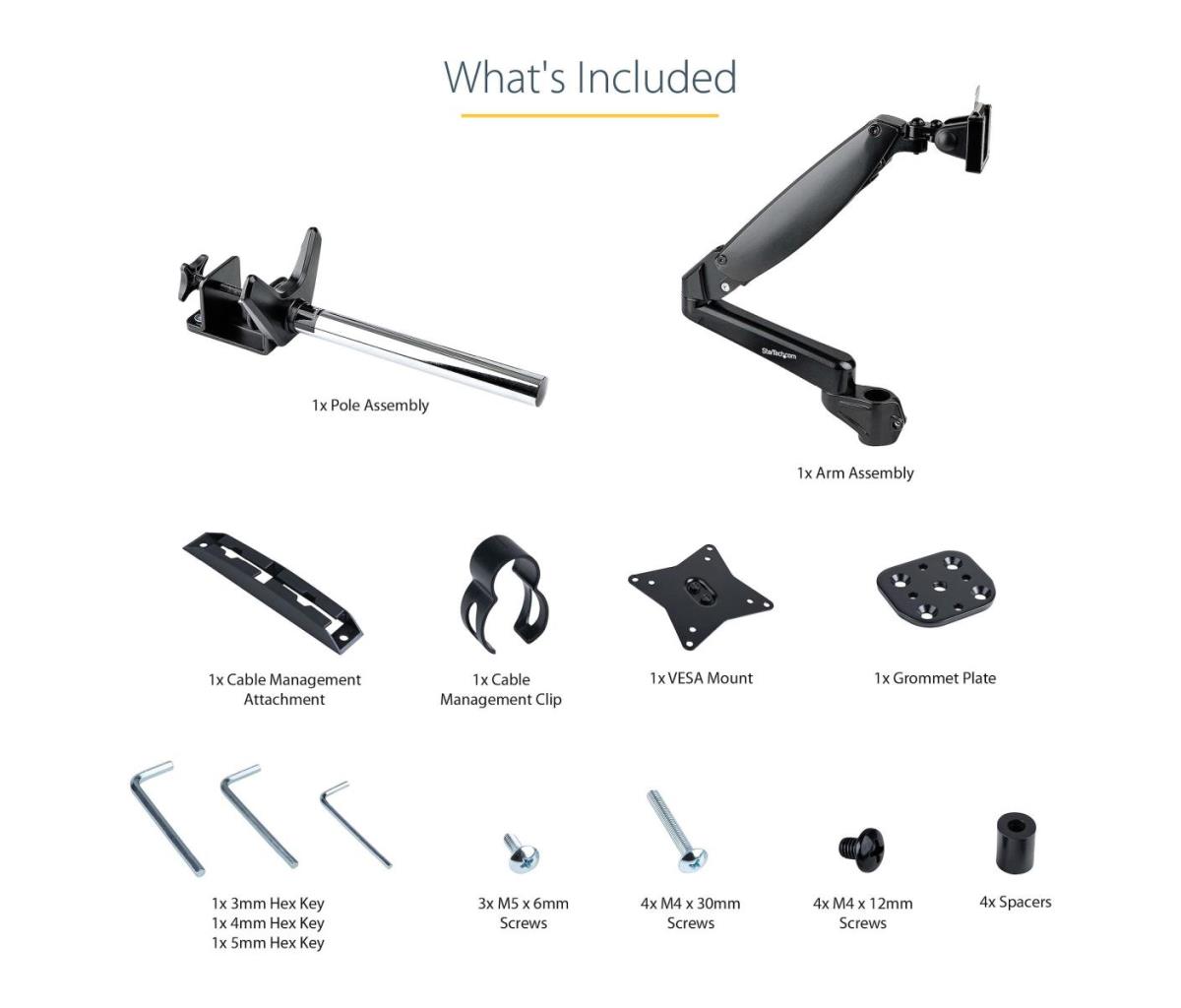

| Packaging content | |
| Wrench type | Hexagonal wrench |
| VESA mount included | Yes |
| Number of cable clips | 1 |
| Screws included | Yes |
| Number of screws | 11 |
| Number of spacers included | 4 |
| Grommet plate included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 534 mm |
| Master (outer) case length | 305 mm |
| Master (outer) case height | 317 mm |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Warranty | |
| Base Warranty | Non Non |
