Charging Station - 10-port USB-c 350w
ITCurry #: 7564C406 | Article #: 10E-CHARGING-STATION-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

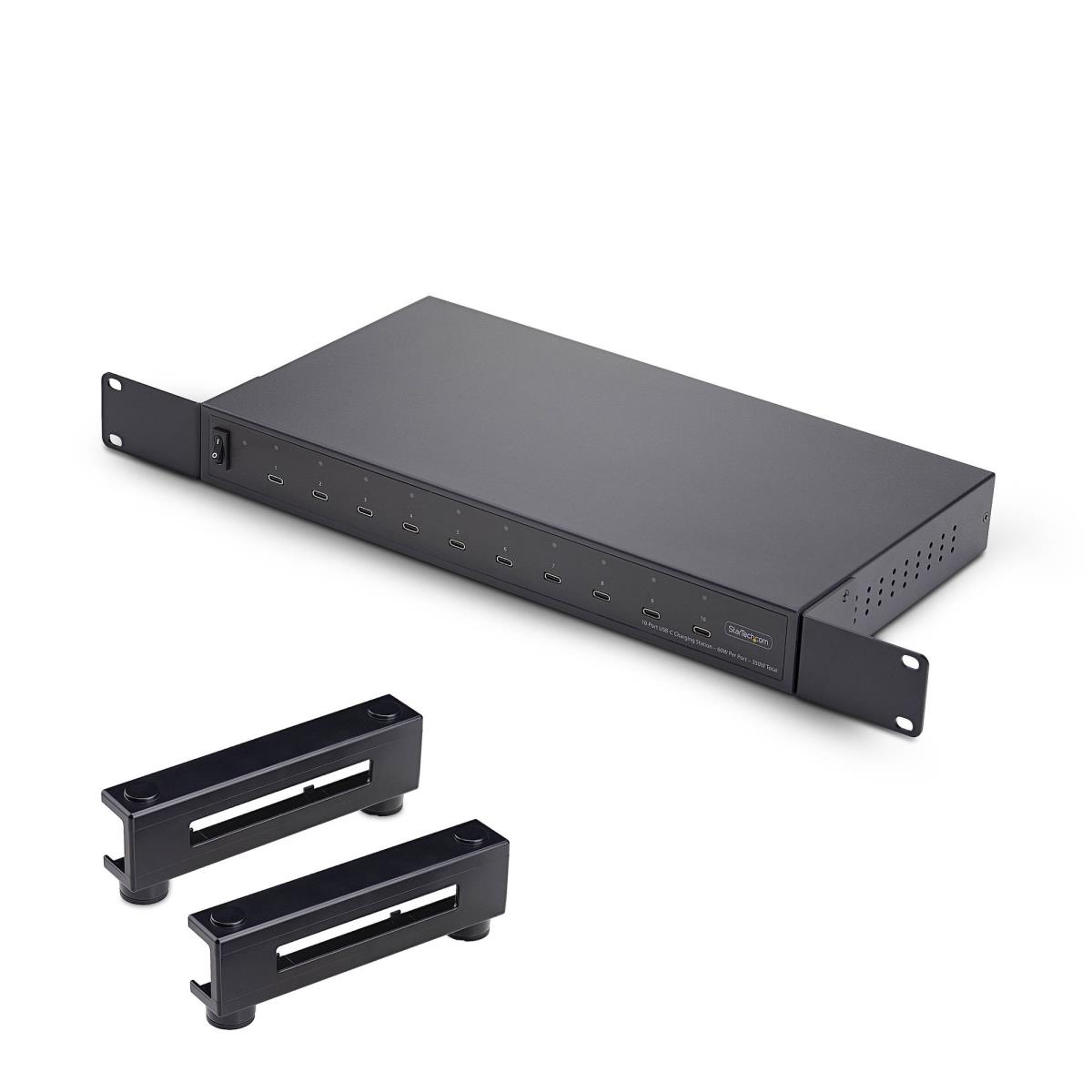

Simultaneously charge up to 10 USB-C devices with this 350W desktop or rackmount charging station
The 10-Port USB-C Charging Hub delivers fast, efficient charging for laptops, tablets, and mobile devices, making it ideal for offices, classrooms, and IT labs.
Smart Power Distribution
Each of the 10 USB-C ports provides up to 60W, with a total output of 350W that dynamically adjusts in real time to meet varying device needs. Its smart power allocation technology prioritizes active ports requiring higher output while reducing power to idle ports, and supports PPS (3.3-21V?3.0A) for safe, rapid USB-C charging.
Flexible Mounting & Scalable Design
Designed for flexibility, the hub includes rack-mounting ears for 19-inch server racks as well as rubber-gripped feet for secure desktop use. Its stackable design allows multiple units to be layered neatly, expanding charging capacity without adding clutter.
Active Cooling & Safety Compliance
A built-in fan ensures active cooling during continuous, high-load operation, while charging status LEDs on each port provide at a glance visual charging status. The charging hub is TUV SUD certified and compliant with USB-IF, FCC, and CE standards, and includes overcurrent and short-circuit protection.
| Performance | |
| Charger compatibility | Universal |
| Power source type | AC |
| USB Type-C ports quantity | 10 |
| Fast charging | Yes |
| Fast charging technology | Power Delivery 3.0, Programmable Power Supply (PPS) |
| Charger type | Indoor |
| Number of simultaneously connected devices (max) | 10 |
| Programmable power supply (PPS) | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| Power protection features | Over current, Short circuit |
| Cooling fan | Yes |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 10 A |
| Maximum power | 350 W |
| Maximum output voltage | 20 V |
| Minimum output voltage | 5 V |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output current (12V) | 3 A |
| Output current (15V) | 3 A |
| Output current (20V) | 3 A |
| Packaging data | |
| Package width | 258 mm |
| Package depth | 560 mm |
| Package height | 83 mm |
| Package weight | 3.7 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Cables included | AC |
| Included power plug types | EU |
| Screws included | Yes |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), PSE, RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 14.2 mm |
| Master (outer) case length | 575 mm |
| Master (outer) case height | 277 mm |
| Products per master (outer) case | 4 pc(s) |
| Other features | |
| AC outlets quantity | 1 AC outlet(s) |
| Warranty | |
| Base Warranty | Non Non |
