Active USB-c Cable USB 3.2 10 Gbps
ITCurry #: 7564A870 | Article #: UCC-3M-10G-USB-CABLE-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Experience full-featured USB-C and 8K video at distances up to 3m using this active USB-C cable

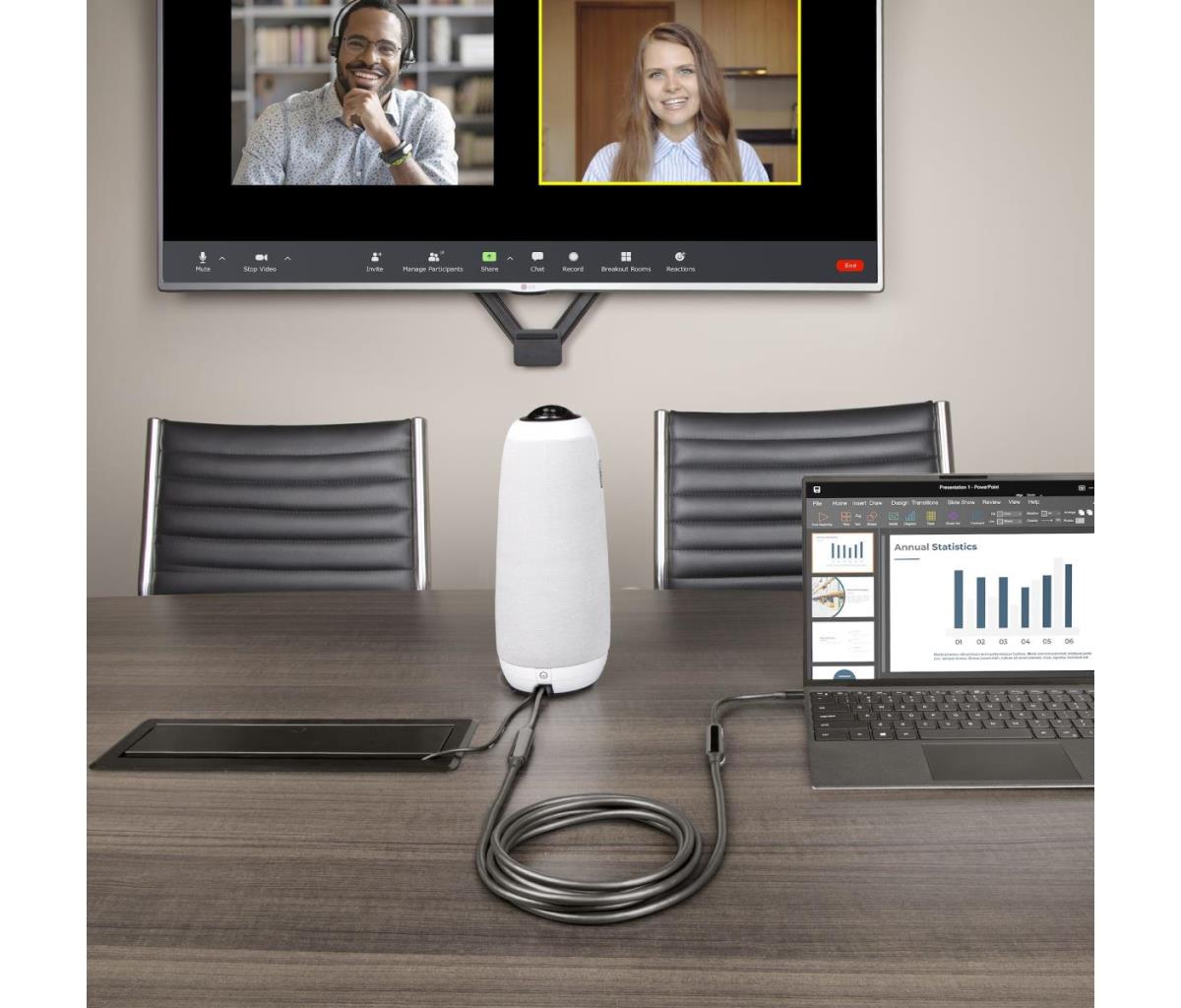

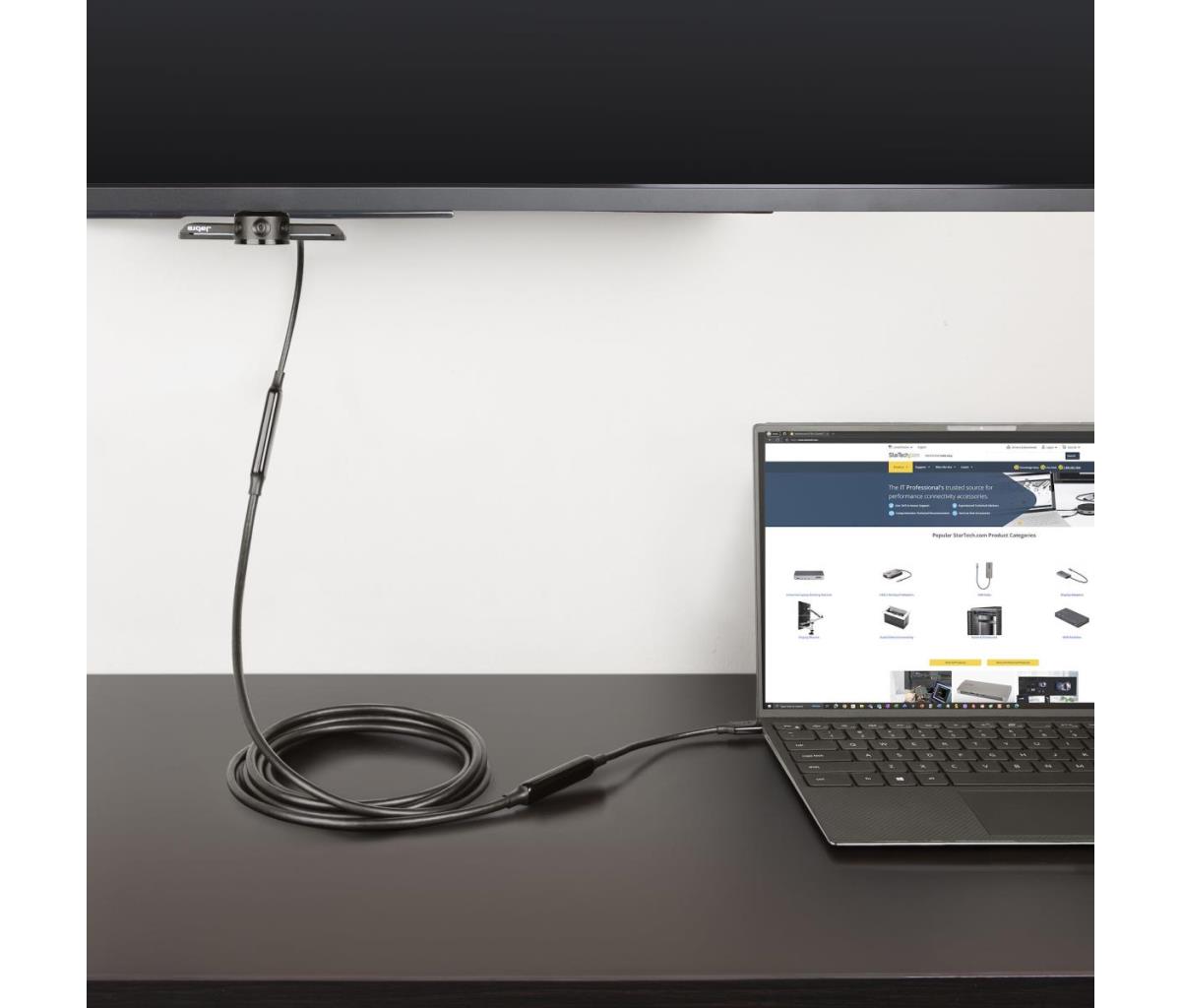

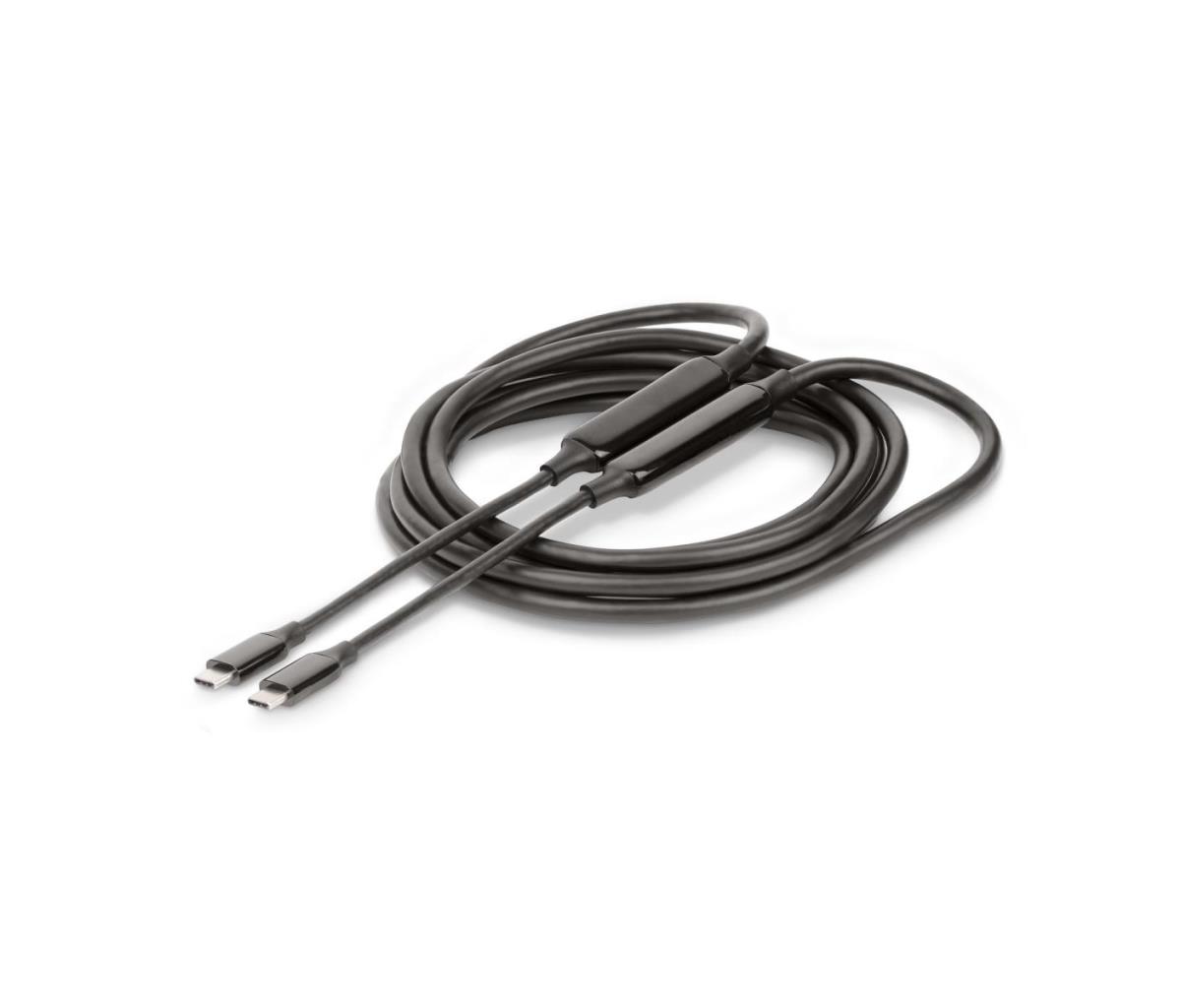

Connect USB 10Gbps source and peripheral devices using this 9.8ft (3m) Active USB Type-C Cable. This cable is ideal for setups requiring full-featured USB-C and DP 1.4 support, such as large UHD displays/video walls, and boardroom/conference room cameras.
Versatile Compatibility

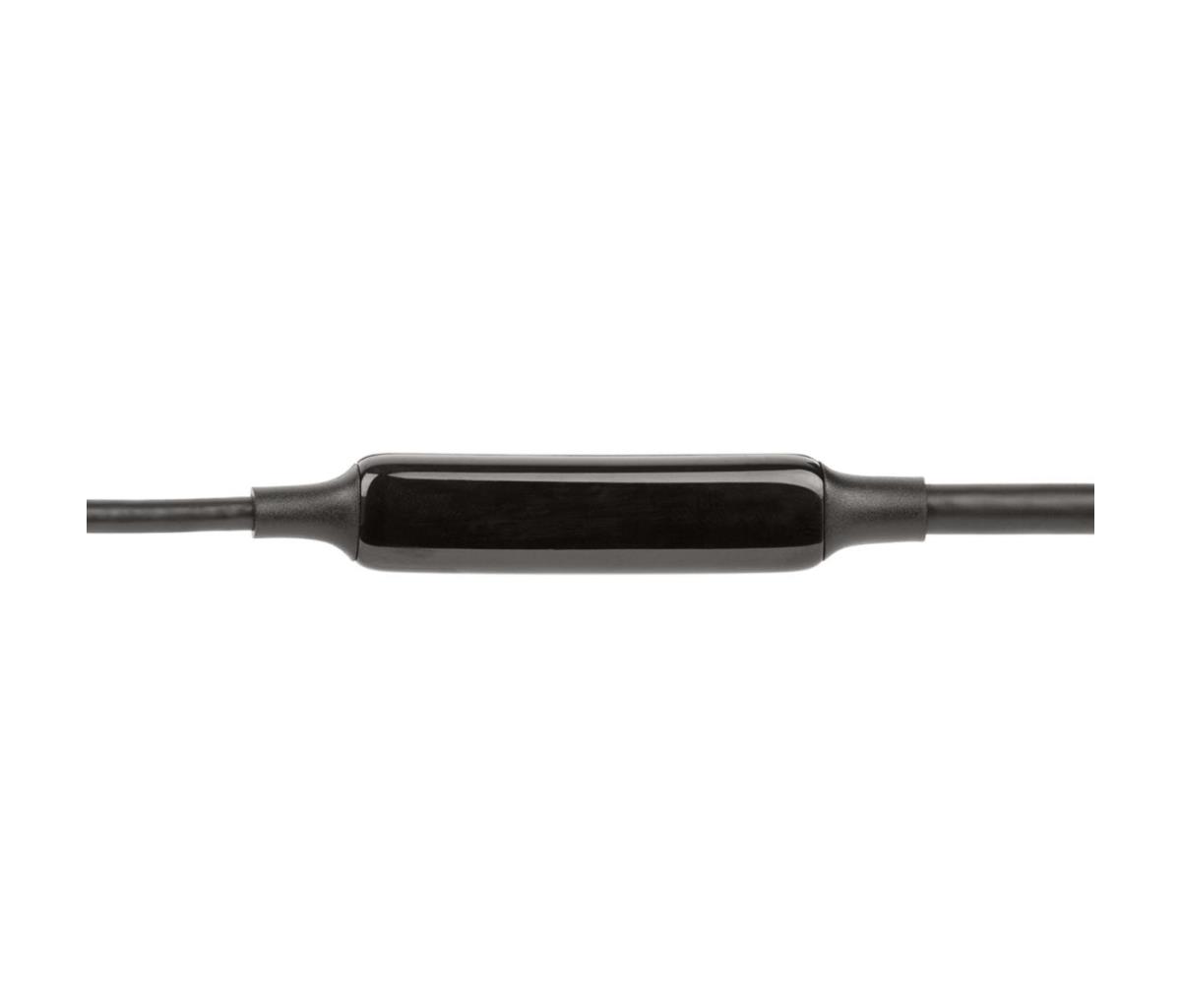

The USB-C to C cable enables universal compatibility with USB 3.2, USB 3.0, and USB-C devices. An integrated active chipset facilitates bi-directional connectivity for convenient setup, and supports up to 10Gbps throughput without additional power or signal boosters.
Experience 8K Video with DisplayPort 1.4 Alt Mode
The Active USB-C cable supports up to 8K 60Hz or 4K 144Hz video over DisplayPort 1.4 Alt Mode with HBR3, HDR10, MST, DSC 1.2, and HDCP 2.2. It is backward compatible with DP 1.3/1.2 resolutions, including 4K 60Hz, 1440p, and 1080p.
Full-Featured USB-C Power and Data
The long Active USB-C Cable supports a data bandwidth of up to 10 Gbps. A certified E-marker chip ensures consistent Power Delivery of up to 60W. Dock and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface using a single USB-C connection that extends beyond the length of passive cables.
| Features | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |

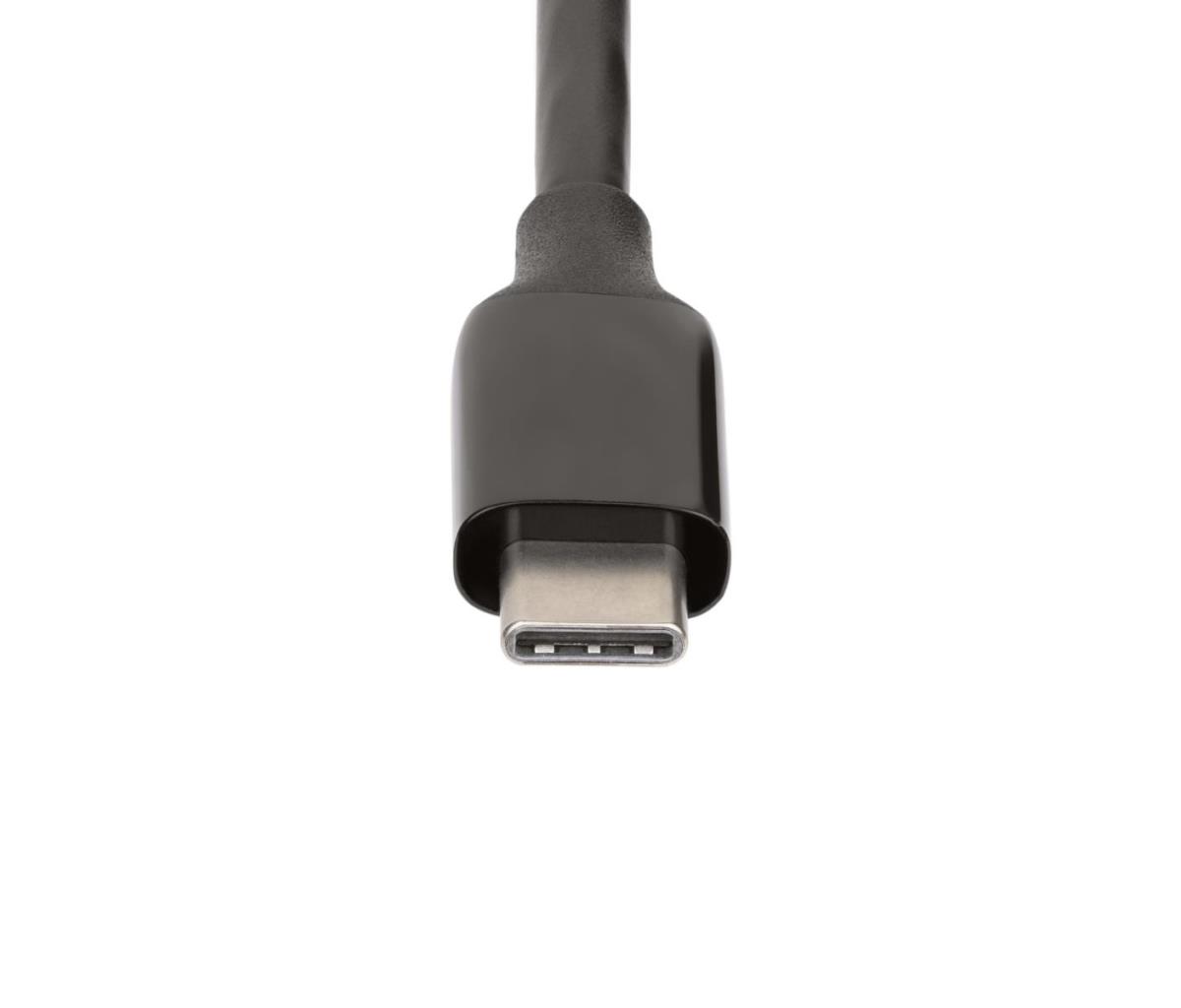

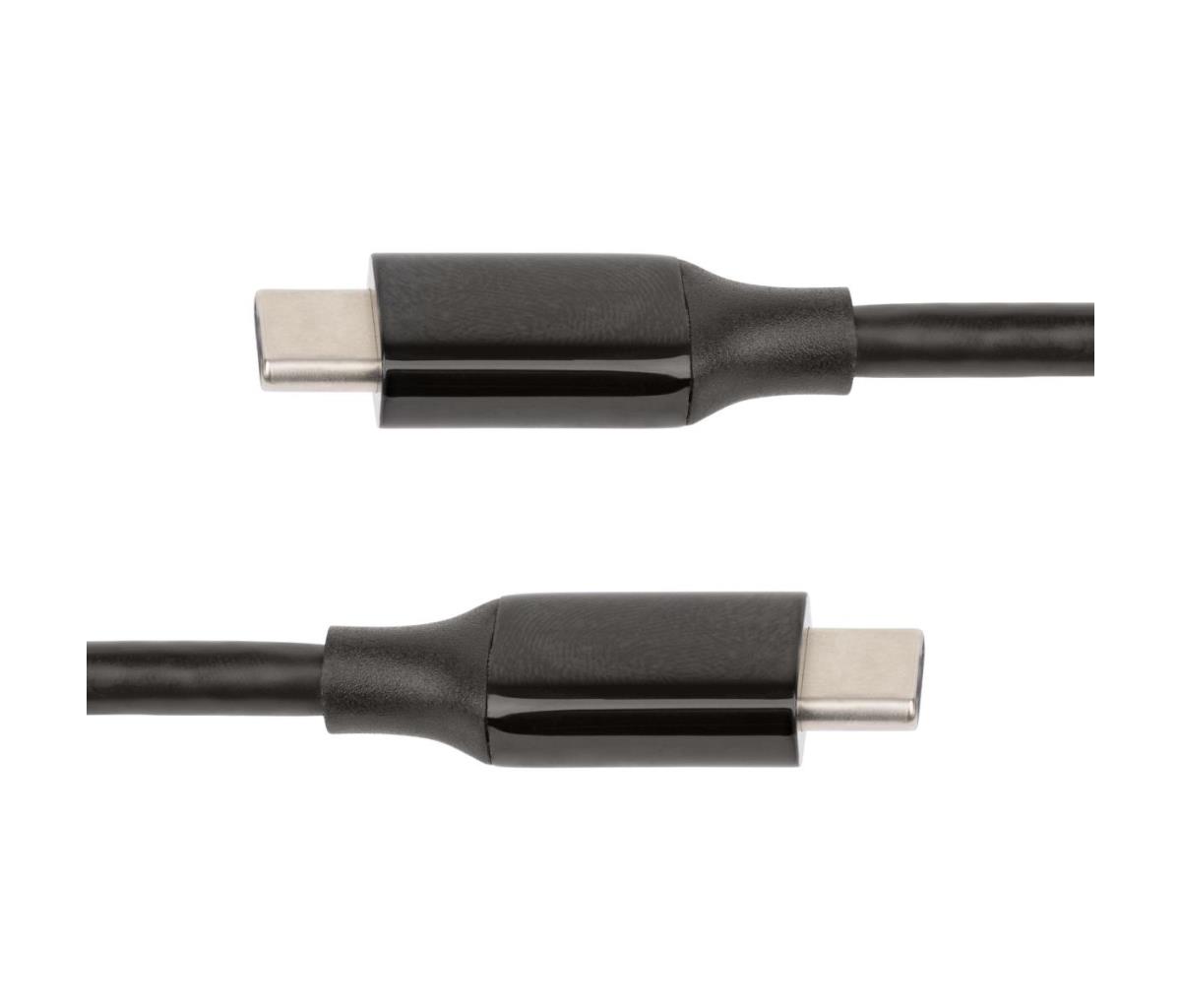

| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |

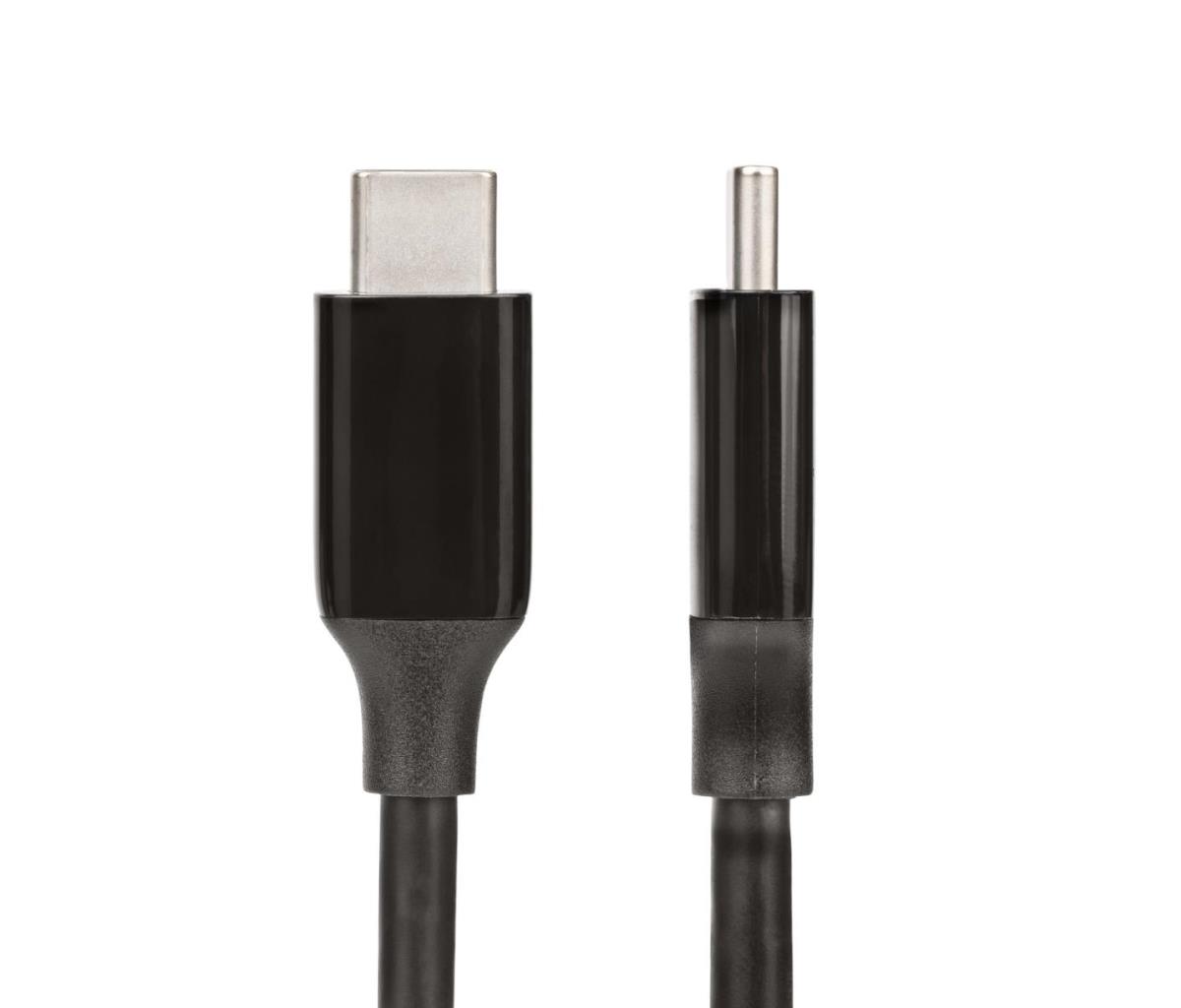

| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 29 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Aluminum mylar foil |
| Maximum data transfer rate | 10000 Mbit/s |
| Maximum data transfer rate | 10 Gbit/s |
| Plug and Play | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| Product colour | Black |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 240 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| HDCP | Yes |
| HDCP version | 2.2 |
| Weight & dimensions | |
| Cable length | 3 m |
| Cable diameter | 6.2 mm |
| Weight | 400 g |
| Packaging data | |
| Package width | 198 mm |
| Package depth | 148 mm |
| Package height | 41 mm |
| Package weight | 195 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 518 mm |
| Master (outer) case length | 341 mm |
| Master (outer) case height | 216 mm |
| Warranty | |
| Base Warranty | Non Non |
