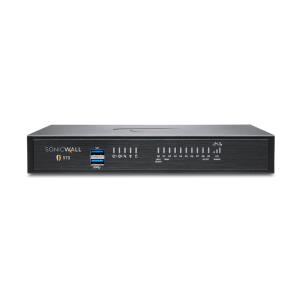

Tz570 Network Security Appliance Wireless-ac Intl
ITCurry #: 11518307 | Article #: 02-SSC-5656-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
TZ SERIES
NEXT-GENERATION FIREWALL (NGFW)
Protect your small business or branch location from intrusion, malware and ransomware with an easy-to-use, integrated security solution designed specifically for your needs. SonicWall TZ firewalls deliver enterprise-grade protection without the cost or complexity.
In an era of the ever-evolving security landscape, small- and medium-sized businesses (SMB) face large challenges when it comes to defending their networks, data and reputation. Keeping up with changes in technology can be as difficult as tracking the growing number of threats.
The SonicWall TZ series of firewalls is designed specifically for the needs of SMBs and branch locations, delivering enterprise-class security without the enterprise-grade complexity.
With Zero-Touch Deployment and simplified centralized management, installation and operation is easy. Detect sophisticated threats, including encrypted attacks, with advanced networking and security features, like the multi-engine Capture Advanced Threat Protection (ATP) cloud-based sandbox service with patent-pending Real-Time Deep Memory Inspection (RTDMI™). With optional features like PoE/PoE+ support and 802.11ac Wi-Fi, create a unified security solution for wired and wireless networks.
Simply plug in and enjoy the advanced protection of the cost-effective SonicWall TZ series firewall without worrying about complex management — or the next threat.
| Data transmission | |
| Firewall throughput | 4 Gbit/s |
| IPSec VPN throughput | 1.8 Gbit/s |
| IPS/IDS throughput | 2500 Mbit/s |
| SSL inspection throughput | 750 Mbit/s |
| Maximum connections (DPI) | 400000 |
| Maximum connections (SPI) | 1250000 |
| Maximum firewall connections per second | 16000 |
| Performance | |
| Heat dissipation | 52.17 BTU/h |
| Certification | FCC Class B, FCC P15C, FCC P15E, ICES Class B, ISED/IC, CE (RED, RoHS),C-Tick, VCCI Class B, Japan Wireless, UL/cUL, TUV GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, NCC (TW) KCC/MSIP, SRRC, ANATEL |
| Network | |
| Wi-Fi | No |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
| VPN tunnels quantity | 200 |
| Local user database | 250 |
| Number of VLANs | 256 |
| DHCP server | Yes |
| Quality of Service (QoS) support | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Number of LAN Access Points (max) | 32 |
| Security | |
| Security algorithms | EAP-PEAP, EAP-TTLS, TKIP, WEP, WPA, WPA2 |
| Protocols | |
| Routing protocols | BGP, OSPF, RIP-1, RIP-2 |
| Management features | |
| LED indicators | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Gigabit Ethernet (copper) ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 8 |
| Ethernet LAN data rates | 1000,5000 Mbit/s |
| Console port | RJ-45 |
| Number of console ports | 1 |
| WAN connection | Mobile network (USB) |
| SFP+ module slots quantity | 2 |
| Storage | |
| Total storage capacity | 32 GB |
| Design | |
| Form factor | Desktop |
| Built-in display | No |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 15.3 W |
| Power supply | 60 W |
| Redundant power supply (RPS) support | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 225 mm |
| Depth | 150 mm |
| Height | 35 mm |
| Weight | 990 g |
| Other features | |
| Firewall throughput | 4000 Mbit/s |
| Warranty | |
| Base Warranty | Non Non |
