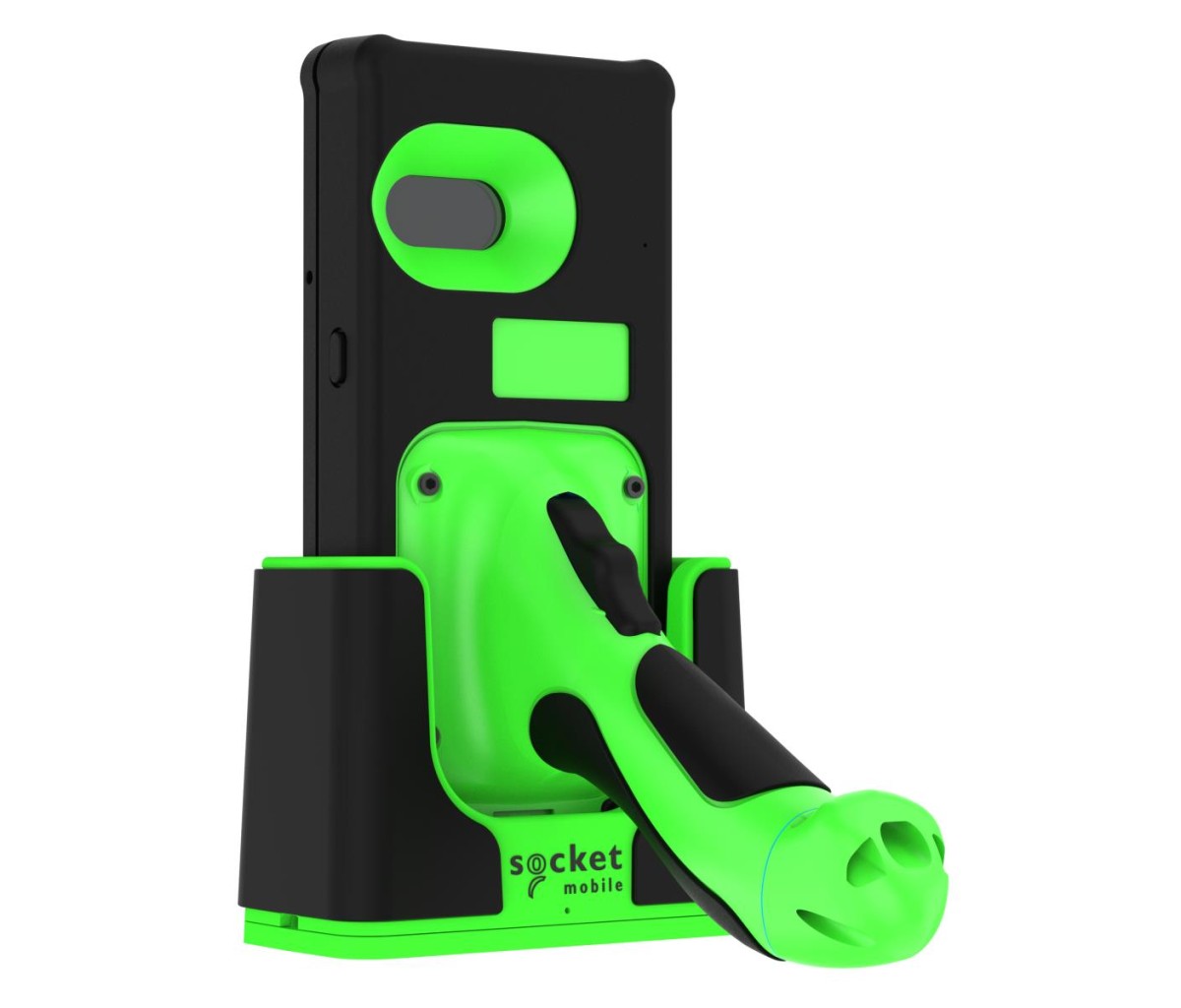

Unlock long-range scanning power in a compact, BYOD-friendly device built for single-handed operation. The XtremeScan Mag 663 is designed for mobile professionals who need industrial-grade performance without added bulk. Featuring a secure magnetic attachment system and streamlined design, this rugged data reader integrates with most mobile devices and delivers accurate 1D/2D barcode capture from up to 46 feet away.
The XtremeScan Mag 663 combines a powerful long-range barcode scanner with a secure magnetic mounting system, creating a rugged, high-performance solution for Bring Your Own Device (BYOD) operations. Designed for warehousing, logistics, manufacturing, and field service environments, the 663 allows employees to quickly attach and detach their mobile devices throughout the day—offering flexibility, convenience, and professional-grade scanning performance.
Equipped with a long-range 1D/2D scanning engine, the 663 reads barcodes from as far as 46 feet away, minimizing the need for repositioning or reaching hard-to-access areas. Whether scanning labels on high warehouse racks or asset tags at close range, the 663 provides fast, omnidirectional scanning with a high-precision aimer designed for accurate targeting in all lighting conditions.
Built with industrial-grade durability, the XtremeScan housing features IP67 sealing to protect against dust, water, and rough handling in demanding environments. Its compact form factor and ergonomic design ensure comfort during long shifts, while Bluetooth® LE connectivity enables smooth pairing with a wide range of mobile devices. The magnetic attachment system delivers a secure, convenient connection that keeps devices firmly in place during use, yet easy to remove when needed for other tasks.
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 93, Code 39, EAN-8, EAN-13, JAN-13, JAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, Interleaved 2 of 5, ISBT 128, Trioptic, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, DotCode, Grid Matrix Code, Han Xin, MaxiCode, MicroPDF417, Micro QR Code, PDF417, QR Code |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Tilt reading angle | 33.5 - 44.5ø |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth |
| Wireless range | 10 m |
| Bluetooth version | 2.1+EDR |
| Performance | |
| International Protection (IP) code | IP67 |
| Protection features | Drop resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Country of origin | China |
| Power | |
| Power source type | Battery |
| Charging port type | USB Type-C |
| Battery voltage | 3.7 V |
| Charging time | 7 h |
| Weight & dimensions | |
| Width | 91 mm |
| Depth | 91 mm |
| Height | 193.1 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 60% |
| Drop resistance | 3.1 m |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1200 mAh |
| Battery weight | 22 g |
| Battery capacity | 4.44 Wh |
| Rechargeable battery | Yes |
| Number of battery cells | 1 |
| Technical details | |
| Warranty period | 1 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Other features | |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Warranty | |
| Base Warranty | Non Non |
