Product Information

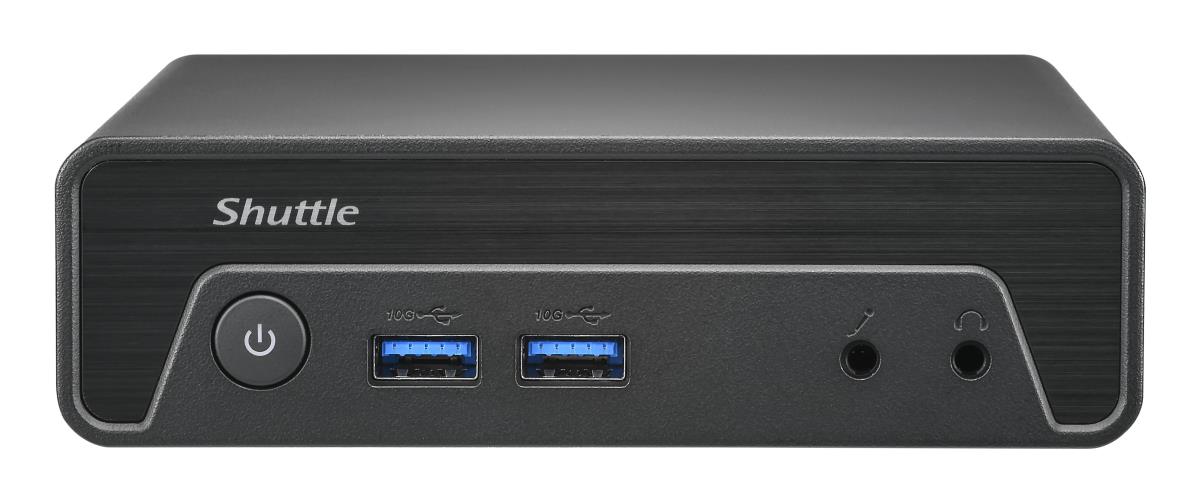

The fanless Shuttle XPC nano Barebone NE10N comes with powerful and efficient 12th generation Intel N100 processor, codenamed "Alder Lake-N". Despite the nano format with only 600 ml volume, it offers enormous connection variety and expansion options. Thus, up to two UHD displays (4K/60Hz) and up to six USB devices can be connected, and one M.2-2280 NVMe SSD card and one DDR4 module can be installed. The NE10N is ideal for Digital Signage, POS, control, office or even multimedia.
| Processor | |
| Processor manufacturer | Intel |
| Processor model | N100 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.4 GHz |
| Built-in processor | Yes |
| Processor cache | 6 MB |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Single-channel |
| Memory voltage | 1.2 V |
| ECC | No |
| Non-ECC | Yes |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express, Serial ATA |
| Card reader integrated | No |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel© UHD Graphics |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Design | |
| Chassis type | 0.6L sized PC |
| Product colour | Black |
| Cooling type | Passive |
| LED indicators | Yes |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Performance | |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| BIOS type | EFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Senary SN6141 |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Software | |
| Windows operating systems supported | Windows 11 |
| Linux operating systems supported | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, ErP |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 135 mm |
| Depth | 115 mm |
| Height | 39 mm |
| Weight | 600 g |
| Package weight | 1.5 kg |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Warranty | |
| Base Warranty | Non Non |
