PanelPC - Industrial - P21AL01-I3 - 21.5in Touch - i3 1215U - 2x DDR5 Ram - M.2-2280 / 2.5in - Black / Blue
ITCurry #: 88703025 | Article #: P21AL01-I3Flash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
1030.32
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information

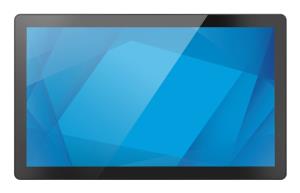

The high-value P21AL01 series of Panel PCs comes with a rugged Aluminium chassis with a IP65 compliant front panel and is powered by an Intel Core Gen12 ULV processor. The display is Full-HD and sports a projected capacitive 10-point multi-touch function. With its passive cooling the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. This makes it the perfect choice for rugged and public applications such as healthcare, hospitality sector, digital signage, POI, POS, Kiosk and industry.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i3 |
| Processor generation | 12th gen Intel© CoreT i3 |
| Processor model | i3-1215U |
| Processor cores | 6 |
| Processor threads | 8 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Built-in processor | Yes |
| Processor cache | 10 MB |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 4800 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| NVMe | Yes |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel© UHD Graphics |
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Aspect ratio | 16:9 |
| Display brightness | 500 cd/mý |
| Panel type | TFT-LCD |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Realtek RTL8821CE |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I226-LM, Intel I226-V |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 2 |
| DC-in jack | Yes |
| Design | |
| Chassis type | All-in-One |
| Product colour | Black, Blue |
| Cooling type | Passive |
| On/off switch | Yes |
| Housing material | Aluminium, Plastic |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Product type | All-in-One PC barebone |
| Performance | |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Built-in camera | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Technical details | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), cTUVus |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 90 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 4.74 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 543 mm |
| Depth | 49.9 mm |
| Height | 334 mm |
| Weight | 7.6 kg |
| Warranty | |
| Base Warranty | Non Non |
