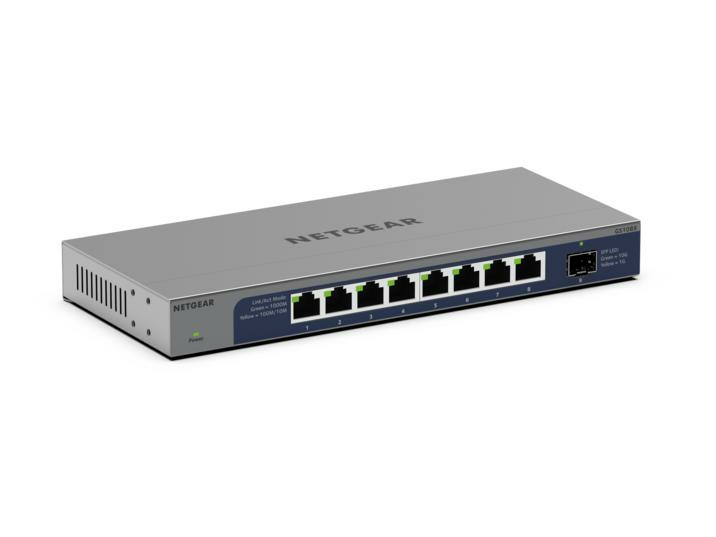

Unmanaged Switch GbE GS108X 8-Port - 1 Dedicated 10G SFP+ Port
ITCurry #: 20325615 | Article #: GS108X-100EUS-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The GS108X comes with 8 Gigabit Ethernet ports and 10 Gigabit SFP+ uplink port. Gigabit unmanaged switches help businesses cost-effectively expand their network to Gigabit speeds and higher port counts.
This GS108X is energy efficient, built to last, and rigorously tested to provide the reliability businesses need.
802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
The GS108X offers flexible mounting options - they can be mounted on a wall or can be used as a desktop switch.
Moreover the compact and fanless design makes the GS108X ideal for any home or business environment.
Features
- PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
- FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed
- SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
- ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate
- METAL CASE
Durable and rugged case for long-lasting performance
- VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement with included wall-mount kit
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3x |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| Design | |
| Rack mounting | No |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Power, Speed, Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1.5 A |
| Power consumption (typical) | 5.7 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Heat dissipation | 19.33 BTU/h |
| Weight & dimensions | |
| Width | 235 mm |
| Depth | 100.8 mm |
| Height | 27 mm |
| Weight | 575 g |
| Certificates | |
| Certification | RCM ICES-003 FCC Part 15 CE UKCA VCCI KC BSMI |
| Warranty | |
| Base Warranty | Non Non |
