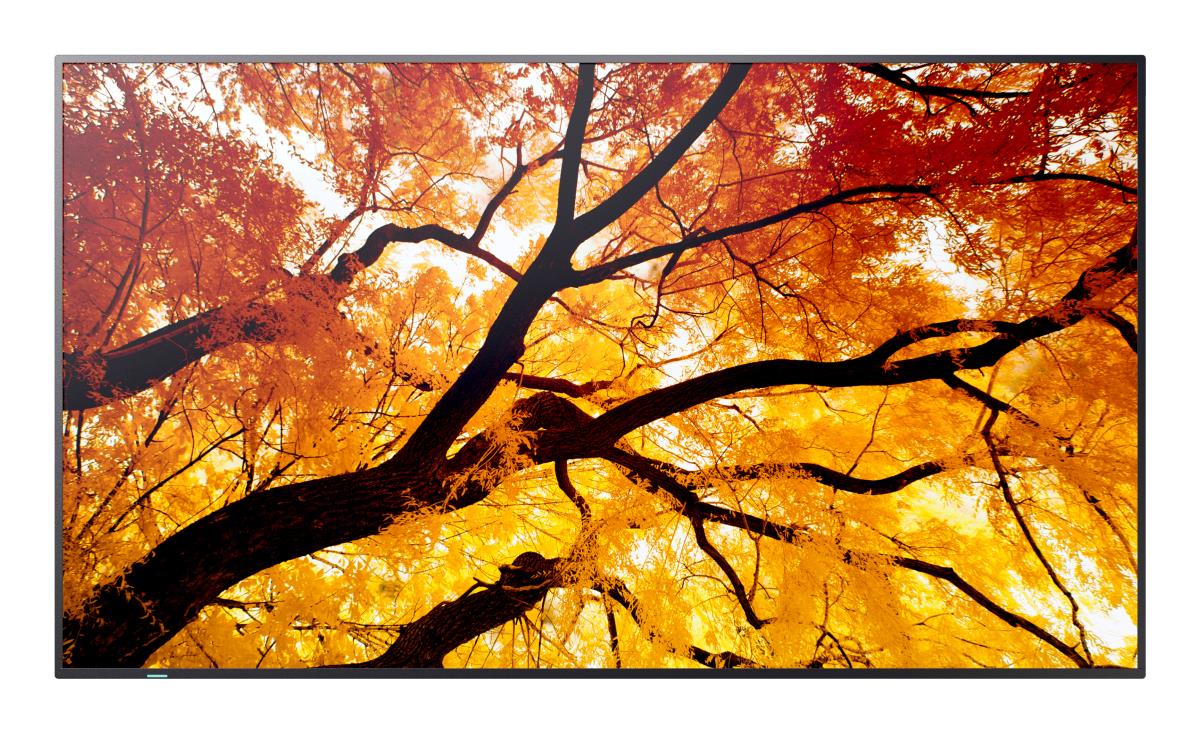

Large Format Display - Multisync M322 - 32in - 3840x2160 (uhd)
ITCurry #: 38909241 | Article #: 60006052-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Intuitive professional content delivery
For economical signage in 24/7 commercial environments, the 32” Sharp MultiSync® M322 delivers all the professional performance and features you need, whilst minimising the cost of ownership. With a 450 cd/m2 brightness output and anti-glare panel, the viewer enjoys excellent visual quality unhindered by reflections, with a slim, aesthetic design for unobtrusive integration.
Featuring multiple industry standard digital and analogue signal inputs, the M322 is future-proof for flexible integration. It also features full external control support through both RS-232 or LAN connectivity enabling operators to achieve time and cost savings when managing an estate of displays.
The full metal chassis, high end componentry and integrated schedule function affords peace of mind for extended runtimes, ideal for retail and transportation applications.
| Display | |
| Panel type | VA |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 81.3 cm (32") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 550 cd/mý |
| HD type | Full HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 4000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 16.7 million colours |
| Display diagonal (metric) | 80 cm |
| Horizontal scan range | 26 - 91.1 kHz |
| Vertical scan range | 23 - 86 Hz |
| Haze rate | 28% |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 2 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| USB port | Yes |
| USB ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Bezel width (bottom) | 1.72 cm |
| Bezel width (side) | 1.19 cm |
| Bezel width (top) | 1.18 cm |
| Performance | |
| Purpose | Universal |
| Power | |
| Power consumption (typical) | 40 W |
| Power consumption (standby) | 0.5 W |
| Input voltage | 100 - 240 V |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 41 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
| Display width | 726.5 mm |
| Display depth | 66.5 mm |
| Display height | 425.4 mm |
| Display weight | 6.3 kg |
| Packaging data | |
| Package width | 870 mm |
| Package depth | 160 mm |
| Package height | 527 mm |
| Package weight | 9.8 kg |
| Packaging content | |
| Remote control included | Yes |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 10 - 80% |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Wi-Fi | No |
| Warranty | |
| Base Warranty | Non Non |
