ThinkSystem SR630 V4 - 2x Xeon 6710E - 16x 64GB Ram - 9350-8i - 4x 2.5" NVMe; Open bay - 2x1300W TT Prem
ITCurry #: M852WE54 | Article #: 7DG9A00HEA-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

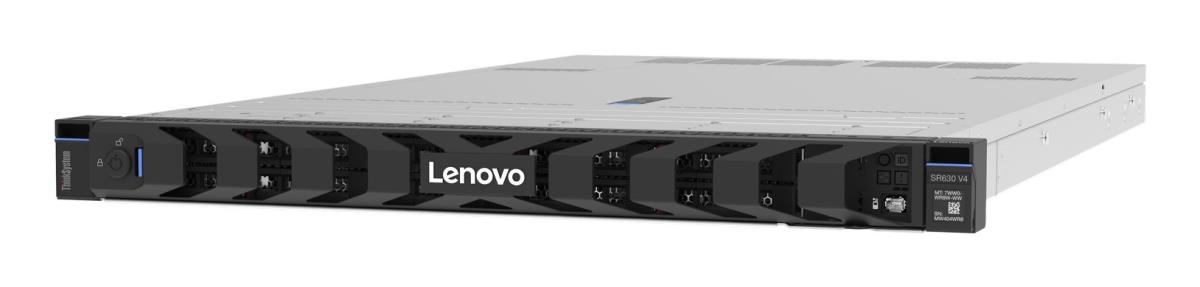

The Lenovo ThinkSystem SR630 V4 is an ideal 2-socket 1U rack server for customers that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. With two Intel Xeon 6700-series or 6500-series processors, the SR630 V4 is designed for high density and scale-out workloads in various customer segments.
This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V4 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V4 and consider its use in IT solutions.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon 6 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 64 |
| Processor cache | 96 MB |
| Number of processors installed | 2 |
| Processor threads | 64 |
| Memory | |
| Internal memory | 1.02 TB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 32x DIMM |
| ECC | Yes |
| Maximum internal memory | 8.19 TB |
| Storage | |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 2.5" |
| Hot-swap | Yes |
| Optical drive type | No |
| Internal drive bays | 4 |
| Graphics | |
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| Cooling type | Active |
| Rack mounting | Yes |
| Performance | |
| Performance management | XClarity Controller Platinum |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1300 W |
| Number of redundant power supplies supported | 2 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 773 mm |
| Height | 43 mm |
| Technical details | |
| Compliance certificates | CCC, CE, CECP, Federal Communications Commission (FCC), RoHS, UKCA, UL |
| Warranty | |
| Base Warranty | Non Non |
