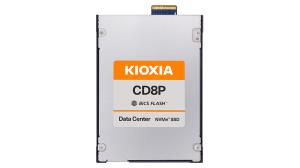

SSD - Datacenter Cd8p-r X121 - 3.8TB - Pci-e E1.s - Bics Flash Tlc Sie
ITCurry #: X2132292 | Article #: KCD8XPJE3T84-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Data Center NVMe™ Read Intensive SSD
KIOXIA CD8P-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-R Series 2.5-inch).
Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-R E3.S form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB, making them well-suited for hyperscale data center applications.
| Features | |
| NVMe version | 2.0 |
| SSD capacity | 3.84 TB |
| SSD form factor | E3.S |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| Memory type | BiCS FLASH TLC |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Random read (4KB) | 1900000 IOPS |
| Random write (4KB) | 200000 IOPS |
| Mean time between failures (MTBF) | 2500000 h |
| Drive writes per day (DWPD) | 1 |
| Power | |
| Operating voltage | 12 V |
| Power consumption (max) | 19 W |
| Power consumption (standby) | 5 W |
| Weight & dimensions | |
| Width | 76 mm |
| Depth | 7.5 mm |
| Height | 112.8 mm |
| Weight | 110 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 76 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Operating shock | 1000 G |
| Other features | |
| Warranty period | 5 year(s) |
| Warranty | |
| Base Warranty | Non Non |
