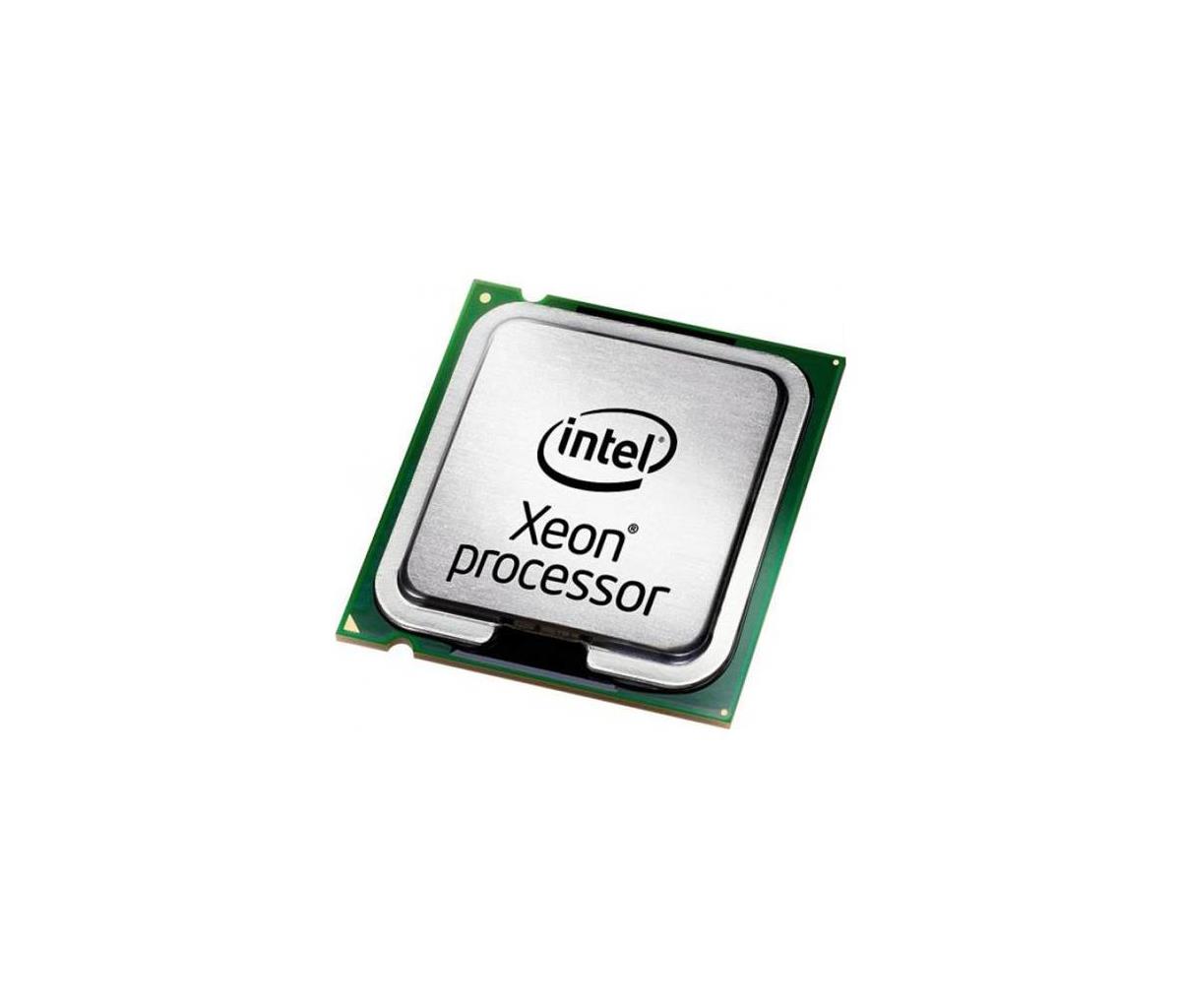

Xeon Processor E3-1505m V6 3.00 GHz Fcbga1440
ITCurry #: 2730D456 | Article #: CL8067702869709-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
POWERFUL. PRODUCTIVE. PORTABLE.
The Intel® Xeon® processor E3-1500M v6 product family, based on Intel’s newest wave of
14nm processors, delivers the responsive performance, high-speed I/O and enterprise-
grade features that professional power-users demand. With support for Error-Correcting
Code (ECC) memory, workstation application certifications, and Intel® vPro™ technology
security and manageability, Intel Xeon processor-based mobile workstations enable the
level of portable business computing that engineers, graphics professionals, and media
creators need and IT requires.
Responsive Performance and High-Speed I/O
The Intel Xeon processor E3-1500M v6 product family leverages the power efficiency of a new microarchitecture for faster performance than previous-generation processors.
Intelligent power management with Intel® Turbo Boost Technology 2.0 dynamically controls performance and power-for cores and graphics-boosting performance when it is needed, and saving energy when it counts. The Intel Xeon processor E3-1500M v6 product family supports four cores and eight threads with Intel® Hyper-Threading Technology
(Intel® HT Technology), enabling powerful, yet sleek, mobile workstations. Thunderbolt™ 3 Technology (with 40 Gbps bandwidth) is available on a number of mobile workstation designs alongside ample high-speed I/O, including up to 16 PCIe Gen3 lanes.
Manageability and Stability
Intel® Active Management Technology simplifies PC management and maximizes uptime for increased productivity and lower IT costs. Additionally, Intel® Stable Image Platform Program (SIPP) guarantees no image-breaking hardware/firmware changes and the extended availability of the platform.
Certified Applications
Optimized for a range of independent software vendor (ISV) applications, the Intel Xeon processor E3-1500M v6 product family delivers previously out-of-reach, entry-level workstation performance and visuals to designers, engineers, and media creators.
Workstation-Class Graphics Optimized for Professional Software
Built-in Intel® HD Graphics P630 delivers the hardware-accelerated imagery and media performance that professionals need for vector and bit map visualizations, video transcoding, and ultra-high definition (UHD) display. New enhancements in the processor silicon enable professional software to leverage the added graphics performance for superior portable workstation experiences. The Intel Xeon processor E3-1500M v6 product family enables an entirely new class of powerful, portable, and graphics-accelerated workstations.
Security and Reliability
The Intel Xeon processor E3-1500M v6 product family has been designed to enable hardware-enhanced security, including Intel® Software Guard Extensions (Intel® SGX) that can provide an additional level of hardware-based protection by putting data into a secure container on the platform, and Intel® Memory Protection Extensions (Intel®
MPX) that can help prevent buffer flow attacks. ECC memory support guards your system from potential crashes and changes in data with built-in protection that automatically detects and repairs errors that cause data corruption.
Experience the Best of Windows 10 in a Powerful Mobile Workstation
The premium performance of Intel Xeon processor-powered mobile workstations unleashes massive potential in Windows 10. With accelerated CPU and graphics performance, and enhanced security, manageability, and reliability features, your Windows 10 experience just
gets better. Blazing-fast startup and app switching gets you to work faster, boosting roductivity. And increased efficiency of both the Intel Xeon processor E3-1500M v6 product family and Windows 10 lets you enjoy the freedom to work longer wherever you want.
| Processor | |
| Processor manufacturer | Intel |
| Processor model | E3-1505MV6 |
| Processor base frequency | 3 GHz |
| Processor family | Intel© Xeon© E3 v6 |
| Processor cores | 4 |
| Processor socket | BGA 1440 |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor series | Intel Xeon E3-1500M v6 |
| Processor threads | 8 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 45 W |
| Package type | Tray |
| Cooler included | No |
| Configurable TDP-down | 35 W |
| Stepping | B0 |
| Bus type | DMI3 |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Processor codename | Kaby Lake |
| Processor code | SR32K |
| Processor ARK ID | 97463 |
| Memory | |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1600,2133,2400 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | Yes |
| On-board graphics card model | Intel© HD Graphics P630 |
| Maximum on-board graphics card memory | 1.7 GB |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card 4K support | Yes |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card maximum resolution (DisplayPort) | 4096 x 2304 pixels |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2304 pixels |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 30 Hz |
| On-board graphics card ID | 0x591D |
| Features | |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Mobile |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| PCI Express CEM revision | 3.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Processor special features | |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Yes |
| Intel© Identity Protection Technology (Intel© IPT) | Yes |
| Intel© My WiFi Technology (Intel© MWT) | Yes |
| Intel© Smart Response Technology | Yes |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© Quick Sync Video Technology | Yes |
| Intel© InTruT 3D Technology | Yes |
| Intel© Clear Video HD Technology (Intel© CVT HD) | Yes |
| Intel Flex Memory Access | Yes |
| Intel© AES New Instructions (Intel© AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel© Memory Protection Extensions (Intel© MPX) | Yes |
| Intel© Speed Shift Technology | Yes |
| Intel© Turbo Boost Technology 2.0 frequency | 4 GHz |
| Intel© Transactional Synchronization Extensions | Yes |
| Intel Enhanced Halt State | Yes |
| Intel© Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel© Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel© OS Guard | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel HD Graphics | Yes |
| Intel 64 | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel TSX-NI version | 1.00 |
| Conflict-Free processor | Yes |
| Intel© vProT Platform Eligibility | Yes |
| Operational conditions | |
| Tjunction | 100 øC |
| Technical details | |
| Maximum resolution & refresh rate (VGA) | N/A |
| Processor cache | 8192 KB |
| Bus bandwidth | 8 |
| Bus type units | GT/s |
| Launch date | Q1'17 |
| Maximum resolution & refresh rate (DisplayPort) | 4096x2304@60Hz |
| Maximum resolution & refresh rate (HDMI) | 4096x2304@30Hz |
| Maximum resolution & refresh rate (Integrated Flat Panel) | 4096x2304@60Hz |
| Product type | System on Chip |
| Status | Launched |
| Supported memory types | DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM |
| Maximum memory | 64 GB |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E3 v6 Family |
| Intel© Speed Shift Technology version | 1.00 |
| Bus speed | 8 GT/s |
| Maximum graphics card memory | 1.7 GB |
| Processor ID | 0x591D |
| Servicing status | Baseline Servicing |
| Logistics data | |
| Harmonized System (HS) code | 85423119 |
| Weight & dimensions | |
| Processor package size | 42mm x 28mm |
| Other features | |
| Maximum internal memory | 64 GB |
| Maximum internal memory | 65536 MB |
| Graphics output | eDP/DP/HDMI/DVI |
| Video decoding | Yes |
