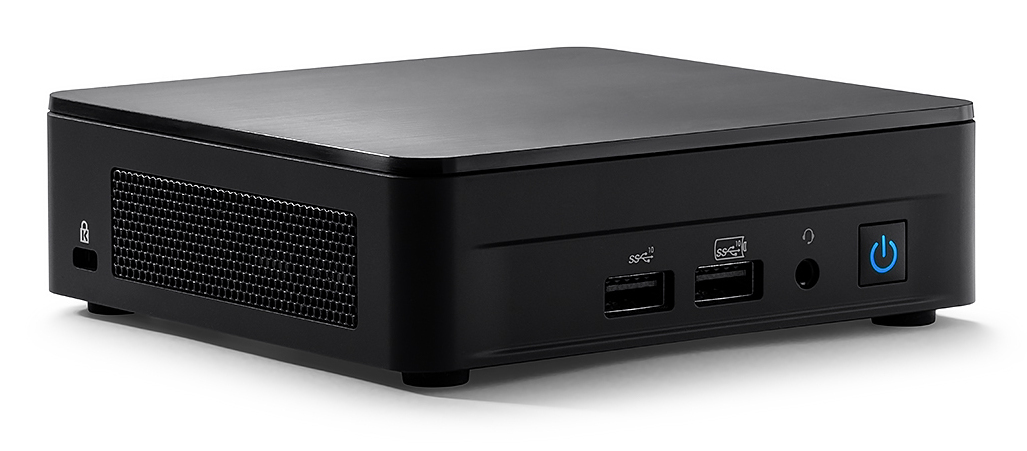

Barebone Mini Pc Wall Street Nuc12wski5 Eu - No Cord
ITCurry #: 2730D586 | Article #: RNUC12WSKI50002-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
Intel® ME Firmware Version
Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.
Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.
Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i5 |
| Processor generation | 12th gen Intel© CoreT i5 |
| Processor model | i5-1240P |
| Processor cores | 12 |
| Processor threads | 16 |
| Processor boost frequency | 4.4 GHz |
| Built-in processor | Yes |
| Processor cache | 12 MB |
| Thermal Design Power (TDP) | 35 W |
| CPU configuration (max) | 1 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Number of DIMM slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| ECC | No |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2, PCI Express |
| NVMe | Yes |
| Number of storage drives supported | 2 |
| Card reader integrated | No |
| Graphics | |
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card model | Not available |
| Number of displays supported | 4 |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I225-V |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial port via internal header | No |
| M.2 card slot (wireless) | 2230 (E-key) (E) |
| USB ports quantity | 4 |
| M.2 card slot (storage) | 2280 NVMe (M); 2242 SATA (B) |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Design | |
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
| Status | Launched |
| ARK ID | 121623 |
| Performance | |
| Motherboard form factor | UCFF |
| Number of processors supported | 1 |
| BIOS type | EEPROM |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 7.1 channels |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Processor special features | |
| Intel© High Definition Audio (Intel© HD Audio) | Yes |
| Embedded options available | No |
| Intel© AES New Instructions (Intel© AES-NI) | Yes |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel ME Firmware Version | 16 |
| Intel© OptaneT Memory Ready | No |
| Intel© Platform Trust Technology (Intel© PTT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Technical details | |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 8471500150 |
| Software | |
| Windows operating systems supported | Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Compatible operating systems | Windows 10 IoT Enterprise*|Linux* |
| Sustainability | |
| Sustainability certificates | China Energy Label (CEL), ENERGY STAR, ErP |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 37 mm |
| Packaging content | |
| Power cord included | Yes |
| Other features | |
| Launch date | Q3'22 |
| Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| Number of SATA connectors | 1 |
| DC input voltage | 12 - 20 V |
| Warranty | |
| Base Warranty | Non Non |
