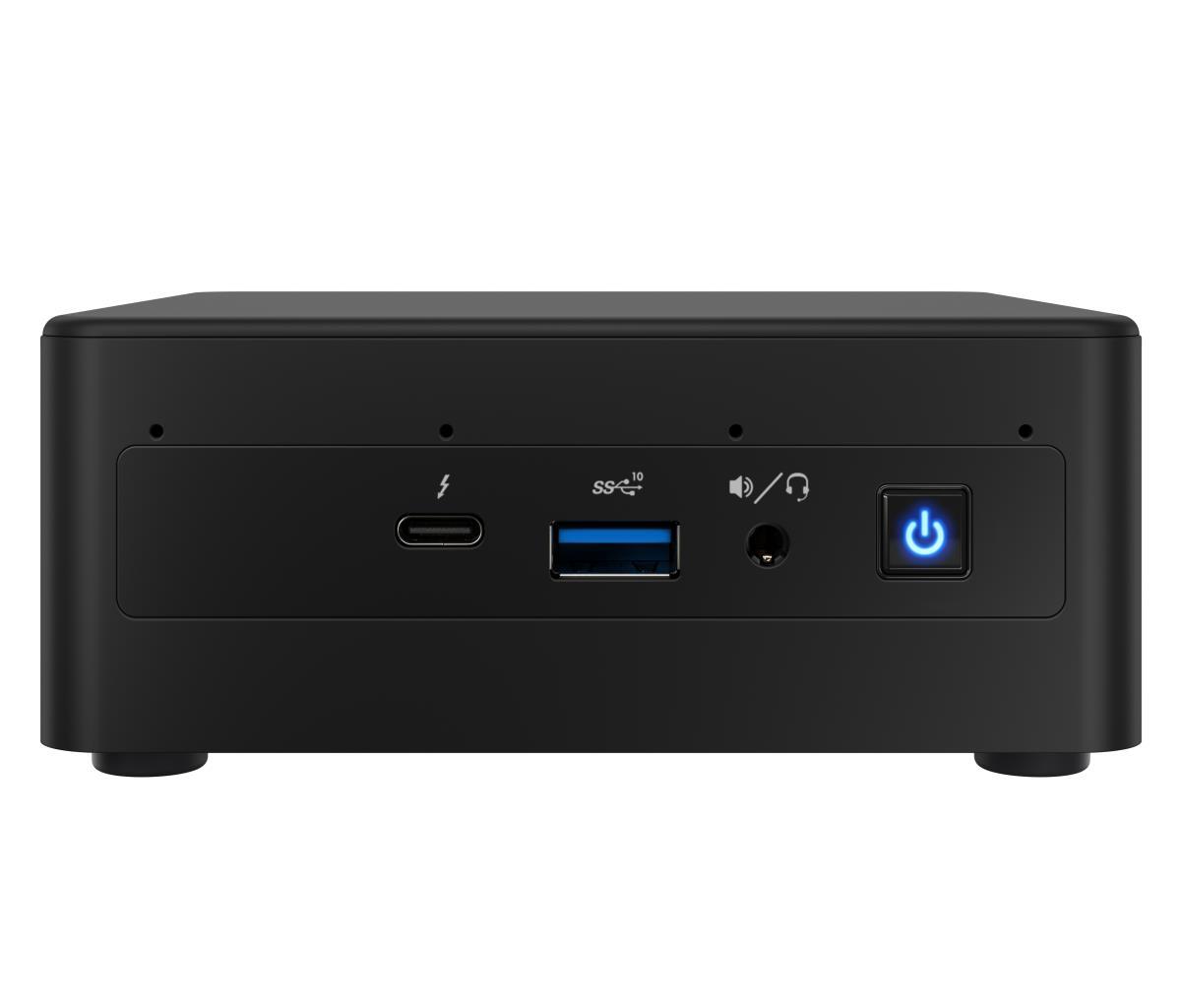

Barebone Mini Pc Panther Canyon Nuc11pahi30z00 No Cord
ITCurry #: 2730D415 | Article #: RNUC11PAHI30Z00-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.
Intel vPro® Platform Eligibility
The Intel vPro® platform is a set of hardware and technologies used to build business computing endpoints with premium performance, built-in security, modern manageability and platform stability.
Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
TPM
Trusted Platform Module (TPM) is a component on the desktop board that is specifically designed to enhance platform security above-and-beyond the capabilities of today's software by providing a protected space for key operations and other security critical tasks. Using both hardware and software, the TPM protects encryption and signature keys at their most vulnerable stages - operations when the keys are being used unencrypted in plain-text form.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
| Processor | |
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i3 |
| Processor generation | 11th gen Intel© CoreT i3 |
| Processor model | i3-1115G4 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor lithography | 10 nm |
| Processor boost frequency | 4.1 GHz |
| Processor cache | 6 MB |
| Thermal Design Power (TDP) | 40 W |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| CPU configuration (max) | 1 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Number of DIMM slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory bandwidth (max) | 51.2 GB/s |
| Removable memory card slot | SDXC with UHS-II support |
| ECC | No |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2,2.5 |
| SSD form factor | M.2 |
| Number of storage drives supported | 2 |
| Graphics | |
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel© UHD Graphics |
| Discrete graphics card model | Not available |
| Number of displays supported | 4 |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I225-V |
| Bluetooth | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Mini DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of SATA III connectors | 2 |
| USB ports quantity | 7 |
| Thunderbolt 3 ports quantity | 2 |
| M.2 card slot (storage) | 2280 |
| DC-in jack | Yes |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Design | |
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Passive |
| LED indicators | Yes |
| Product type | Mini PC barebone |
| Status | Launched |
| Performance | |
| Motherboard form factor | UCFF |
| Number of processors supported | 1 |
| Trusted Platform Module (TPM) | No |
| Audio output channels | 7.1 channels |
| Consumer infrared Rx sensor | Yes |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Compatible operating systems | Windows 10, 64-bit* |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Processor special features | |
| Intel© vProT Platform Eligibility | No |
| Intel© High Definition Audio (Intel© HD Audio) | Yes |
| Embedded options available | No |
| Intel Rapid Storage Technology | Yes |
| Intel© AES New Instructions (Intel© AES-NI) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel© Platform Trust Technology (Intel© PTT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Power | |
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 51 mm |
| Other features | |
| Launch date | Q2'22 |
| Additional headers | CEC, USB3.1, USB2.0, FRONT_PANEL, RGB |
| Number of SATA connectors | 2 |
| HDD size | 2.5" |
| DC input voltage | 19 V |
| Processor ARK ID | 228584 |
| Warranty | |
| Base Warranty | Non Non |
