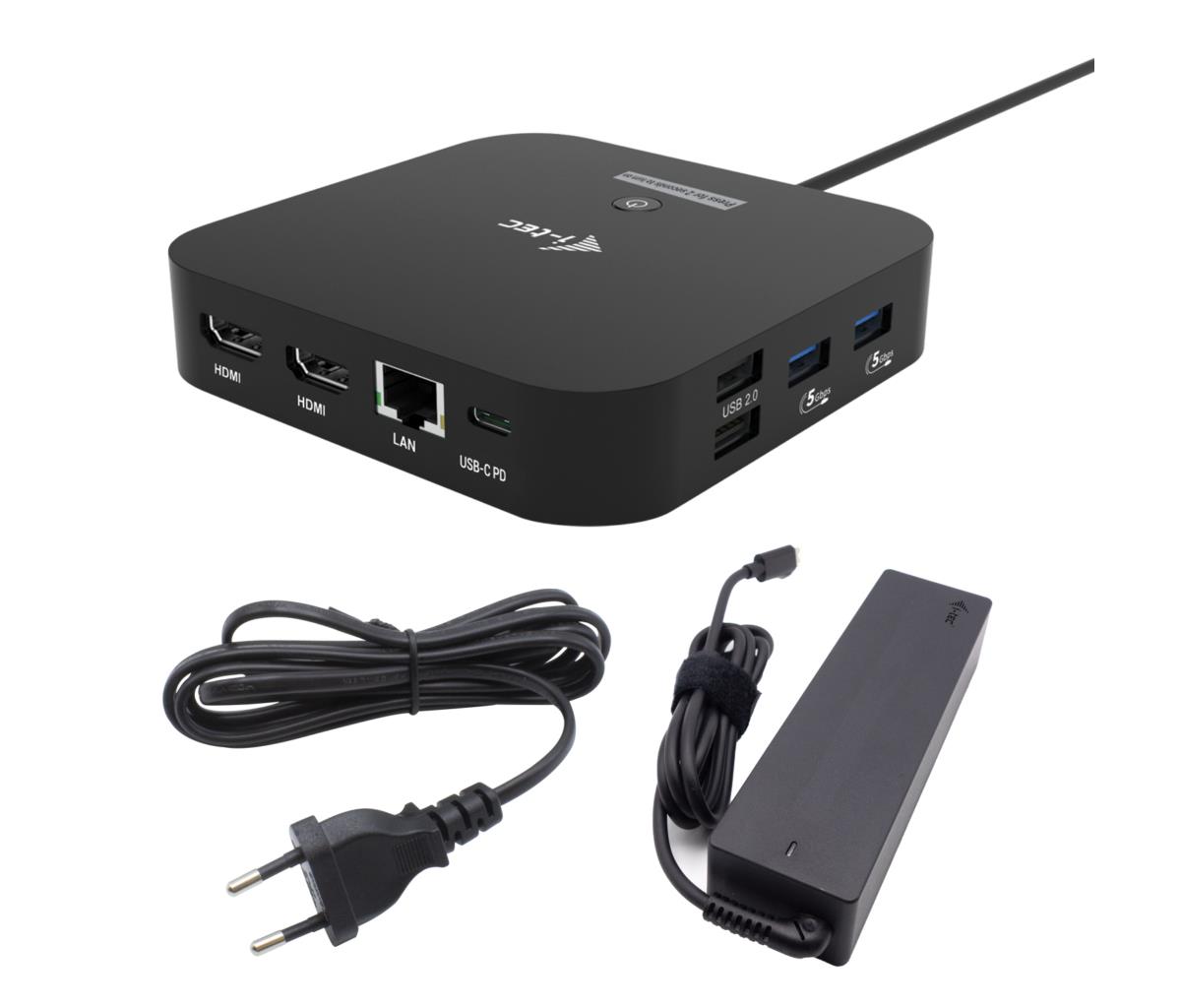

USB-c Docking Station - Dual Display - Hdmi - Power Delivery 100w With Universal Charger 100w
ITCurry #: P3642601 | Article #: C31DUALHDMIDPD100UK-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Modern USB-C office docking station with support for up to 2 external monitors with 4K resolution. The station is compatible with any laptop equipped with a USB-C, USB4 or Thunderbolt 3/4/5 port. 6x USB ports, reliable and quick connection to your business network thanks to an integrated LAN port and support for installation behind a monitor make the docking station an ideal partner for professionals. And of course, the station is capable of charging your laptop or tablet with up to 100W.
Note: macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to the station on macOS will result in both monitors showing the same image.
- Connect up to two 4K/60 Hz external monitors
- Power delivery: up to 100 W
- Two available HDMI ports
- 6x USB ports (1x USB-C 10Gbps, 1x USB-C 5Gbps, 2x USB-A 5Gbps and 2x USB-A 2.0 for easy connection of your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connection supporting 10/100/1000 Mbps speeds
- Combined jack for audio and microphone on the front panel
- Kensington lock protects against theft, particularly in shared offices or public spaces
- On/off switch for maximum energy savings
- The station features VESA support, allowing smart vertical installation behind a VESA compatible monitor
- Supports Windows 10/11, macOS, Android, iPadOS, ChromeOS and Linux
NOTE: USB-C 100W charger included.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 2 |
| Maximum refresh rate | 240 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | Yes |
| Plug and Play | Yes |
| Brand compatibility | Universal |
| Power | |
| Power source type | USB |
| Power connector | USB Type-C |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2.3 A |
| Output voltage | 5 - 20 V |
| Output current | 5 A |
| Power consumption (max) | 100 W |
| USB cable length | 1 m |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android, ChromeOS, iPadOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 113 mm |
| Depth | 113 mm |
| Height | 40 mm |
| Weight | 242 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC, USB |
| AC adapter included | Yes |
| Manual | Yes |
| Other features | |
| Short circuit protection | Yes |
| Overload protection | Yes |
| Warranty | |
| Base Warranty | Non Non |
