Thunderbolt 4 3x Display Docking Station - USB-c - Power Delivery 96w Uk
ITCurry #: P3642598 | Article #: TB4TRIPLEDOCKPDUK-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Ultra-high performance, ultra-fast data transfer, and support for resolutions up to 8K/60 Hz. One of the most powerful i-tec docking stations on the market!
Crystal-clear image quality, ultra-fast internet, and data transfer speeds of up to 4 GB per second thanks to the integrated Thunderbolt 4 output port. You can also connect headphones or speakers and charge your laptop (up to 96W) – all via a single cable (100 cm certified Thunderbolt 4 cable included in the package).
Thanks to the integrated DP 1.4 protocol, you can connect this docking station to a monitor with up to 8K resolution (7680 × 4320) at a 60 Hz refresh rate – equivalent to four 4K monitors. This makes it an ideal solution for graphic designers, data analysts, developers, video editors, and high-resolution video enthusiasts.
The docking station is now compatible not only with Thunderbolt 5/4/3 ports, but also with USB4 and USB-C, making it a flexible solution for businesses and users with various notebook and tablet interfaces.
- Supports up to 3 external monitors* with resolutions up to 1x 8K/60Hz, or 2x 4K/120Hz and 1x 4K/60Hz

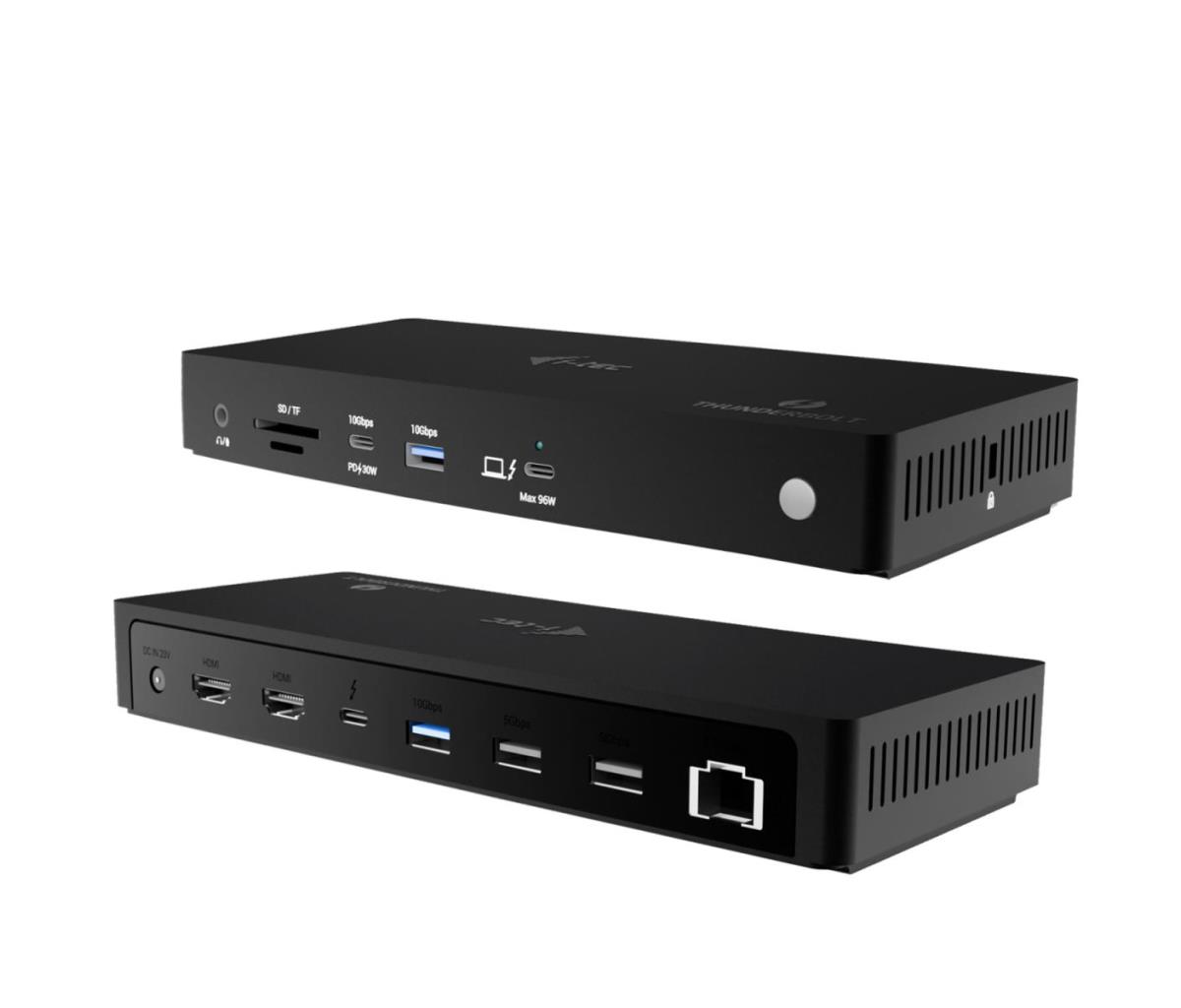

- Video ports: 2x HDMI, 1x Thunderbolt 4
- 1x USB-C (10 Gbps) with 30W Power Delivery
- 2x USB-A (10 Gbps)
- 2x USB-A (5 Gbps)
- LAN port with speeds up to 2.5 Gbps (10/100/1000/2500 Mbps)
- 5 mm audio/mic port
- 1x SD/microSD card slot
- Laptop charging up to 96W
- Docking station power on/off button
* macOS does not support Multi Stream Transport (MST) for multiple displays, which means that when connected to a macOS system, both HDMI-connected monitors will mirror the same imag
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| HDMI ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 40 Gbit/s |
| Number of displays supported | 3 |
| Maximum refresh rate | 144 Hz |
| Product colour | Black |
| Power | |
| Power source type | AC |
| Power supply | 160 W |
| Output voltage | 20 V |
| Output current | 8 A |
| Compatible power plug types | UK |
| Thunderbolt 4 cable length | 1 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions | |
| Width | 217 mm |
| Depth | 81.3 mm |
| Height | 28.8 mm |
| Weight | 460 g |
| Packaging content | |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Manual | Yes |
| Warranty | |
| Base Warranty | Non Non |
