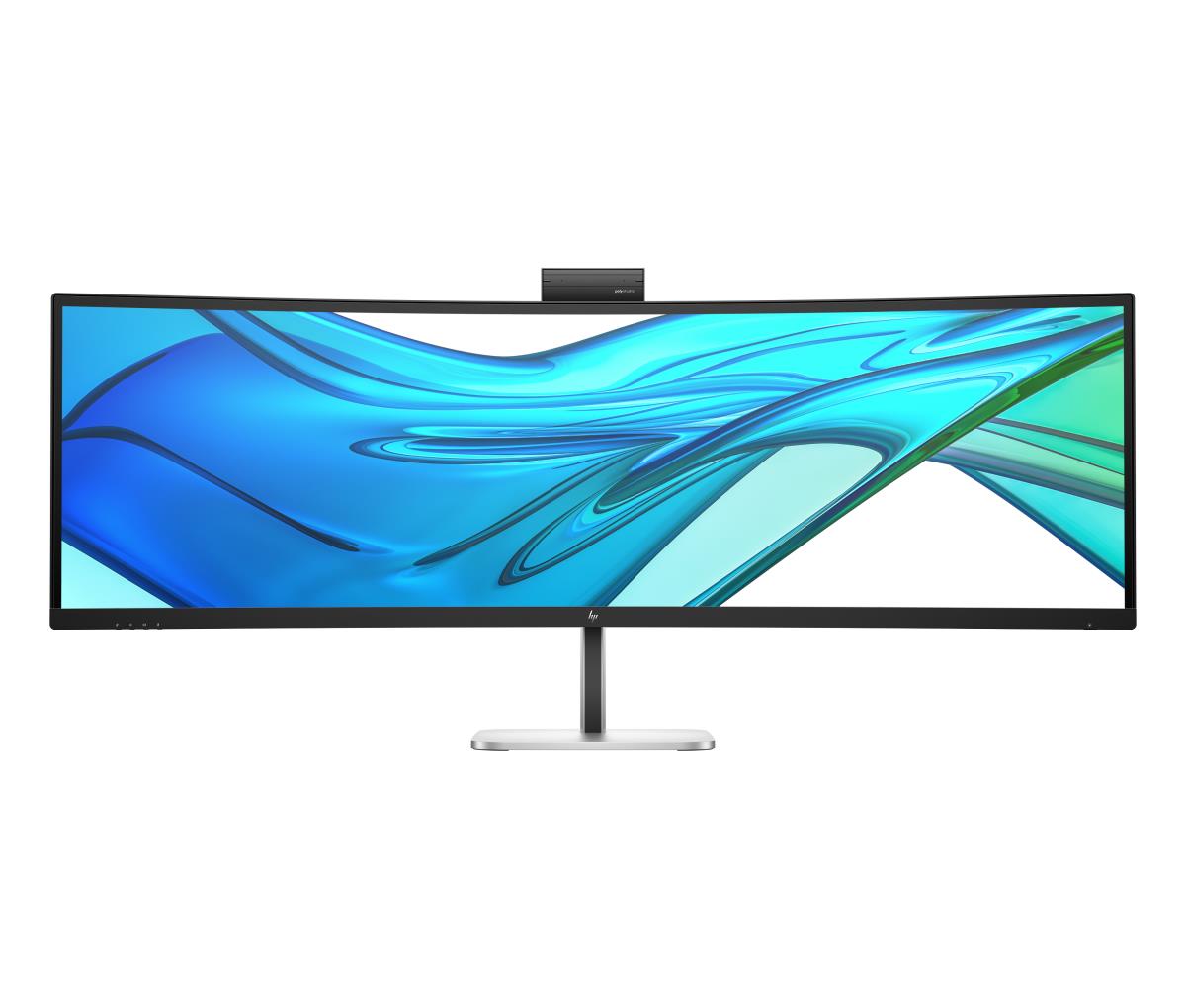

Conferencing Monitor - Series 5 Pro 549pm - 49in - 5120x1440 (DQHD)
ITCurry #: 1170SFZ6 | Article #: B7GV8AA#ABB-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The massive canvas for the multitasking maestro
See more, do more, faster with one immersive canvas that supports up to two devices simultaneously for seamless edge-to-edge multitasking with the HP Series 5 Pro 49" DQHD Conferencing Monitor. Integrate AI conferencing and ecosystem connectivity with this ultrawide command center.
| Display | |
| Display diagonal | 124.5 cm (49") |
| Display resolution | 5120 x 1440 pixels |
| HD type | Dual QHD |
| Native aspect ratio | 32:9 |
| Display technology | LCD |
| Panel type | VA |
| LED backlight | Yes |
| Backlight type | Edge LED |
| Touchscreen | No |
| Display brightness (typical) | 400 cd/mý |
| Display brightness | 400 cd/mý |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Anti-glare screen | Yes |
| Screen shape | Curved |
| Screen curvature rating | 1800R |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 2560 x 1440, 3440 x 1440, 5120 x 1440, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
| Aspect ratio | 32:9 |
| Contrast ratio (typical) | 4000:1 |
| Contrast ratio (dynamic) | 5000000:1 |
| Maximum refresh rate | 165 Hz |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.2328 x 0.2328 mm |
| Pixel density | 109 ppi |
| Horizontal scan range | 25 - 258 kHz |
| Vertical scan range | 50 - 165 Hz |
| Viewable size, horizontal | 119.2 cm |
| Viewable size, vertical | 33.5 cm |
| Haze rate | 25% |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| Colour gamut standard | sRGB |
| Colour gamut | 99% |
| sRGB coverage (typical) | 99% |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Fast charging | Yes |
| Flicker-free technology | Yes |
| HP segment | Business |
| Infrared (IR) sensor | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Colour name | Black |
| Detachable stand | Yes |
| Feet colour | Silver, Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 3 |
| USB Type-C downstream ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Audio input | Yes |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
| Network | |
| Ethernet LAN | Yes |
| Remotely operated | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Swivelling | Yes |
| Swivel angle range | -30 - 30ø |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20ø |
| On Screen Display (OSD) | Yes |
| Power | |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 45 kWh |
| Power consumption (typical) | 65 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 375 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 5000 m |
| Non-operating altitude | 0 - 12192 m |
| Weight & dimensions | |
| Width (with stand) | 1193.5 mm |
| Depth (with stand) | 309.1 mm |
| Height (with stand) | 587.3 mm |
| Weight (with stand) | 17.2 kg |
| Width (without stand) | 1193.5 mm |
| Depth (without stand) | 309.1 mm |
| Height (without stand) | 371 mm |
| Weight (without stand) | 17.2 kg |
| Packaging data | |
| Package weight | 26.7 kg |
| Package type | Box |
| Warranty card | Yes |
| Packaging content | |
| Stand included | Yes |
| Cables included | USB Type-C to USB Type-C, AC |
| Quick start guide | Yes |
| Bundled software | HP Display Center; HP Client Management Script Library |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT, TCO, EPEAT Gold, EPEAT Climate +, TCO10 |
| Sustainable technologies and materials | At least 20% recycled metal including 90% recycled aluminum in the stand; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Outside box and corrugated cushions are 100% from certified or recycled sources and recyclable; At least 90% post-consumer recycled plastic; Low halogen |
| Other features | |
| Country of origin | China |
| Subwoofer RMS power | 6 W |
| UNSPSC-code | 43211902 |
| Packaging content | Monitor; Warranty card; Quick Setup Poster; AC power cord; 2 USB Type-C to Type-C cable; VESA mount adapter |
| Weight | 13.7 kg |
| Compliance certificates | CECP, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI |
| Ethernet LAN (RJ-45) ports | 1 |
| Supplied AC adapter type | (ABB) 198990299327; (ABU) 198990299396, 198990299327, 198990299396 |
| Technical details | |
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
| Warranty | |
| Base Warranty | Non Non |
