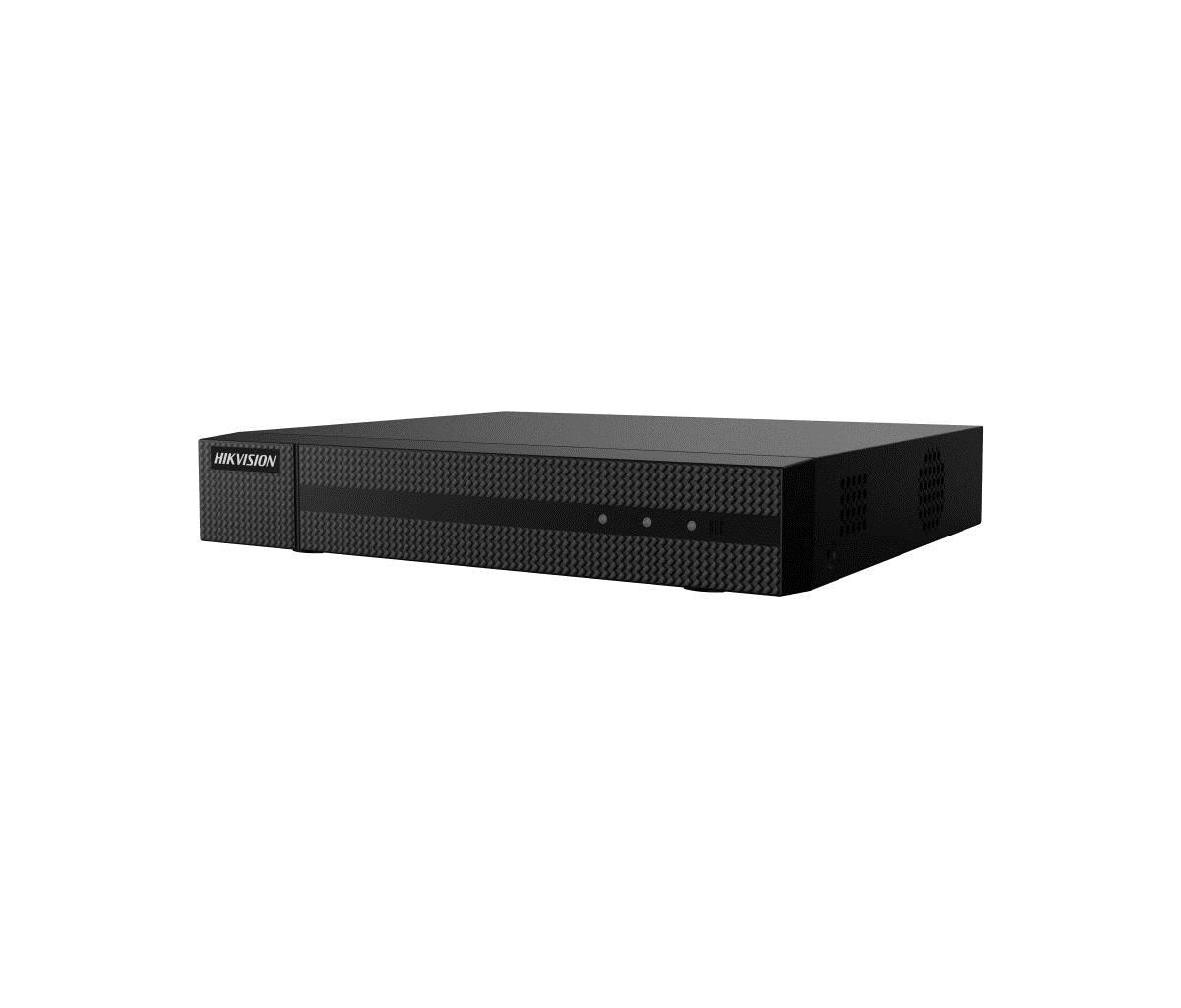

Hwn-4104mh(std)(d) Value Nvr With Md 2.0 N/a 4-channels 1080p
ITCurry #: T4497607 | Article #: 303616487-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Discover Hikvision NVR Family
Hikvision NVR comes in different series, such as Pro, Ultra, DeepinMind, Value, Special series and Pro Series with AcuSense, catering to various application scenarios. Our NVRs are built with high-quality components to ensure the reliability of devices and the whole Network Video Recorder System, while also prioritizing user experience with simplified operation processes. Choose the NVR series below that perfectly fits your needs for a seamless and reliable security solution.
Performance | |
Video input channels | 4 channels |
Video recording modes | 720p, 1080p, 2160p |
Maximum resolution | 4096 x 2160 pixels |
Supported resolutions | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA , 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
Video formats supported | H.264, H.264+, H.265, H.265+, MPEG4 |
Input bandwidth | 40 Mbit/s |
Output bandwidth | 80 Mbit/s |
Wireless LAN features | |
Wi-Fi | No |
Hard drive | |
Number of HDDs supported | 1 |
Maximum storage capacity | 8 TB |
HDD interface | SATA |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100 Mbit/s |
HDMI output | Yes |
HDMI ports quantity | 1 |
VGA (D-Sub) output ports | 1 |
USB 2.0 ports quantity | 2 |
Audio RCA inputs | 1 |
Audio RCA outputs | 1 |
DC-in jack | Yes |
Supported network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPT, HTTP, HTTPS |
Features | |
Rack capacity | 1U |
Brand compatibility | Hikvision Digital Technology |
LED indicators | Yes |
Product colour | Black |
Power | |
Output current | 1.5 A |
Output voltage | 12 V |
Operational conditions | |
Operating temperature (T-T) | -10 - 55 øC |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
Width | 265 mm |
Depth | 229 mm |
Height | 48 mm |
Weight | 1 kg |
Warranty | |
Base Warranty | Non Non |
