Product Information

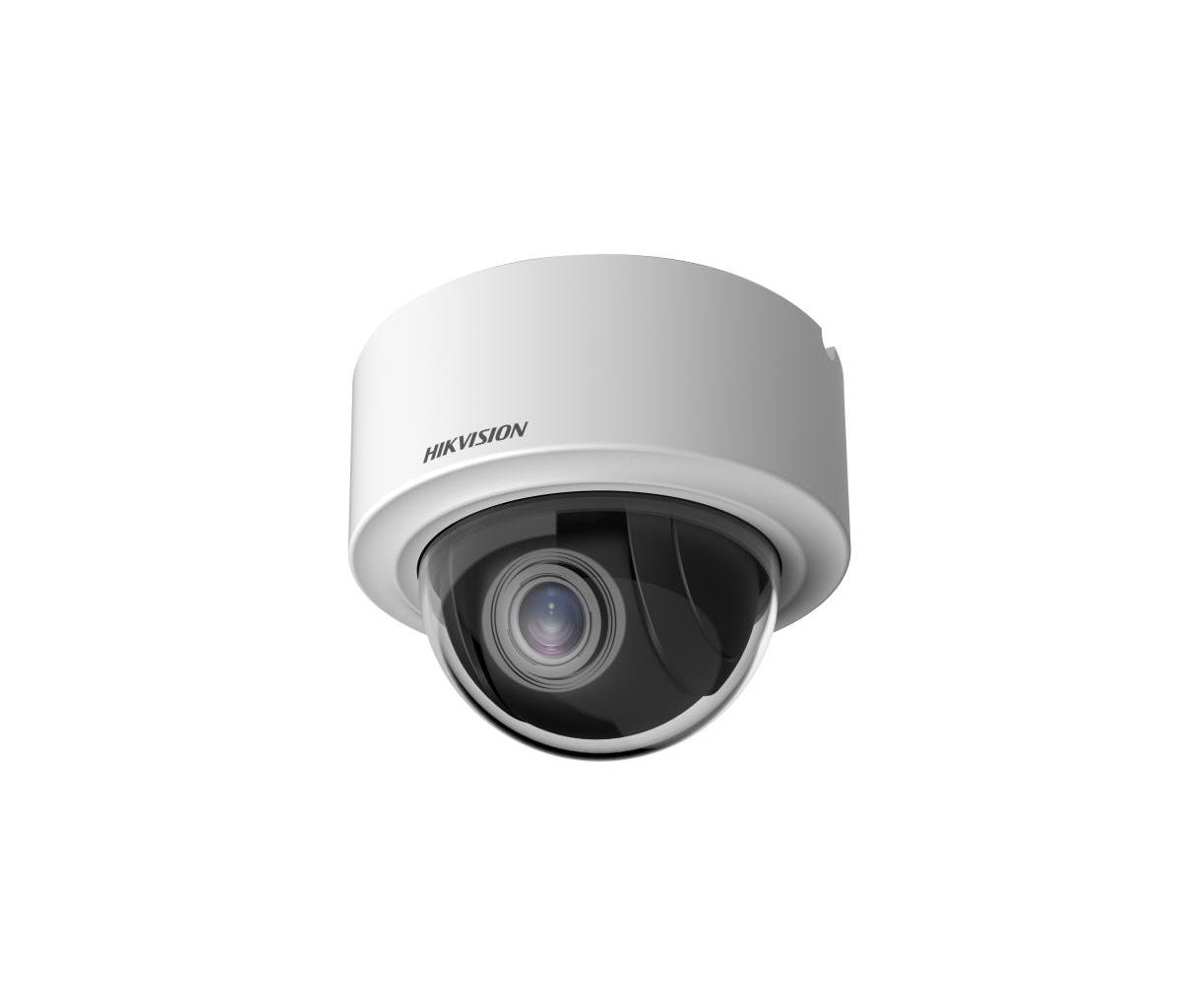

This Micro-designed 3" PTZ Mini Dome Camera shows the easiest installation, adjustment and maintenance that you have ever seen. It is a fantastic and practical camera for outdoor. In addition, DS-2DE3204W-DE(T5)(B) support 4 × optical zoom technology, PoE & 12 VDC power supply. Embedded with 1/2.8" progressive scan CMOS chip makes 120 dB WDR and 2 MP real-time resolution possible. With the pan/tilt and 4 × optical zoom Day/Night lens, the camera offers more details in the outdoor environments. Hikvision DS-2DE3204W-DE(T5)(B) Mini PTZ Dome Cameras also features a wide range of functions, including intrusion detection, line crossing detection, motion detection and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events/objects being recorded for further forensic needs.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ status display | Yes |
| Preset points | Yes |
| Preset freezing function | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Number of languages | 33 |
| Languages support | Multi |
| Dynamic range | 120 dB |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Protection features | Water resistant |
| International Protection (IP) code | IP66 |
| Fog proof | Yes |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 103.4 - 33ø |
| Lens viewing angle, vertical | 53.8 - 18.9ø |
| Lens viewing angle, diagonal | 122.6 - 37.8ø |
| Tilt angle range | 0 - 90ø |
| Tilt speed | 50 ø/sec |
| Tilt preset speed | 50 ø/sec |
| Pan range | 0 - 350ø |
| Pan speed | 60 ø/sec |
| Pan preset speed | 60 ø/sec |
| White balance | ATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp |
| Preset programs quantity | 300 |
| Camera shutter speed | 1/1 - 1/30000 s |
| Number of Privacy masking areas | 24 |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 4x |
| Digital zoom | 16x |
| Number of lenses | 1 |
| Zoom speed | 2 s |
| Detect distance | 130.9 m |
| Observe distance | 51.9 m |
| Recognize distance | 26.2 m |
| Focal length range | 2.8 - 12 mm |
| Auto focus | Yes |
| Focus | Motorized/Manual |
| Maximum aperture number | 1.5 |
| Identify distance | 13.1 m |
| Night vision | |
| Night vision | Yes |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Video recording | Yes |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| 3D positioning | Yes |
| Audio | |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | AAC, G.711 A-law, G.711 æ-law, G.722.1, G.726, MP2L2, PCM |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Built-in microphone | Yes |
| Bit rate range | 16 - 192 Kbit/s |
| Sample rates | 8 - 48 kHz |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Supported network protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets |
| Wi-Fi | No |
| Bluetooth | No |
| Number of users | 32 user(s) |
| User access level | Administrator, Operator, User |
| Quality of Service (QoS) support | Yes |
| Client interoperability | iVMS-4200, Hik-Connect, HikCentral |
| Live view | Yes |
| Number of simultaneous live view channels | 20 channels |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| DC-in jack | Yes |
| Security | |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Security algorithms | EAP-LEAP, EAP-MD5, EAP-TLS, HTTPS |
| HTTPS encryption | Yes |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Intrusion, Line crossing detection, Region entrance detection, Region exiting detection |
| Mirror | Yes |
| Digital watermark | Yes |
| Automatic Network Replenishment (ANR) | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Behavior analysis | Audio exception detection, Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 10 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 65 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Height | 107.2 mm |
| Diameter | 14.1 cm |
| Weight | 950 g |
| Sustainability | |
| Compliance certificates | BIS, CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UL, WEEE |
| Packaging content | |
| Number of cameras | 1 |
| Warranty | |
| Base Warranty | Non Non |
