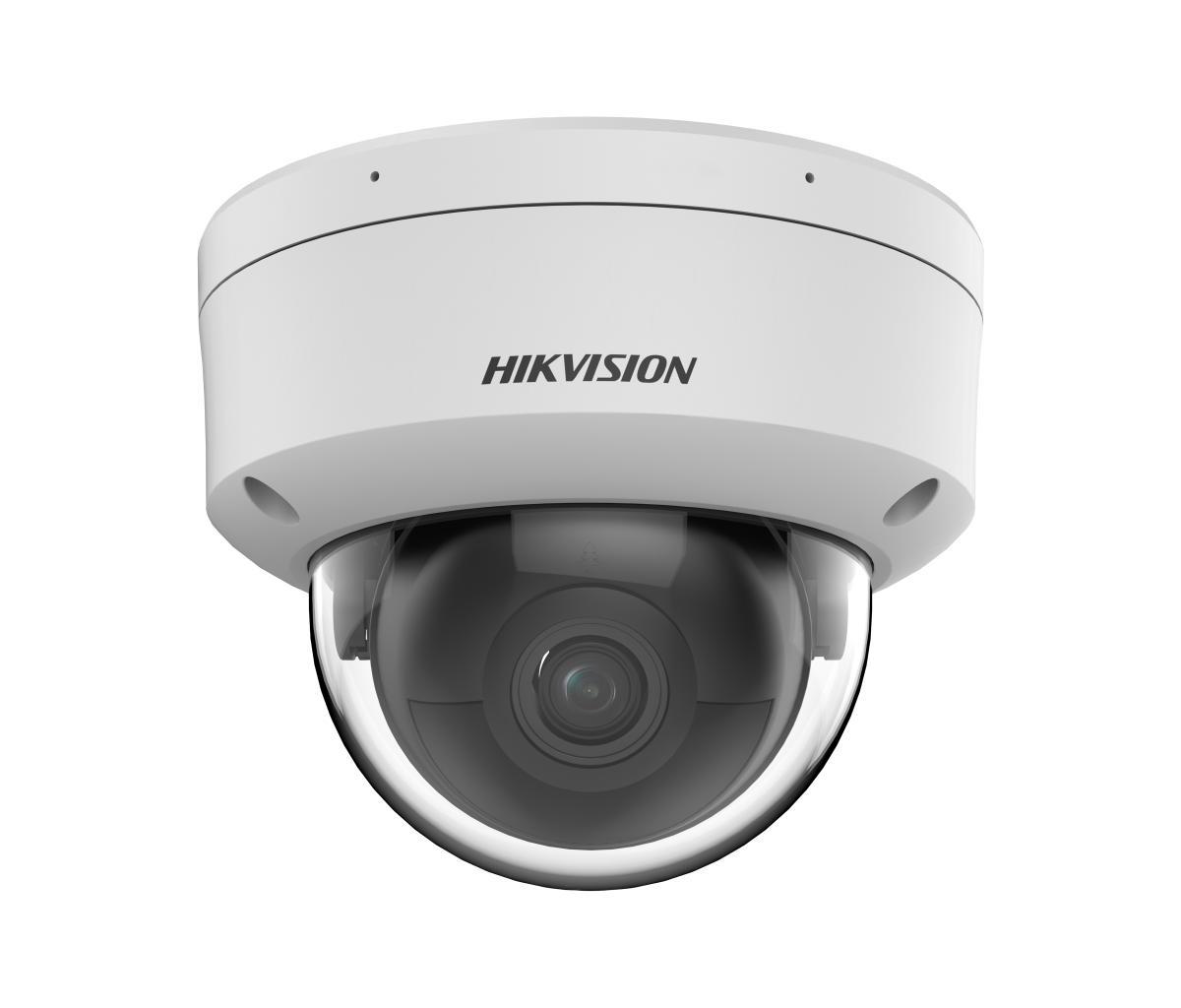

Ds-2cd3146g2-is(2.8mm)(h)(ef)
ITCurry #: T4498521 | Article #: DS-2CD3146G2-IS(2.8MM)(H)(EF)Flash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
246.98
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information
Discover Hikvision’s latest ultra-powerful network cameras
Hikvision’s Ultra-Series Network Cameras, known for their exceptional performance, are specifically designed to enhance overall security in virtually any environment. Equipped with durable hardware, advanced software capabilities, and the Hikvision Embedded Open Platform (HEOP) for third-party applications, these network cameras offer a cutting-edge security solution. Discover the surprising technology behind the Ultra-Series, providing unmatched reliability and scalability that significantly contributes to the success of systems integrators and installers across various markets. Explore how these powerful cameras can deliver critical, cost-effective solutions for your next installation by reading on.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Open platform version | HEOP 2.0 |
| AI software framework | Caffe, ONNX, PaddlePaddle, TensorFlow |
| Supported programming languages | C, C++ |
| Number of languages | 33 |
| Languages support | Multi |
| Dynamic range | 120 dB |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Fog proof | Yes |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 355ø |
| Lens viewing angle, horizontal | 101ø |
| Lens viewing angle, vertical | 54.2ø |
| Lens viewing angle, diagonal | 122ø |
| Tilt angle range | 0 - 75ø |
| Pan range | 0 - 355ø |
| Camera shutter speed | 1/100000 - 1/3 s |
| Number of Privacy masking areas | 4 |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Detect distance | 63 m |
| Observe distance | 25 m |
| Recognize distance | 12 m |
| Maximum aperture number | 1.4 |
| Identify distance | 6 m |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2668 x 1520 pixels |
| Total megapixels | 4 MP |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520 |
| Supported video modes | 360p, 480p, 720p, 1080p, 1520p |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Audio | |
| Audio formats supported | AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Bit rate range | 8 - 320 Kbit/s |
| Sample rates | 8 - 48 kHz |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP |
| Number of users | 32 user(s) |
| User access level | Administrator, Operator, User |
| Quality of Service (QoS) support | Yes |
| Live view | Yes |
| Number of simultaneous live view channels | 6 channels |
| Storage | |
| Built-in HDD | No |
| eMMC capacity | 2 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 512 GB |
| Internal memory | 60 MB |
| RAM capacity | 400 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Security | |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Password protection | Yes |
| Video motion detection | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection, Intrusion, Line crossing detection, People counting, Region entrance detection, Region exiting detection |
| Motion sensor | Yes |
| Heartbeat | Yes |
| Mirror | Yes |
| Digital watermark | Yes |
| Password reset via email | Yes |
| Pixel counter | Yes |
| Flash log | Yes |
| Human and vehicle targets classification | Yes |
| Audit log | Yes |
| Automatic Network Replenishment (ANR) | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption | 100 mA |
| Power consumption (max) | 7.5 W |
| Power consumption (Power over Ethernet (PoE)) | 9 W |
| DC output voltage | 12 |
| DC output current | 0.62 A |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 øC |
| Storage temperature (T-T) | -30 - 60 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Height | 97.6 mm |
| Diameter | 12.2 cm |
| Weight | 500 g |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 150 mm |
| Package height | 141 mm |
| Package weight | 700 g |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Warranty | |
| Base Warranty | Non Non |
