Interactive Display - Ds-d5c98rb/b - 98in - 3840ž2160 (4k/ Uhd)
ITCurry #: T4498808 | Article #: DS-D5C98RB/B-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

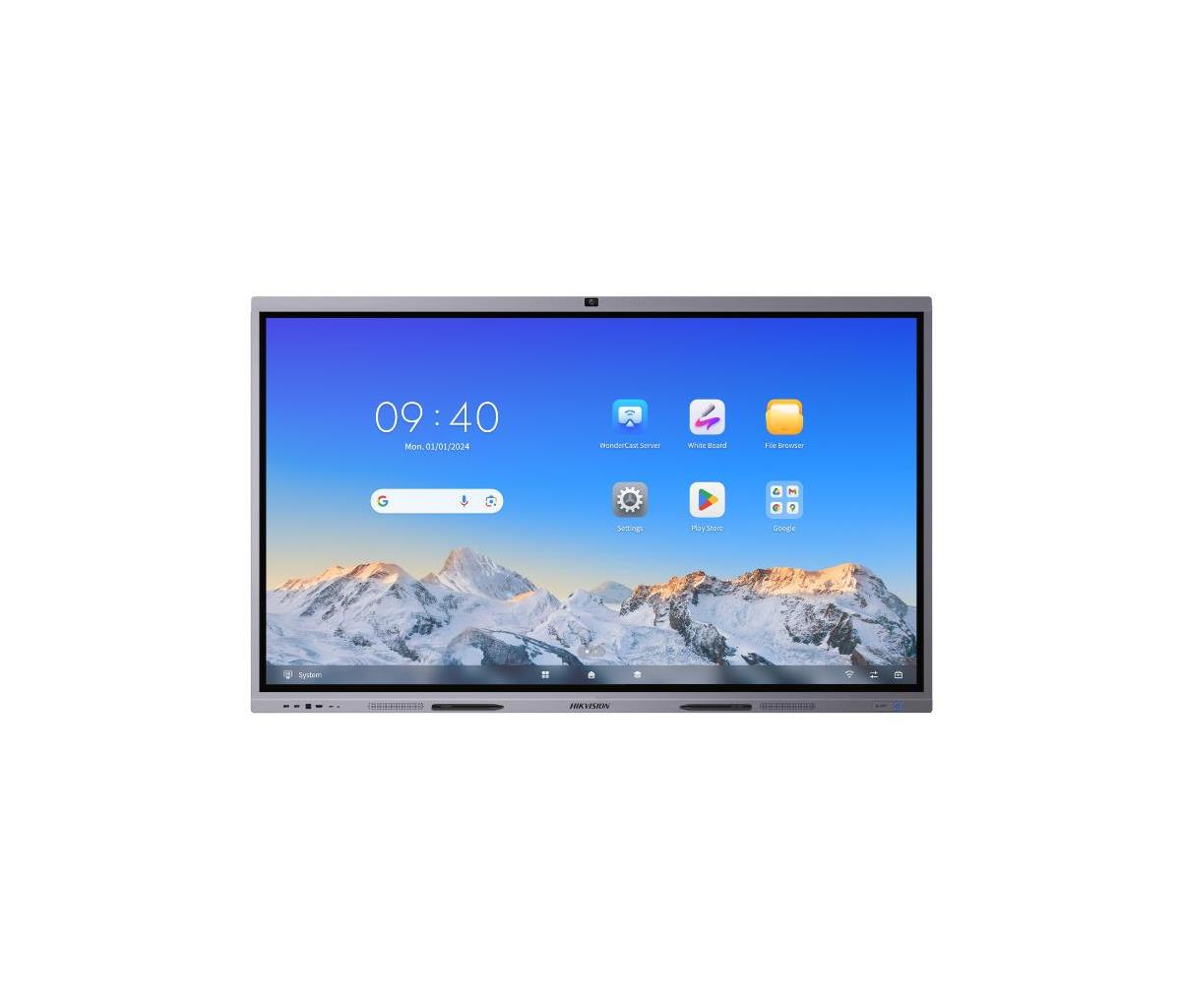

The Hikvision Interactive Flat Panel is a kind of newly developed intelligent teaching assistance product which integrates with the latest technologies of touch control, HD display, video processing, network communication, interactive control, and sound control. It can be widely applied to the classroom, online teaching, training center, etc.
| Display | |
| Display diagonal | 2.49 m (98") |
| Display technology | LED |
| Panel type | VA |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 600 cd/mý |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 50 |
| Multi-touch | Yes |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Response time | 5 ms |
| Contrast ratio (typical) | 5000:1 |
| Contrast ratio (dynamic) | 30000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 1.07 billion colours |
| Active display area (W x H) | 2158.848 x 1214.352 mm |
| Camera | |
| Built-in camera | Yes |
| Megapixel (approx.) | 48 MP |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 3 |
| RMS rated power | 65 W |
| Design | |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 1000 x 400 mm |
| Ports & interfaces | |
| HDMI ports quantity | 4 |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio (L/R) in | 1 |
| Computer system | |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor cores | 8 |
| Internal memory | 8 GB |
| Internal storage capacity | 128 GB |
| Performance | |
| HDCP | Yes |
| HDCP version | 2.3 |
| Power | |
| Power consumption (max) | 325 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 325 kWh |
| Power supply type | Internal |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Display width | 2219.8 mm |
| Display depth | 105.7 mm |
| Display height | 1336.4 mm |
| Display weight | 94 kg |
| Packaging data | |
| Package width | 2520 mm |
| Package depth | 1700 mm |
| Package height | 330 mm |
| Package weight | 137 kg |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Warranty | |
| Base Warranty | Non Non |
