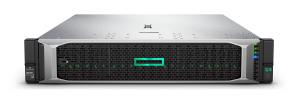

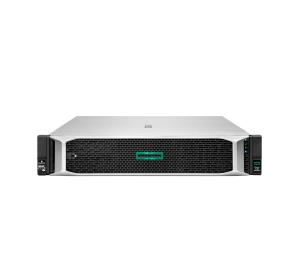

ProLiant DL380 Gen10 Plus - 4309Y - 64GB-R - 8SFF SR416i-a 2x480GB SATA SSD - 2x800W PS - EU
ITCurry #: 1171AKY0 | Article #: P77170-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Do your servers need increased performance in storage, compute, or expansion? The HPE ProLiant DL380 Gen10 Plus server is adaptable for diverse workloads and environments, providing you with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, this 2U/2P platform is capable for deployment in multiple environments, built on 3rd Generation Intel Xeon Scalable Processors, and backed by a comprehensive warranty. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL380 Gen10 Plus server offers improved data transfer rates and higher networking speeds.
What is new supporting point:
Supports 3rd Generation Intel Xeon Scalable Processors.
Support for PCIe Gen4, resulting in improved bandwidth and throughput.
Support for industry-standard OCP 3.0 Network Adapters.
Support for Trimodal (NVMe/SAS/SATA) HPE Smart Array controllers.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 3rd Generation Intel© Xeon© Scalable |
| Processor model | 4309Y |
| Processor frequency | 2.8 GHz |
| Processor boost frequency | 3.6 GHz |
| Efficient-core base frequency | 0.0028 GHz |
| Performance-core base frequency | 2.8 GHz |
| Processor cores | 8 |
| Processor cache | 12 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 16x DIMM |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 2 x 32 GB |
| Maximum internal memory | 8 TB |
| Storage | |
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| RAID support | Yes |
| Supported RAID controllers | HPE SR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 24G Controller |
| Optical drive type | No |
| Network | |
| LAN controller | Broadcom BCM5719 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | 8, for detailed descriptions refer to the QuickSpecs |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
| Chassis type | Rack (2U) |
| Performance | |
| Management platform | HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional, requires licenses) |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Power | |
| Power supply type | 2x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of redundant power supplies installed | 1 |
| Number of main power supplies | 2 |
| Weight & dimensions | |
| Width | 710 mm |
| Depth | 445.4 mm |
| Height | 87.5 mm |
| Other features | |
| Standard fans | 6x Maximum Performance Fans |
| Storage drive type | 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
| Security features | Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0 |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
