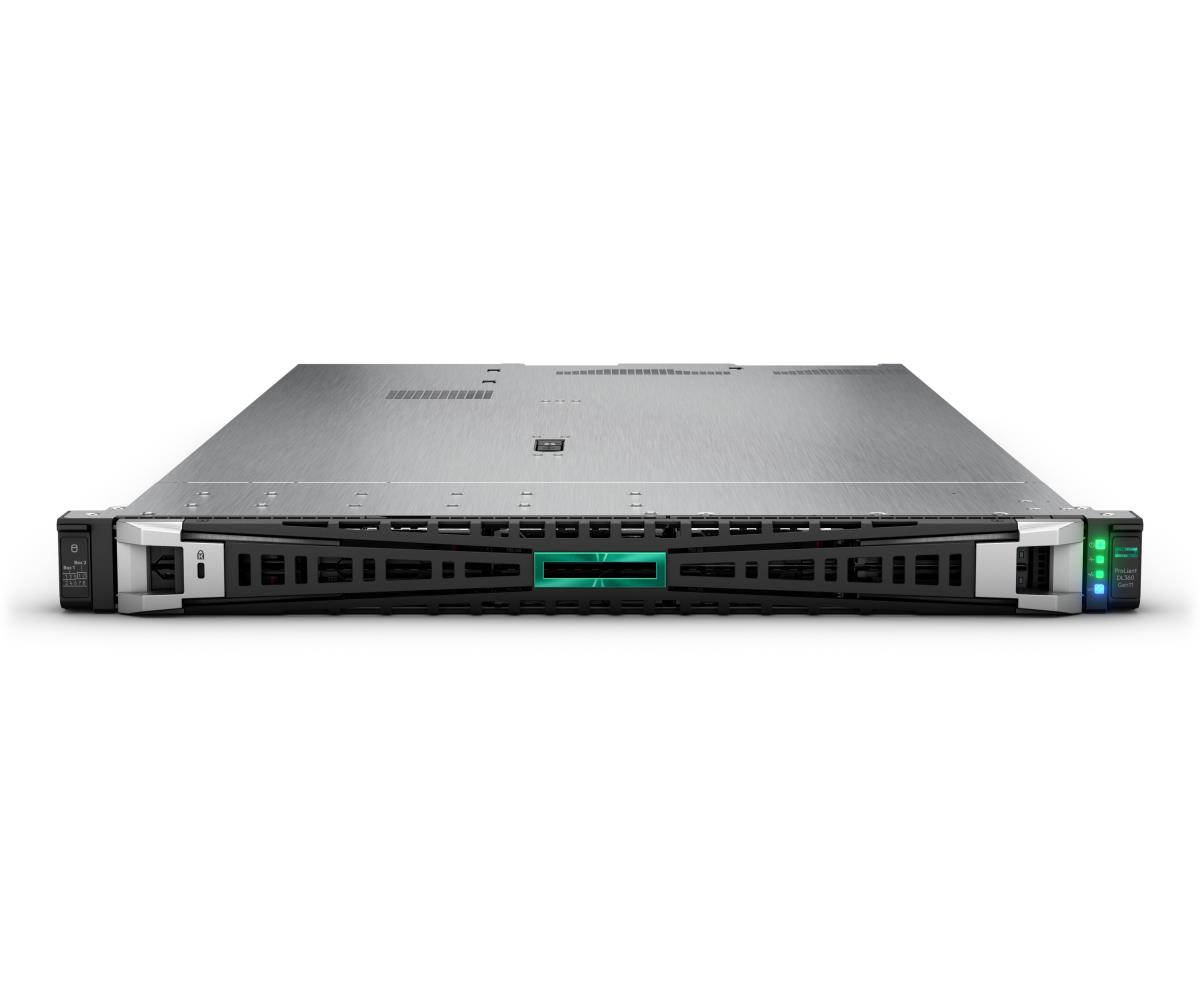

ProLiant DL360 Gen11 - 1p 6530 - 8x16GB-R - 8SFF MR216i-o 5x1.92TB SSD - 2x1000W PS - EU
ITCurry #: 1171ARM1 | Article #: P82659-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you looking for a scalable, compute-dense solution for hybrid cloud or other data workloads in a virtualized and containerized environment? The HPE ProLiant DL360 Gen11 server is a rack-optimized, 1U 2P solution that delivers exceptional compute performance, upgraded high-speed data transfer rate, and memory depth at 2P compute capability. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8 TB of memory, and 20 EDSFF drives as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL360 Gen11 server is a perfect solution for Electronic Design Automation (EDA), CAD, and VDI. The HPE ProLiant 360 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What is new supporting point:
Powered by 5th Gen Intel Xeon Scalable Processors that supports up to 64 cores & 385W, and 16 DIMMs for up to 8 TB of high bandwidth DDR5 memory up to 5600 MHz.
16 DIMMs per processor for up to 8 TB total DDR5 memory per server with increased performance, High Bandwidth Memory (HBM) support, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots.
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports up to three single-wide (SW) GPUs[1] to accelerate graphic intense workloads.
Supports Liquid Cooling Modules for highest thermal design points (TDPs).
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© Gold |
| Processor generation | Intel Xeon Scalable 5th Gen |
| Processor model | 6530 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 4 GHz |
| Processor cores | 32 |
| Processor cache | 160 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 32x DIMM |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 8 x 16 GB |
| Maximum internal memory | 8 TB |
| Storage | |
| Total storage capacity | 9.6 TB |
| Number of SSDs installed | 5 |
| SSD capacity | 1.92 TB |
| SSD interface | SATA III |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 8 |
| RAID support | Yes |
| Supported RAID controllers | HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Network | |
| LAN controller | Broadcom BCM57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | 2-slots (x16 FH, x16 HH) as standard. Upgradeable to 3rd slot in HH (or remove Slot 2 bracket to be FH at Slot 3) in a 2nd processor configuration. And maximum 2 OCP 3.0 PCIe5 slots. |
| VGA (D-Sub) ports quantity | 1 |
| Number of management ports | 1 pc(s) |
| Design | |
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Rack mounting | Yes |
| Performance | |
| Management platform | Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, HPE OneView Advanced and HPE Compute Ops Management Refer to the iLO 6 User Guide |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Operating system installed | No |
| Power | |
| Power supply type | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Number of main power supplies | 2 |
| Weight & dimensions | |
| Width | 753.1 mm |
| Depth | 434.6 mm |
| Height | 42.9 mm |
| Other features | |
| Standard fans | 7x High Performance Fans |
| Storage drive type | 5x HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
| Security features | UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits. For full security features refer to the QuickSpecs. |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
