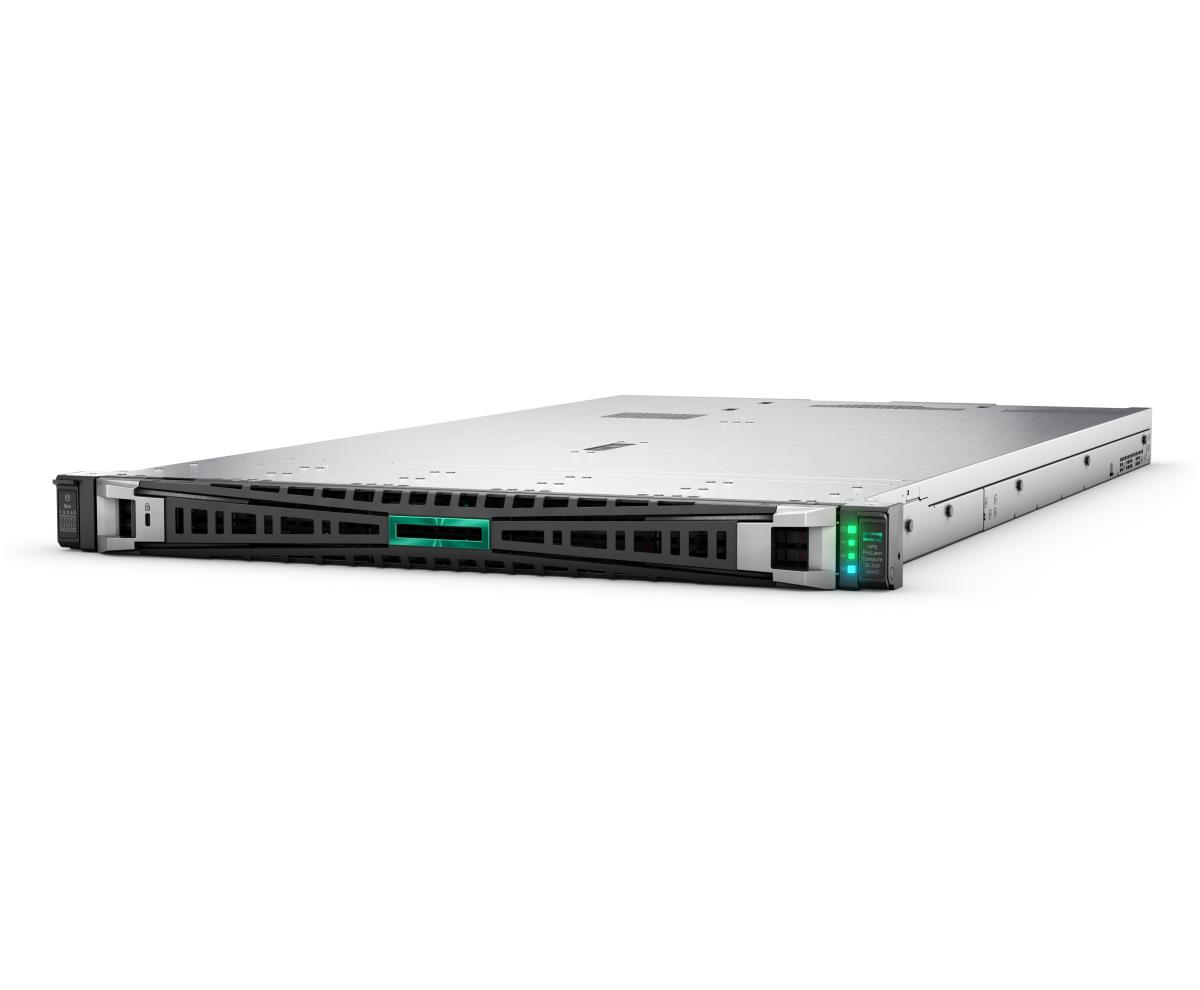

ProLiant Compute DL360 Gen12 - 6505P - 2x32GB-R - 8SFF MR408i-o 2x480GB SSD - 2x1000W PS - EU
ITCurry #: 1171ATK0 | Article #: P89233-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you looking for a compact, rack-optimized two-socket server that supports hybrid cloud workloads? The HPE ProLiant Compute DL360 Gen12 is a compact 1U 2P server that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications. Powered by Intel Xeon 6 processors with up to 144 cores and up to 8 TB of memory as well as 20 EDSFF E3.S NVMe drives, the HPE ProLiant Compute DL360 Gen12 is an ideal hybrid cloud platform for enterprise applications and workloads. This server also provides extreme scalability through a hybrid front storage cage that supports not only SFF and E3.S drives, but also an OS Boot device and two front OCP NICs as optional. The HPE ProLiant Compute DL360 Gen12 is engineered for your future, with next-level security, optimized performance and efficiencies, and automated, AI-driven productivity.
What is new supporting point:
Ability to use up to 10 SFF or 20 EDSFF E3.S drives as well an OS Boot device and OCP NICs in the front cage.
Up to three single-wide (SW) GPUs.
HPE Integrated Lights-Out 7 (iLO 7) server management software with streamlined manageability through a redesigned GUI, Redfish API, and increased security via patented secure enclave technology.
Intel Xeon 6 processors that support up to 144 cores, up to 8 TB of DDR5 memory at speeds up to 6400 MT/s, and up to 2x average higher performance for general compute versus previous generations.
Optional front accessible boot device for quicker access and redesigned intake on front of chassis for optimal airflow and enhanced thermal efficiency.
Three cooling options — air-cooling (including air baffle), closed-loop liquid cooling, and direct liquid cooling for performance/energy efficiency to support sustainability initiatives.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© |
| Processor frequency | 2.2 GHz |
| Processor cores | 12 |
| Processor cache | 48 MB |
| Number of processors installed | 1 |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 32 GB |
| Storage | |
| Total storage capacity | 960 GB |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| Supported RAID controllers | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
| Chassis type | Rack (1U) |
| Power | |
| Power supply | 1000 W |
| Number of main power supplies | 2 |
| Warranty | |
| Base Warranty | Non Non |
