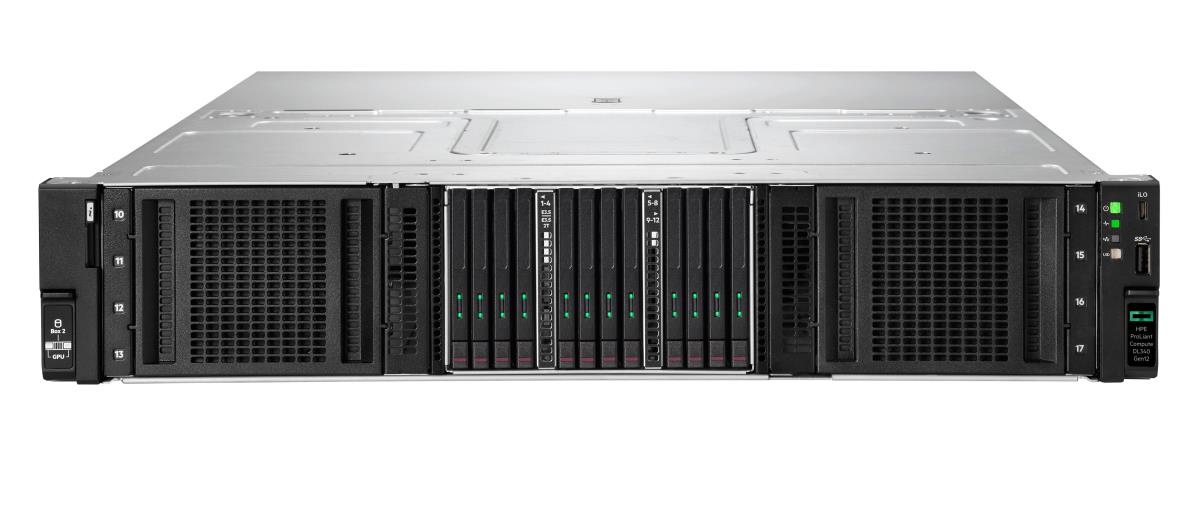

ProLiant Compute DL340 Gen12 - 1p 6515P - 1x64GB-R - 8SFF MR416i-o - 2x1000W PS - EU
ITCurry #: 1171ATK2 | Article #: P87741-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Do you need a 2U single-socket server that highlights reduced power consumption and better thermals for your data and storage-centric workloads that need more PCIe lanes? The HPE ProLiant Compute DL340 Gen12 is a 2U 1P server that offers three CTO chassis that support SFF, LFF, and GPU configurations. The 3-box modular front design enhances the configuration flexibility. Due to the configuration flexibility and the energy efficiency (reduced power consumption due to better thermals within a 2U chassis), the HPE ProLiant Compute DL340 Gen12 server is ideal for customers that have a requirement for Infrastructure-as-a-Service (IaaS), Platform-as-a Service (PaaS), and Software-as-a-Service (SaaS) workloads. Powered by Intel Xeon 6 processors with up to 144 cores, increased memory capability (up to 4 TB), and high-speed PCIe Gen5, the HPE ProLiant Compute DL340 Gen12 server is a great 2U single-socket performance solution driving better datacenter efficiency.
What is new supporting point:
Powered by Intel Xeon 6 processors; Up to 144 cores per socket. Increased memory bandwidth to 6400 MT/s, up to 4 TB DDR5 memory capacity.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© |
| Processor model | 6515P |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 3.8 GHz |
| Processor cores | 16 |
| Processor cache | 72 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 16x DIMM |
| Memory clock speed | 6400 MHz |
| Memory layout (slots x size) | 1 x 64 GB |
| Maximum internal memory | 4 TB |
| Storage | |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 8 |
| RAID support | Yes |
| Supported RAID controllers | HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Network | |
| LAN controller | Broadcom BCM57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | Up to 6 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs |
| VGA (D-Sub) ports quantity | 1 |
| Number of management ports | 1 pc(s) |
| Design | |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Rack mounting | Yes |
| Performance | |
| Management platform | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses), HPE Compute Ops Management (optional subscription available) |
| Software | |
| Operating system installed | No |
| Power | |
| Power supply type | 2x HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Number of main power supplies | 2 |
| Weight & dimensions | |
| Width | 639.5 mm |
| Depth | 448 mm |
| Height | 87.5 mm |
| Other features | |
| Standard fans | 6x Performance Fans |
| Storage drive type | None ship standard, 8 SFF supported |
| Security features | For full security features refer to the QuickSpecs |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
