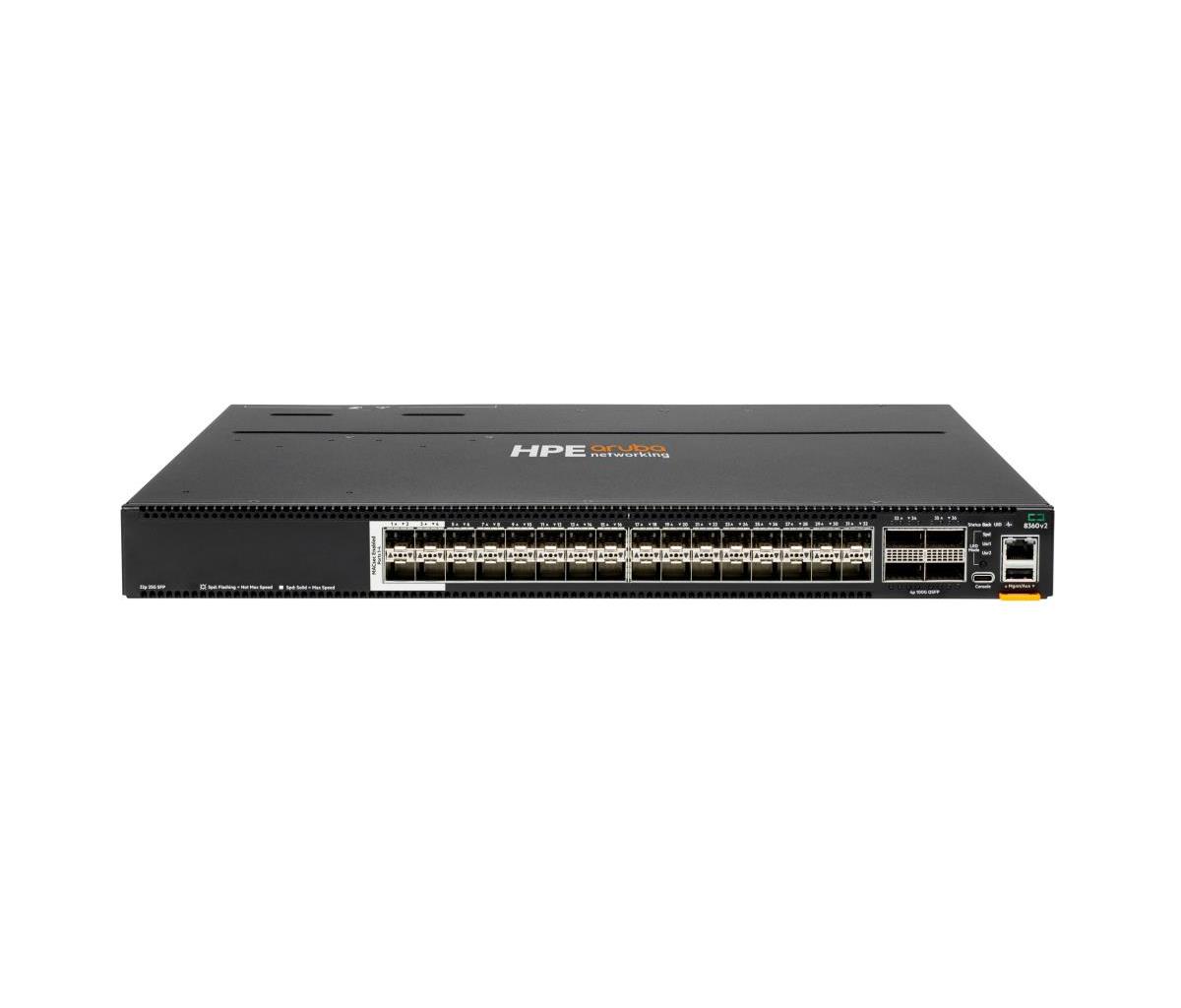

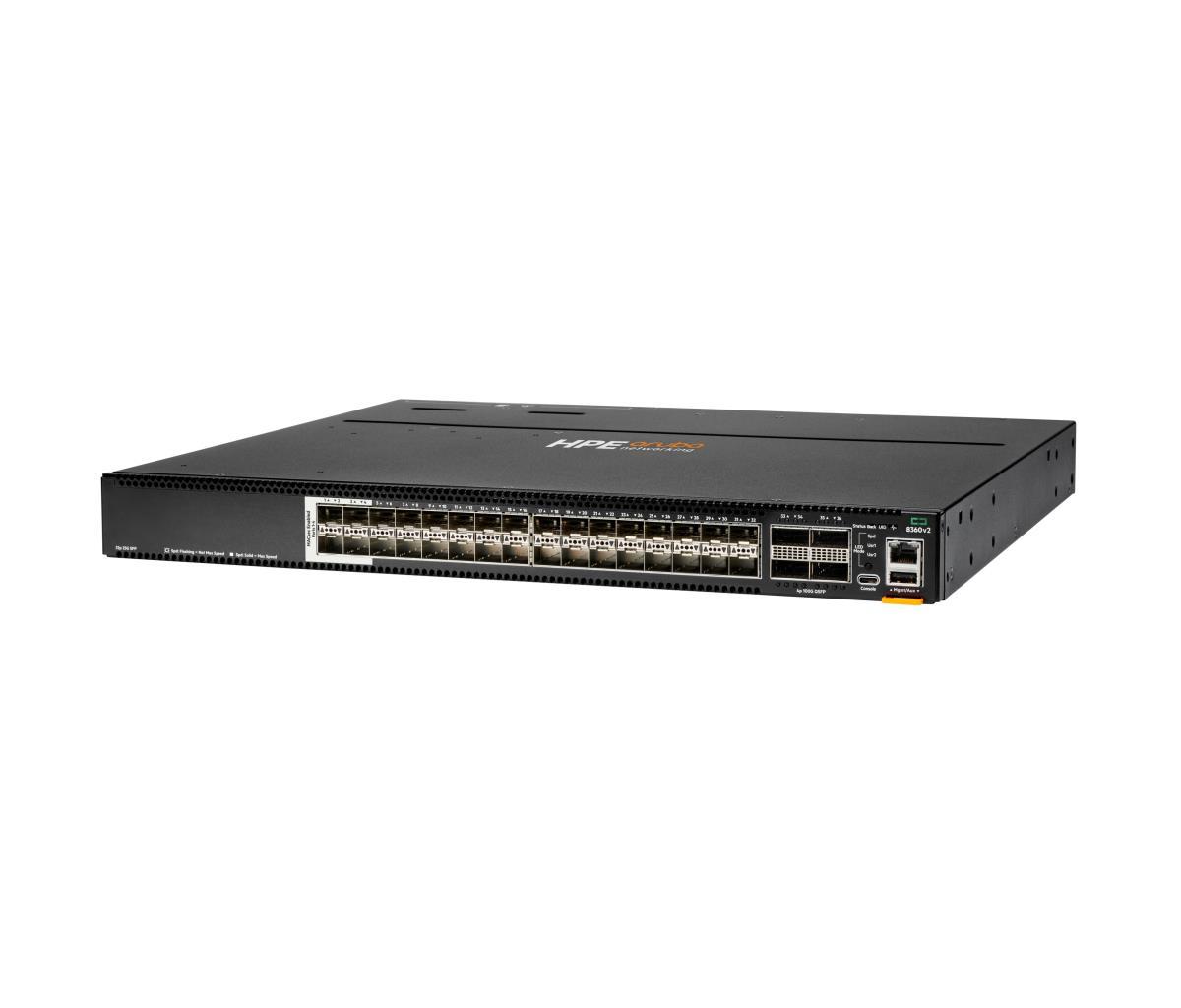

Aruba Networking 8360-32Y4C v2 32-port 25G SFP/SFP+/SFP28 4 Sec 4-port 100G QSFP+/QSFP28 Switch
ITCurry #: 1171AKL1 | Article #: JL717C-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE Aruba Networking CX 8360 v2 Switch Series is designed for next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. The switch series provides up to 4.8 Tbps switching capacity, with line-rate Gigabit Ethernet interfaces including support for HPE Smart Rate (1/2.5/5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps connectivity in a compact 1U form factor. These switches deliver a fantastic investment for customers wanting to migrate from older 1/10GbE to faster 25GbE, or from 10/40GbE uplinks to 50/100GbE ports. In addition, the 48 and 32 x 25G port CX 8360 models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100G ports on the CX 8360 48-port model.
What is new supporting point:
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) redundancy and redundant power supplies and fans
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 32 |
| SFP+ module slots quantity | 32 |
| QSFP+ module slots quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-A ports quantity | 1 |
| Fiber ports quantity | 36 |
| Fiber optic connector | SFP28, QSFP28 |
| QSFP28 ports quantity | 4 |
| SFP28 ports quantity | 32 |
| Network | |
| 10G support | Yes |
| Port mirroring | Yes |
| Data transmission | |
| Switching capacity | 2400 Gbit/s |
| Throughput | 1309 Mpps |
| Packet buffer memory | 32 MB |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Silver, Black |
| Reset button | Yes |
| Redundant fans support | Yes |
| Wall mountable | Yes |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 1800 MHz |
| Flash memory | 32000 MB |
| Power | |
| Power source | AC/DC |
| Power supply included | No |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 425 W |
| Power consumption note | Maximum: 425W Idle: 120W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Memory and processor | CPU: 1.8 GHz 4-core 64-bit RAM: 16 GB Flash/Storage: 32 GB Packet Buffer: 32 MB |
| I/O ports | 28-port of 1/10/25GbE (SFP/SFP+/SFP28) 4-port of 10/25GbE (SFP+/SFP28) with MACsec 4-port of 40/100GbE QSFP+/QSFP28 (optional 1GBASE-T SFP, 10GBASE-T SFP+ transceivers and 4 x 10/25G breakout cables supported) |
| Performance management | RJ45 serial and USB-C console RJ45 Ethernet port USB-Type A |
| Fan | 3 field-replaceable and hot-swappable fans |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Weight & dimensions | |
| Depth | 44.2 mm |
| Warranty | |
| Base Warranty | Non Non |
