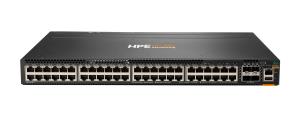

Aruba 6410 96-port 1GbE Class PoE 4 and 4-port SFP56 Switch
ITCurry #: 1171ZE39 | Article #: JL741A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Aruba CX 6400 Switch Series is a modern, flexible and intelligent family of high availability modular switches ideal for use from access to core and into the data center.
A powerful distributed architecture supports scalable, non-blocking performance to future-proof your network for tomorrow’s unpredictable demands. Versatile 5 and 10 slot chassis support speeds of up to 100GbE, high-power PoE, multi-gigabit Ethernet, and redundant management, power and fans for a highly available network.
A cloud-centric design with a fully programmable OS delivers automation and simplicity, including easy-to-use configuration tools for error-free installs. Built-in monitoring and analytics across the network provide operators with immediate troubleshooting and problem resolution insights.
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 96 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3z |
| 10G support | Y |
| Link aggregation | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Data transmission | |
| Switching capacity | 28000 Gbit/s |
| MAC address table | 29490 entries |
| Security | |
| DHCP features | DHCP relay |
| Access Control List (ACL) | Y |
| IGMP entries | 8000 |
| Multicast features | |
| Multicast support | Y |
| MLD entries | 4000 |
| Protocols | |
| Routing protocols | OSPF, OSPFv3 |
| Design | |
| Product colour | Black |
| Certification | 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 EN62368-1:2014 IEC 60950-1:2005 Ed.2; AM 1:2009+A2:2013 IEC 62368-1 Ed. 2 IEC 60825:2007 (Applies to products with lasers) UL 60950-1 CSA 22.2 No 60950-1 UL 62368-1 Ed. 2 |
| Performance | |
| Built-in processor | Y |
| Processor frequency | 1700 MHz |
| Internal memory | 4096 MB |
| Flash memory | 32000 MB |
| Power | |
| Power supply included | N |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) power per port | 30 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
| Weight & dimensions | |
| Width | 442.6 mm |
| Depth | 448.5 mm |
| Height | 528.8 mm |
| Weight | 58.3 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
