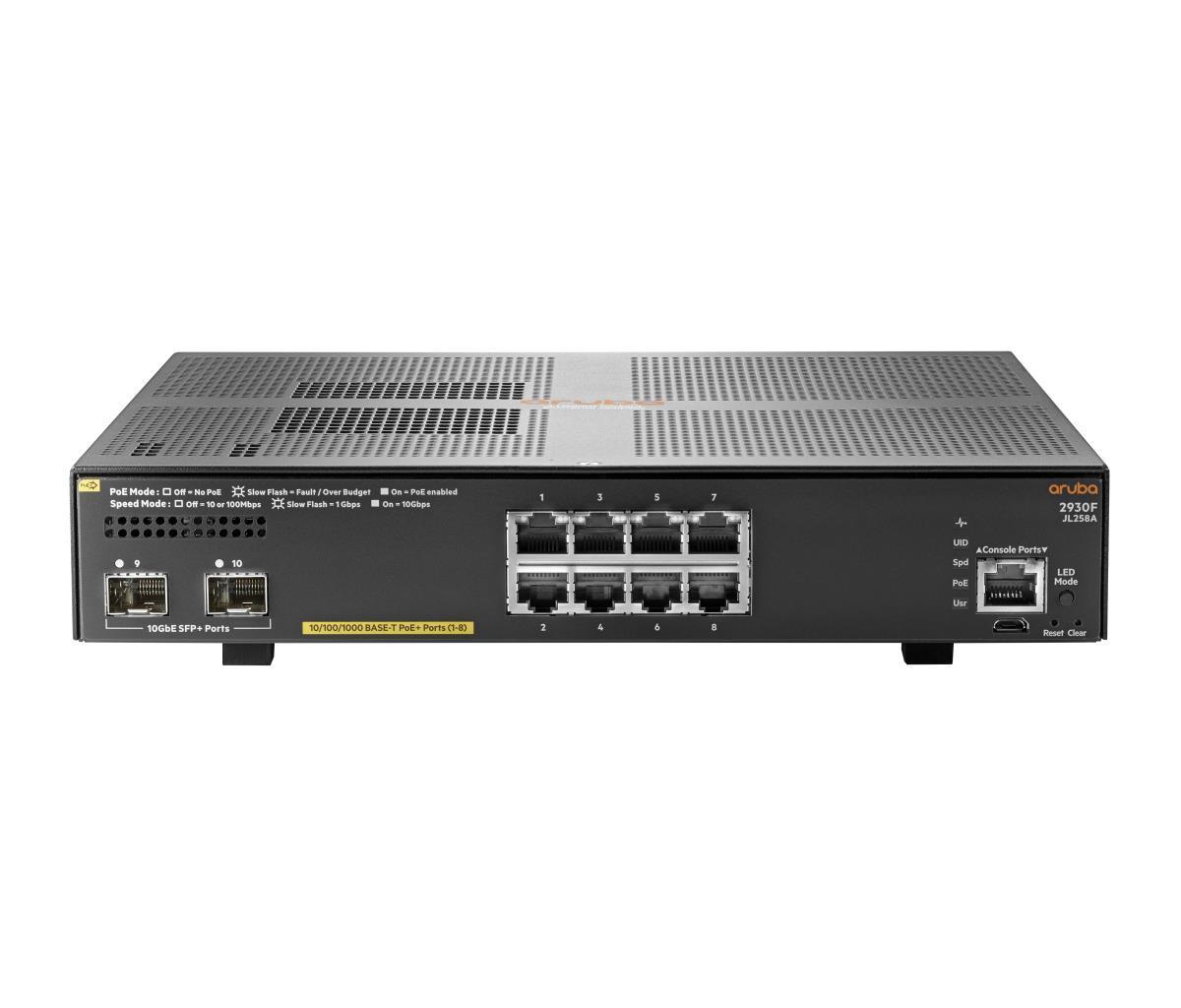

Aruba 2930F 8G PoE+ 2SFP+ Switch, (8) RJ-45 autosensing 10/100/1000 PoE+ ports
ITCurry #: 1171ZR59 | Article #: JL258A#AC3-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F series delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What is new supporting point:
Scale with 8-member stacking
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45/micro-USB |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-sensing | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.7 Mpps |
| MAC address table | 32768 entries |
| Latency (1 Gbps) | 3.8 æs |
| Latency (10 Gbps) | 1.6 æs |
| Packet buffer memory | 12.38 MB |
| Security | |
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| Authentication type | RADIUS, TACACS+ |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1, SNMPv2, SNMPv3 |
| Routing protocols | RIPng, VRRP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Performance | |
| Virtual stacking (units) | 8 |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 4096 MB |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 155 W |
| Power consumption note | 155W (maximum) |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 125 W |
| Other features | |
| Latency | 1000 Mb Latency: < 3.8 æs 10 Gbps Latency: < 1.6 æs |
| Memory and processor | Dual Core Arm Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC |
| I/O ports | 8x RJ-45 autosensing 10/100/1000 PoE+ ports 2x SFP+ 1/10GbE ports PHY-less |
| Performance management | HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central network management HPE IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Weight (imperial) | 2 kg (4.41 lbs) |
| Dimensions (W x D x H) (imperial) | 43.9 x 254 x 254 mm (1.73 x 10 x 10") |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 58.6 BTU/h |
| Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 254 mm |
| Height | 254 mm |
| Weight | 2 kg |
| Warranty | |
| Base Warranty | Non Non |
