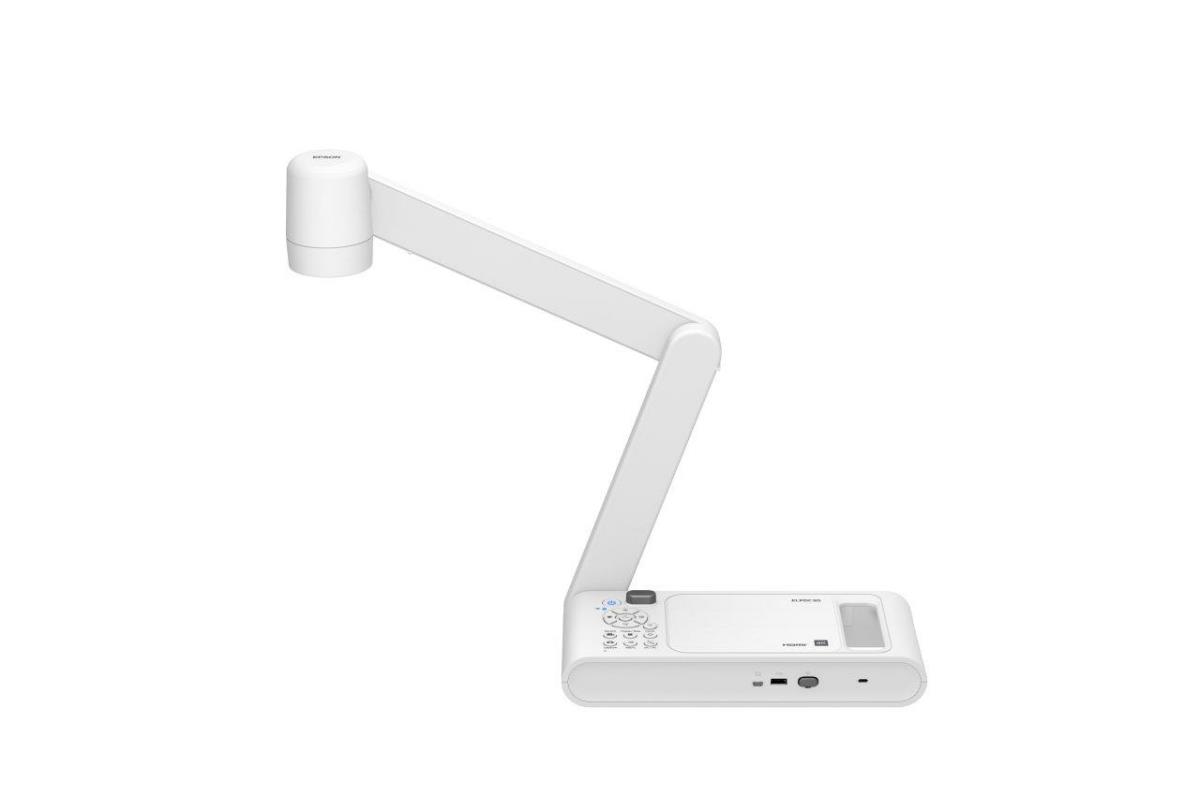

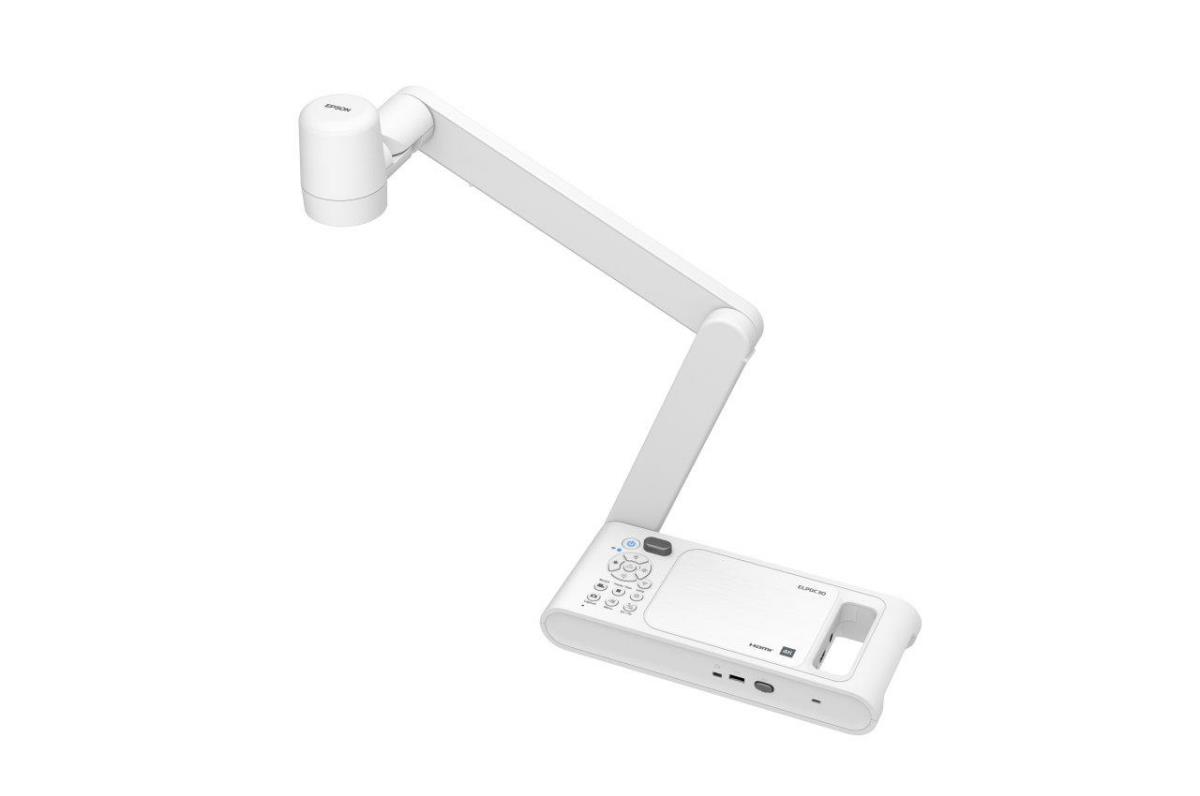

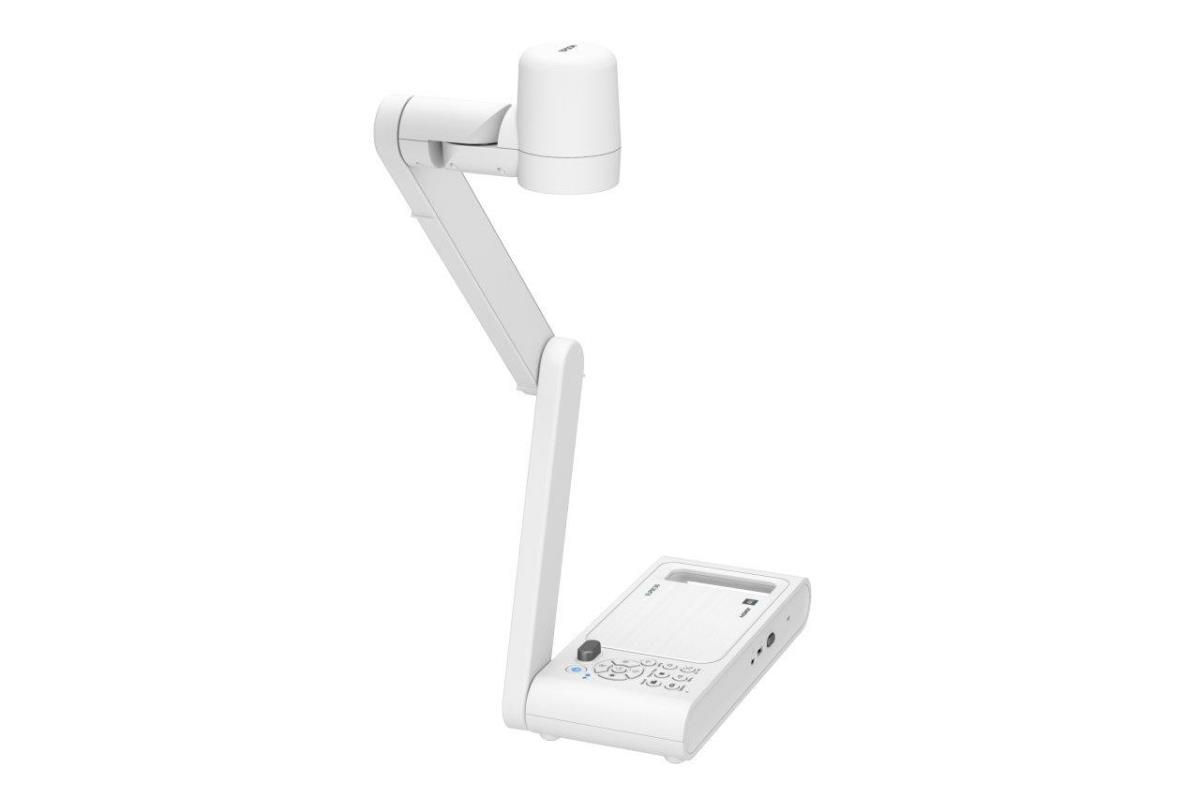

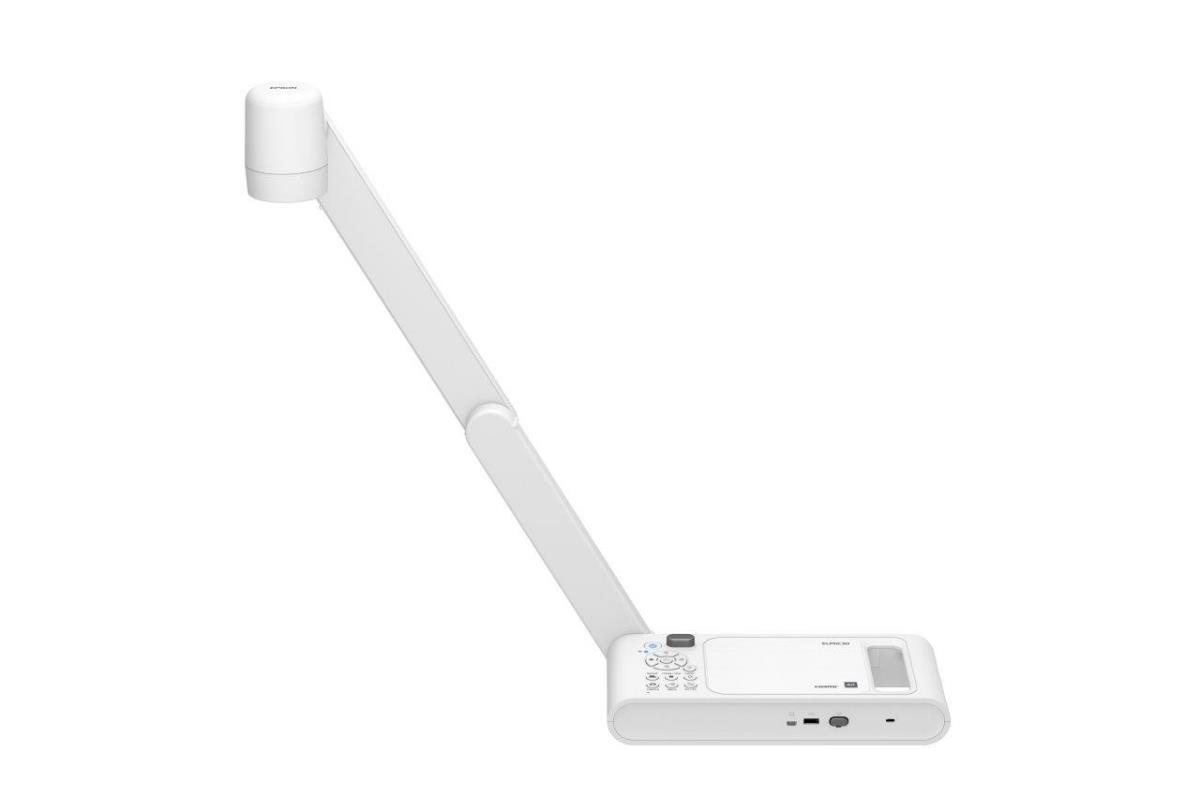

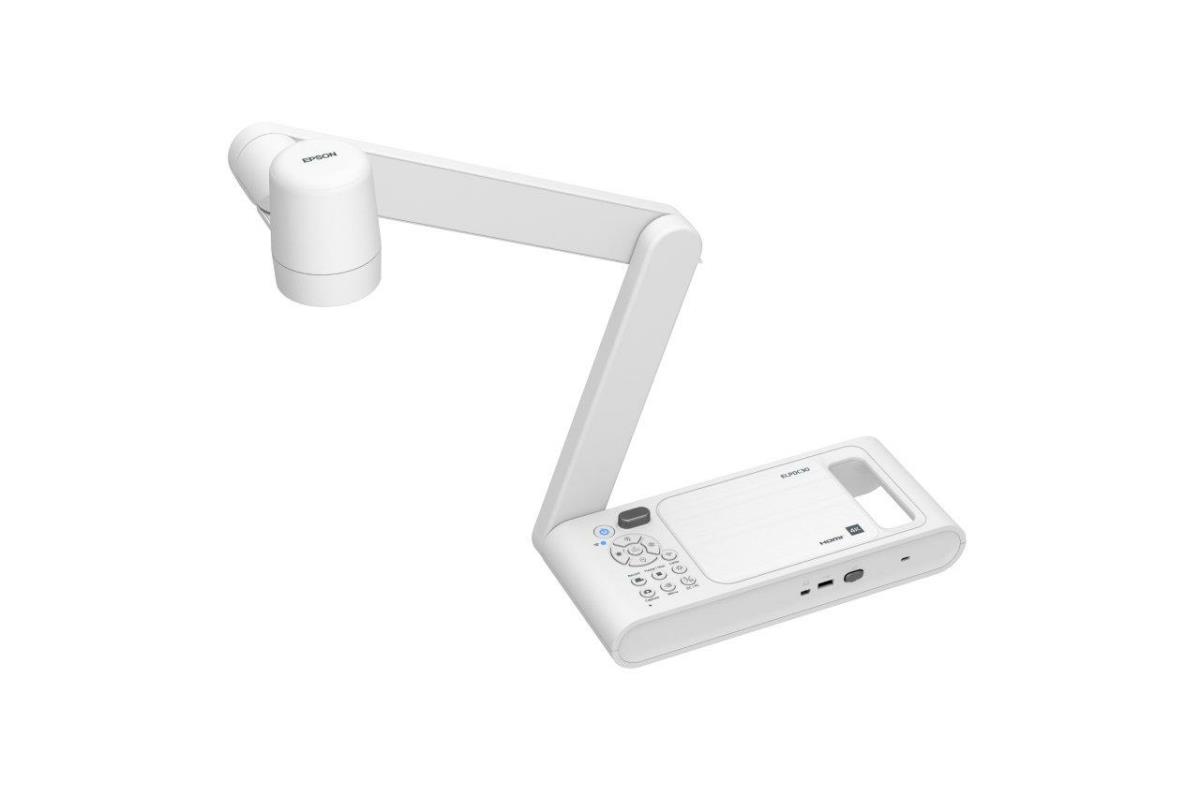

4K UHD wireless visualiser
The ELPDC30 4K UHD visualiser, with 60fps imaging and 230x zoom ratio, enables teachers to capture and share content in high-definition and in real-time, providing impressive and seamless content. The 13 mega-pixel camera makes learning both collaborative and inspirational, while the wireless connectivity adds real flexibility to where the content can be shared.
The ELPDC30 is perfect for teachers who want to transform digital learning. Thanks to 4K UHD resolution and the 13 mega-pixel camera, image quality is stunning in every learning setting. It has a shooting area up to A3, and when combined with an Epson projector the content can be displayed on a large screen that's accessible to all students. Add in 230x zoom ratio and every detail can be shared and discussed in perfect clarity.

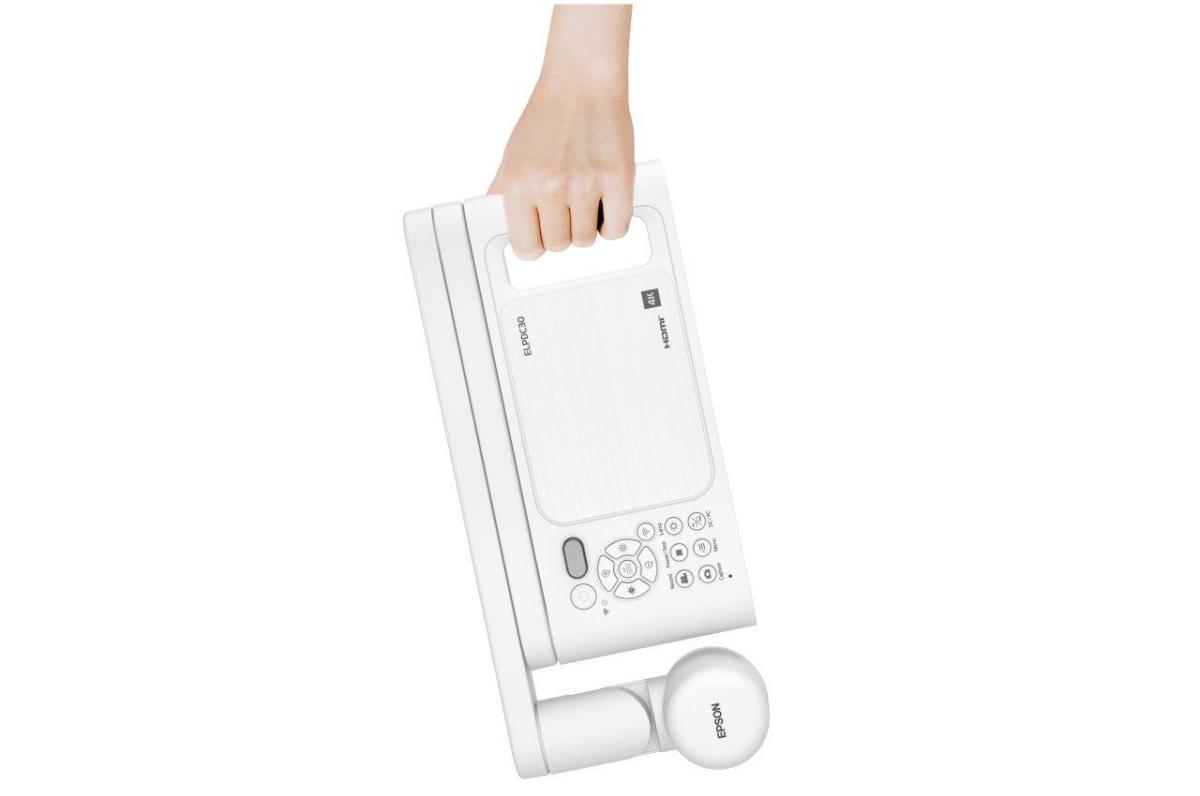

The ELPDC30 can be connected directly to the main display wirelessly or via Miracast at 30fps (60fps max without Miracast), without being limited by HDMI connectivity. Being compact, lightweight and having a built-in carry handle, makes handling safe and easy.
The microscope attachment means the smallest content can be viewed at the largest of scales, while USB memory storage of up to 32GB gives the ELPDC30 the ability to record, capture and store images for future sessions and classes.

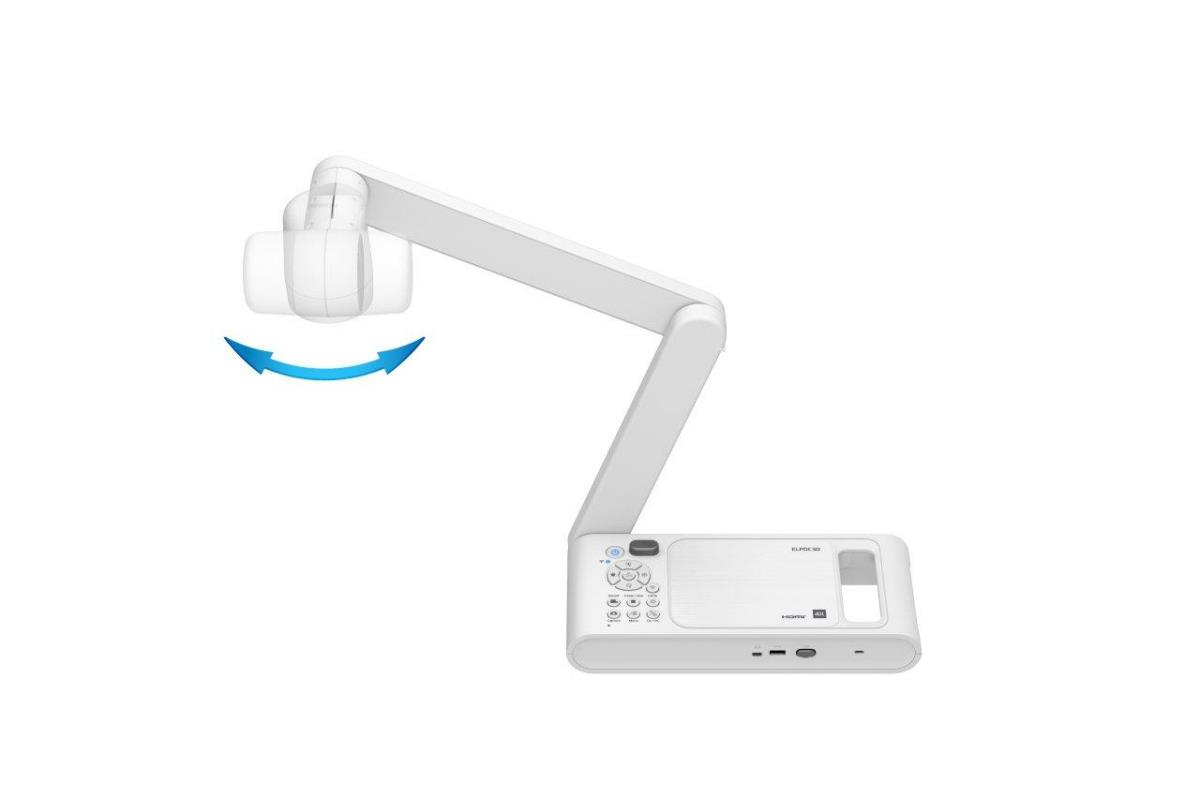

The flicker-reduction feature ensures a comfortable viewing experience, making it a healthy choice for young eyes, and a flexible mechanical head with built-in LED light enhances the content being shown.
An optional carry case provides extra protection when moved between rooms or locations and, if the ELPDC30 needs to be secured, it comes with a Kensington lock.
| Camera | |
| Effective sensor resolution | 13 MP |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
| Sensor type | CMOS |
| Supported graphics resolutions | 320 x 180, 320 x 240, 320 x 288 (QVGA), 640 x 360, 640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1920 |
| HD type | 4K Ultra HD |
| Maximum frame rate | 60 fps |
| Lens system | |
| Auto focus | Yes |
| Optical zoom | 23x |
| Digital zoom | 10x |
| Shooting area (WxD) | 297 x 420 mm |

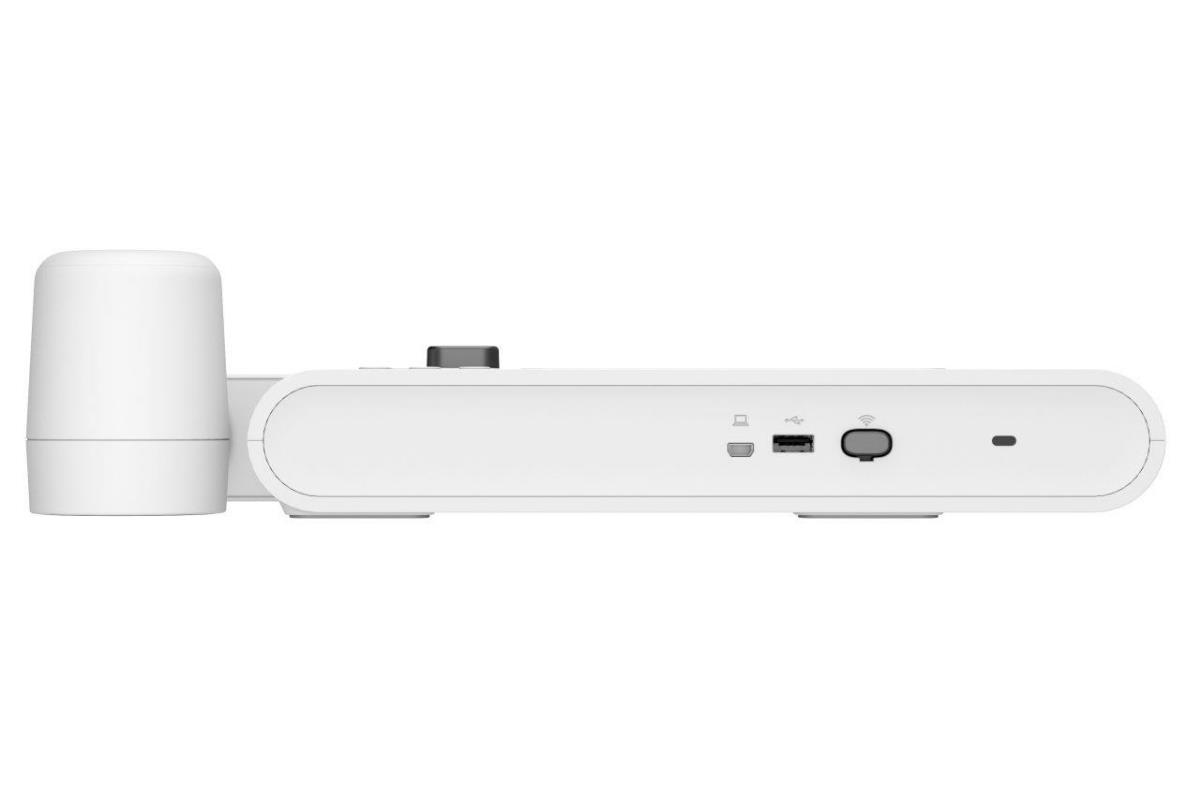

| Ports & interfaces | |

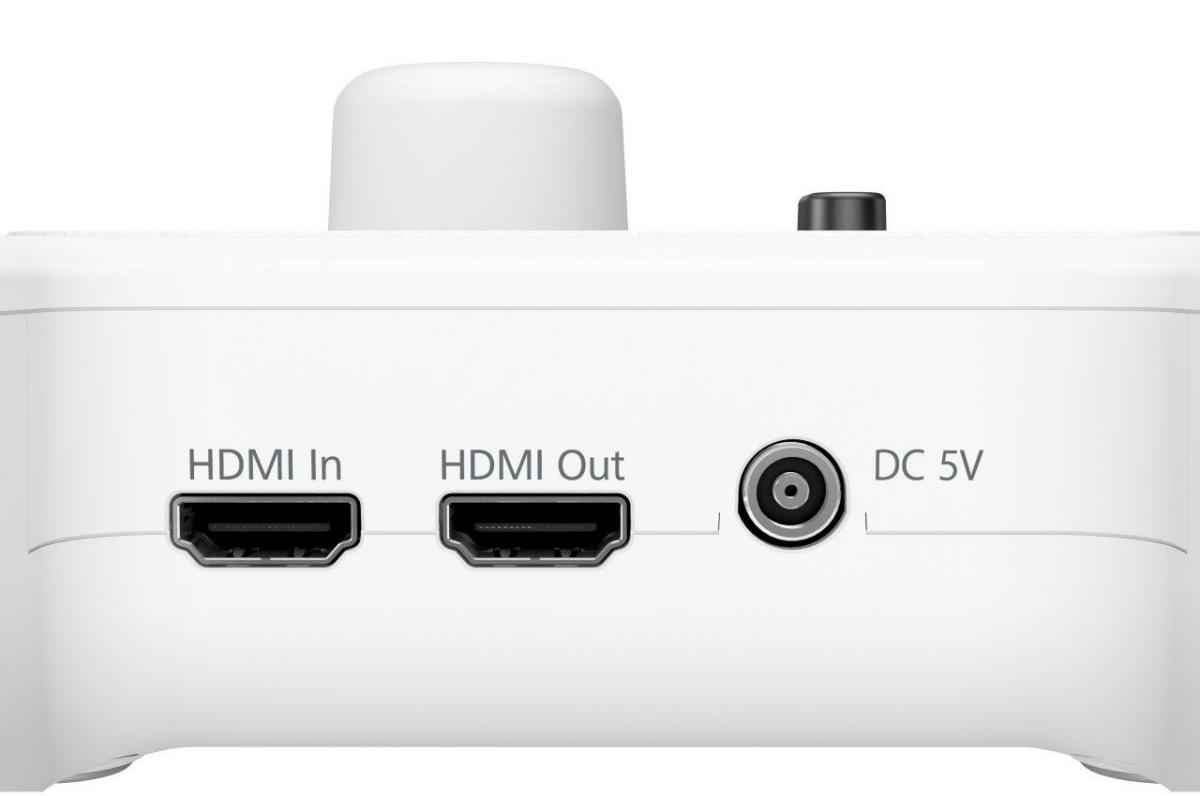

| Interface | USB/HDMI/Wi-Fi |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| USB connector type | Mini-USB B, USB Type-A |
| USB 1.1 ports quantity | 1 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Technical details | |
| Product colour | White |

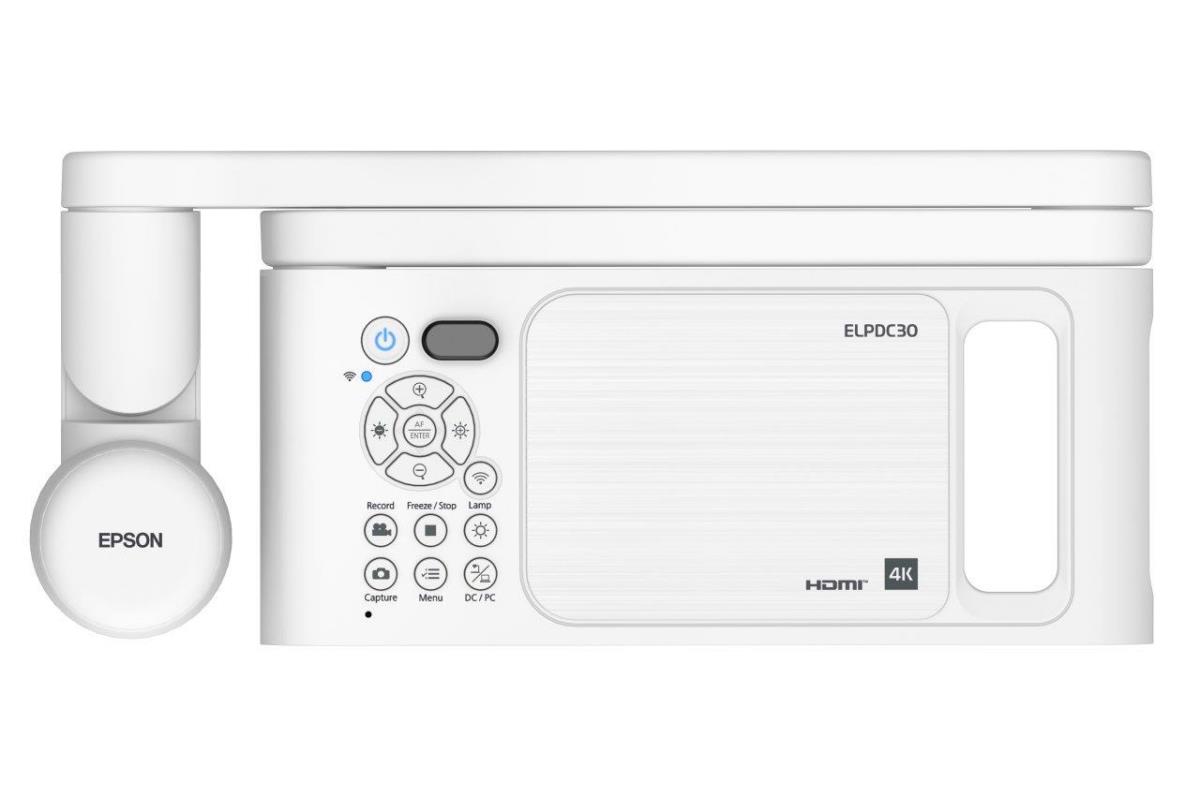

| Control type | Buttons |
| Display modes | Microscope, Motion |
| Anti-flicker | Yes |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Box contents | AC adapter, HDMI Cable 1.8m, Main unit, Microscope Adapter, Power cable, Quick Setup Guide, Remote control incl. batteries, USB cable |
| Bundled software | Easy Interactive Tools, Epson Connect Tool for Document Camera |
| Frame rate | 60 fps |
| Security features | Kensington lock |
| Special features | Auto focus, Freeze, Parallel video output, Split screen, Video capture and replay, Zoom |
| Zoom capability | Yes |
| Warranty period | 5 year(s) |
| Power consumption | 9.6 Watt, 0.5 Watt (standby) |
| Power | |
| Power consumption (typical) | 9.6 W |
| Power consumption (standby) | 0.5 W |
| Weight & dimensions | |
| Width | 586 mm |
| Depth | 159 mm |
| Height | 554 mm |
| Weight | 2.8 kg |

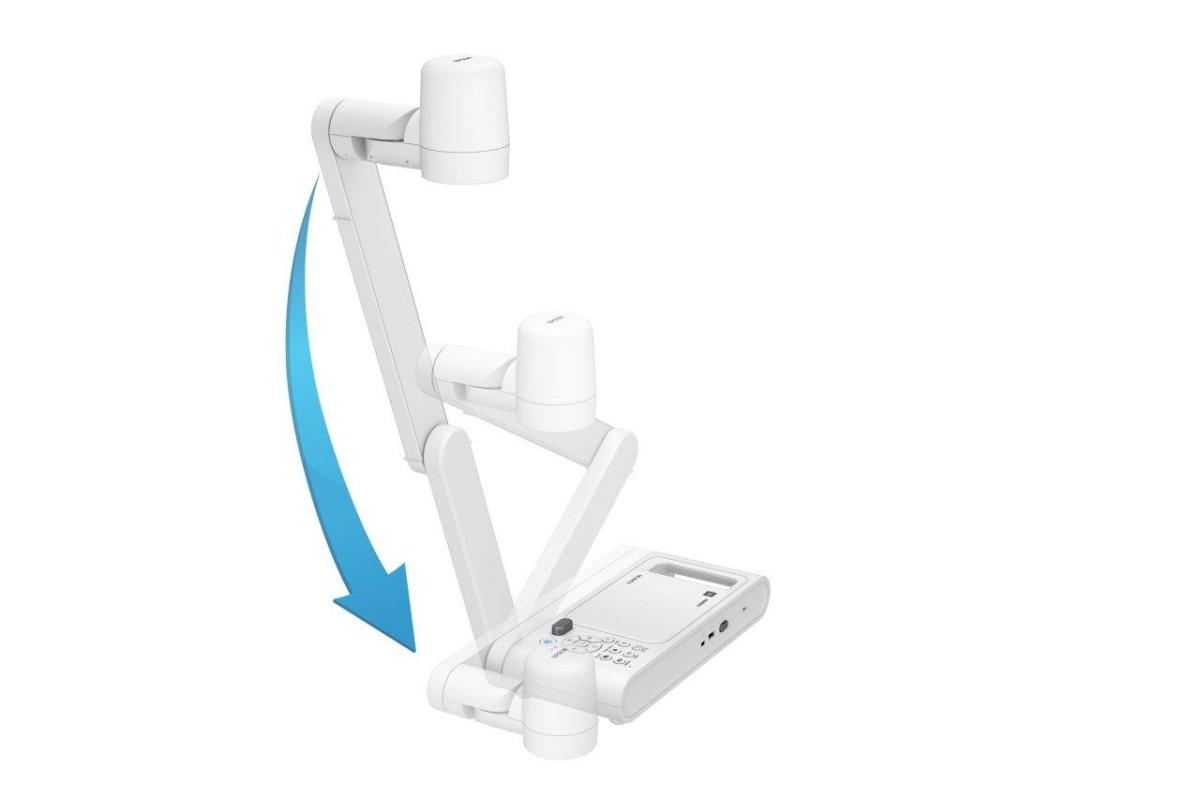

| Dimensions folded (WxDxH) | 362 x 159 x 85 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 280 mm |
| Package depth | 455 mm |
| Package height | 185 mm |
| Package weight | 4.42 kg |
| Logistics data | |
| Products per pallet | 48 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 2.1 m |
| Products per pallet layer | 8 pc(s) |
| Products per pallet layer (UK) | 12 pc(s) |
| Products per pallet (UK) | 72 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.1 m |
| Warranty | |
| Base Warranty | Non Non |
