Product Information

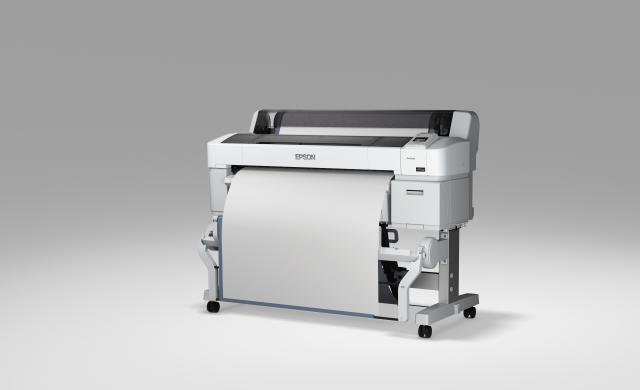

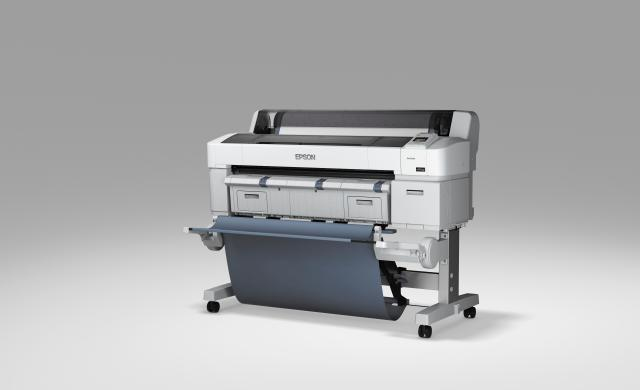

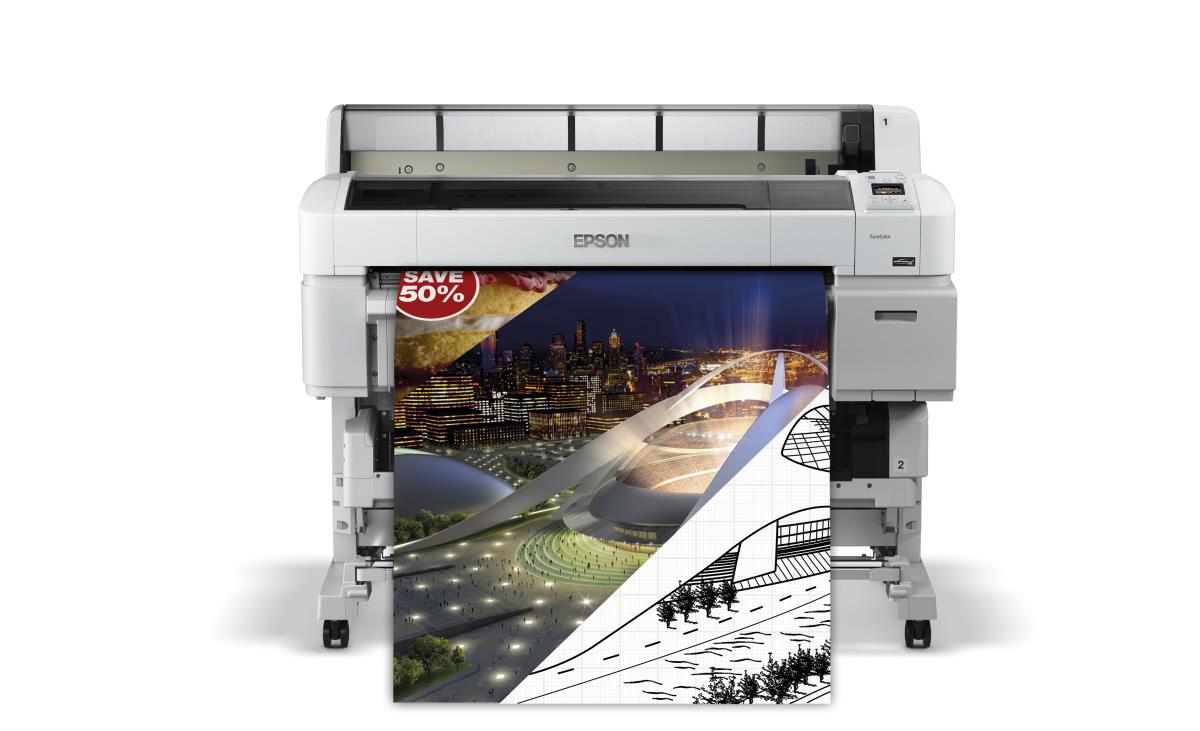

The SureColor SC-T5200D maximises performance in busy graphics, CAD and GIS production environments. The double paper rolls and fast print speed meet the market's need for maximum productivity and flexibility. Epson's PrecisionCore TFP printheads do not need replacing and, together with UltraChrome XD ink, deliver the highest level of performance, value and versatile media support.
Ideal for graphics, CAD and GIS
The SureColor SC-T5200D is one of the SureColor SC-T series of high-speed, four-colour large-format printers, designed to produce a wide range of high-quality display graphics, CAD and GIS applications in design, commercial print, copy shop, architecture, building, engineering, retail and education environments.
Highly productive
To maximise productivity and flexibility, the SC-T5200D features double rolls with auto paper loading and auto switching between media, and high-speed printing — outputting an A1 print takes just 28 seconds.
Fast
The SureColor SC-T5200D features 1GB of RAM for ultra-fast image processing, and an optional 320GB HDD for job caching and recall. Optional PostScript support with dual 1.6GHz CPUs enables printing of large data-rich files quickly and directly from leading design and CAD programs.
High quality output
The combination of Epson’s PrecisionCore TFP printheads and UltraChrome XD pigment ink delivers industry-leading output quality and precise, repeatable performance. UltraChrome XD pigment ink is smudge and water resistant and delivers deep blacks and crisp, dense lines — ideal for technical graphics — and the vibrant colours necessary for high-quality prints and posters, on coated and non-coated media — including board up to 1.5mm thick.
| Printing | |
| Print head nozzles | 720 Nozzles Black, 720 Nozzles per Color |
| Colour printing technology | Ultrachrome© XD |
| Colour | Yes |
| Maximum resolution | 2880 x 1440 DPI |
| Page description languages | ESC/P-R, HP-GL/2, HP-RTL |
| Printing colours | Photo black, Matte black, Yellow, Magenta, Cyan |
| Print head | PrecisionCoreT TFP print head |
| Scanning | |
| Optical scanning resolution | 600 x 600 DPI |
| Scan technology | CIS |
| Paper handling | |
| Maximum print size | A0 (841 x 1189 mm) |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A3+, A4 |
| ISO B-series sizes (B0...B9) | B2, B3, B4 |
| Media thickness | 0.08 - 1.5 mm |
| Roll top margin | 3 mm |
| Borderless printing width | 10 inches, 11.81 inches, 12.95 inches, 15.98 inches, 17.01 inches, 20.28 inches, 23.39 inches, 24.02 inches, 28.66 inches, 33.11 inches, 35.98 inches |
| Ports & interfaces | |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| USB port | Yes |
| USB connector | USB Type-B |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| RJ-45 ports quantity | 1 |
| Performance | |
| Product colour | White |
| Built-in display | Yes |
| Colour display | Yes |
| Display diagonal | 6.81 cm (2.68") |
| Internal memory | 1024 MB |
| Sound pressure level (printing) | 50 dB |
| Country of origin | China |
| Power | |
| Power consumption (standby) | 3 W |
| Power consumption (typical) | 61 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| System requirements | |
| Compatible operating systems | Linux, Mac OS 10.5.8 or later, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows Vista, Windows Vista x64, Windows XP |
| Mac operating systems supported | Mac OS X 10.5 Leopard |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 1405 mm |
| Depth | 974 mm |
| Height | 1128 mm |
| Weight | 118 kg |
| Packaging data | |
| Package width | 815 mm |
| Package depth | 1860 mm |
| Package height | 1600 mm |
| Package weight | 190.5 kg |
| Cartridge(s) included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Other features | |
| Line accuracy | +/-0.26 |
| Minimum line width | 0.02 mm |
| Ink drop | 3.5 pl, With Variable-Sized Droplet Technology |
| Printer features | Direct scan-to-print without PC |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 84433210 |
| Technical details | |
| Box contents | Driver and utilities, Individual Ink Cartridges, Maintenance box, Power cable, Setup guide, SureColor T-Series Printer, User manual (CD) |
| Power consumption | 61 Watt, 3 Watt (standby), 0.5 Watt (Power off) |

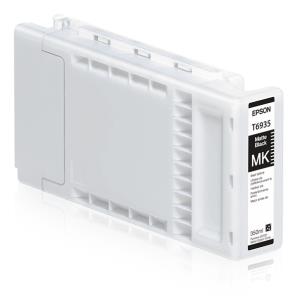

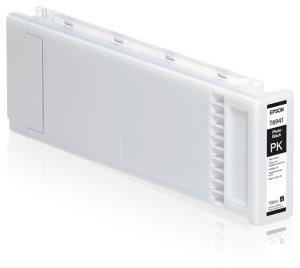

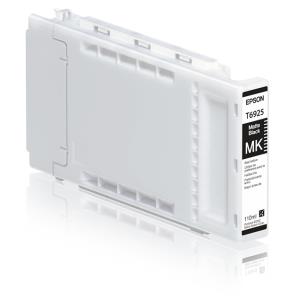

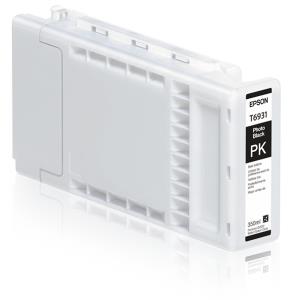

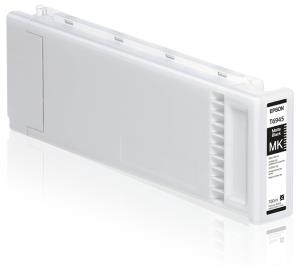

| Colours capacity | Photo Black [110ml, 350ml, 700ml], Matte Black [110ml, 350ml, 700ml], Cyan [110ml, 350ml, 700ml], Yellow [110ml, 350ml, 700ml], Magenta [110ml, 350ml, 700ml] |
| Warranty | |
| Base Warranty | Non Non |
