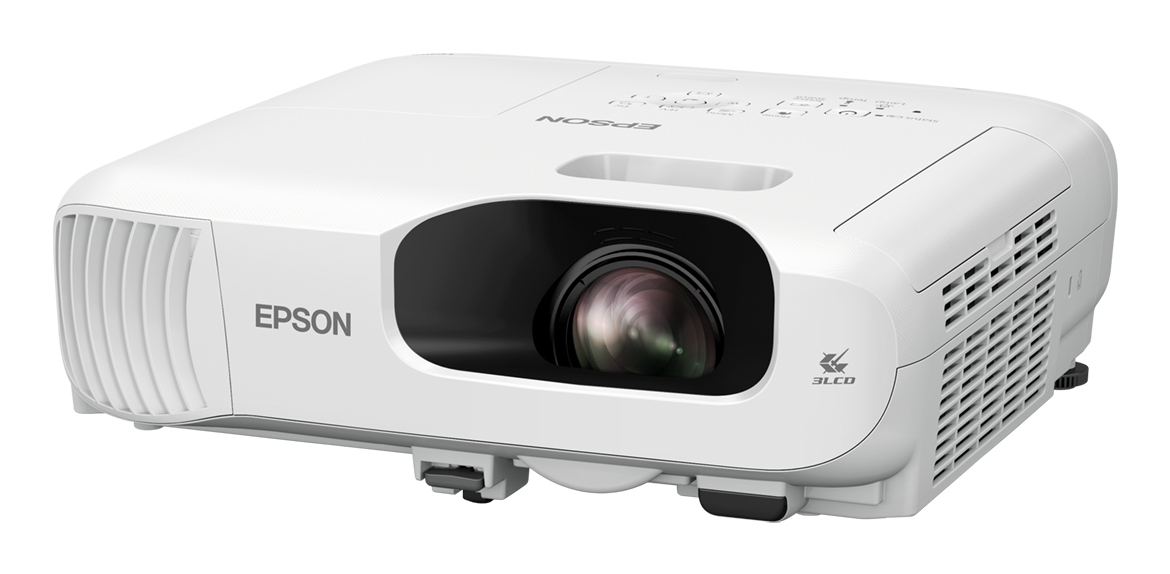

Eb-w56s - Projector - LCD - 3700 Lm
ITCurry #: 1925AF14 | Article #: V11HB62040-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Bright, up to 300" display from a lightweight design
Ideal for education and business environments, the EB-W56S delivers a sharp, bright (3,700 lumens) display up to 300", using 3LCD technology to ensure consistently vibrant images. Its compact short-throw design offers portability and versatile placement options. And the 5 year warranty and long-life lamp provides both reliability and peace of mind.
Large, bright and clear display
Even in the most brightly lit classroom or office the EB-W56S creates an engaging display. Its 3,700 lumens brightness, HD-ready resolution and display size of up to 300" ensures that every detail - whether images, text or video - is clear and vivid.
Enhanced image technology
The combination of 3LCD technology and Colour Light Output (CLO) helps increase engagement by bringing lessons and presentations to life. That engagement is further enhanced by Epson's Scene Adaptive Gamma Correction, which dynamically optimises image contrast based on the specific content being displayed. Together, these technologies make the EB-W56S ideal for displaying any content - whether documents, multimedia or educational videos - in crystal-clear detail.
Lightweight and portable
Weighing just 3.1kg, the EB-W56S is easily transportable, making it perfect for use across multiple locations - and with an optional carry case transporting the projector is both safe and convenient, enabling it to be quickly installed wherever required. This portability makes it an excellent choice for anyone looking for a solution which can be easily adapted to a variety of spaces.
A large display, even in small spaces
With a short-throw design (a throw ratio of 0.6:1) that lets you project a large (up to 300") image from close range, the EB-W56S is perfect for environments with limited space - minimising shadows and distractions so you can focus on delivering powerful and engaging content.
Advanced connectivity for outstanding versatility
Unlock the potential of multiple connection options - including a standard network port, optional Wi-Fi with ELPAP11, and dual HDMI inputs. This projector makes it easy for you to connect multiple devices, while Epson’s free iProjection app offers connectivity to almost any source device. Split-screen functionality enables the display of up to 4 inputs simultaneously, to enable dynamic, interactive learning experiences.
Affordable, durable quality
A highly affordable solution that doesn’t compromise on quality, this lamp-based projector delivers outstanding performance, flexibility, and durability, backed by a 5-year warranty. Long lamp life of up to 10,000 hours (in Eco mode) means minimal maintenance, making the EB-W56S ideal for modern educational settings and businesses alike.
| Projector | |
| Screen size compatibility | 1270 - 7620 mm (50 - 300") |
| Contrast ratio (dynamic) | 16000:1 |
| Projector brightness | 3700 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2000 ANSI lumens |
| Vertical scan range | 100 - 120 Hz |
| Keystone correction, horizontal | ñ15ø |
| Keystone correction, vertical | ñ15ø |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 6500 h |
| Service life of light source (economic mode) | 17000 h |
| Lens system | |
| Focus | Manual |
| Focal length range | 7.8 mm |
| F-number (relative aperture) | 1.8 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.60 - 0.81:1 |
| Video | |
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video processing | 10 bit |
| Colour modes (2D) | Cinema, Dynamic |
| Video colour modes | Blackboard, Dynamic, Presentation, sRGB, Theatre |
| Ports & interfaces | |
| HDMI version | 2.3 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| HDMI ports quantity | 2 |
| DVI port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Storage | |
| Card reader integrated | No |
| Features | |
| Interactive | No |
| Noise level (economic mode) | 28 dB |
| Preset modes | Cinema, Dynamic, Presentation |
| Noise level | 38 dB |
| Country of origin | Philippines |
| Password protection | Yes |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Design | |
| Market positioning | Education |
| Product type | Short throw projector |
| Product colour | Black, White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 øC |
| Storage temperature (T-T) | -10 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 309 mm |
| Depth | 282 mm |
| Height | 90 mm |
| Weight | 3.1 kg |
| Package width | 380 mm |
| Package depth | 490 mm |
| Package height | 205 mm |
| Package weight | 5.8 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Bundled software | Epson Projector Management, Web browser interface |
| Technical details | |
| Other features | A/V mute, Auto source search, Automatic keystone correction, Built-in speaker, Customizable user logo, Digital zoom, JPEG Viewer, Long lamp life, Microphone input, OSD copy function |
| Warranty period | 5 year(s) |
| Mobile app support | Yes |
| Power consumption | 332 Watt (Normal On-Mode), 231 Watt (Eco On-Mode), 0.3 Watt (Energy saving standby) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Option type | Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Soft carry case, Spare lamp, WP System - ELPWP20, Wireless LAN unit |
| Interface | USB 2.0-A, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, Composite in, Microphone input, USB 2.0 Type B (Service Only), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), HDMI in (2x), Jack plug out |
| Control panel | 0.59 inch with C2 Fine |
| Supported network protocols | IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Box contents | Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty Documents |
| Security features | Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Password protection |
| Warranty | |
| Base Warranty | Non Non |
