Eb-775f - Digital Signage Projector - 3LCD - 4100 Lm - USB / Wi-Fi / Hdmi
ITCurry #: 1925Z807 | Article #: V11HA83180-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Digital signage solution
The EB-775F is a cost effective way to create large, informative and immersive displays on multiple surfaces and in tight spaces at full HD and up to 4,100 lumens.
It is designed to display visitor and customer information (e.g. in hospitality, retail and offices), exhibition information - even projecting directly onto exhibits - and boardroom presentations or school lessons.
Create enaging displays
Epson's advanced laser technology makes this a flexible and easy to use digital signage solution. Create enaging displays up to 150" (larger when using 2 devices) at up to 4,100 lumens for easy visibility in bright environments.
Bring any surface to life, discretely
The EB-775F can be installed on wall or ceiling and can project onto almost any surface (even unconventional surfaces such as floor or pillars). It's UST design also makes it ideal for projecting large images in tight spaces. Choose between a black (EB-775F) or white (EB-770F) model to discretely blend it into your environment - it can even be hidden to create floating and borderless displays to surprise and delight audiences.
Robust, reliable and cost effective
Our laser technology is also robust and low maintenance. Offering up to 20,000 hours maintenance-free use and a 5 year warranty, this is a fit-and-forget display solution you can rely on at a cost-effective price.
Flexible playback options
Epson offers free apps for content creation (Epson Creative Projection & Epson Projector Content Management). Content can be played directly from USB (including playlists, videos, and signage content) via the built-in playback feature, or users can upload and playback content wirelessly with built-in Wi-Fi and Miracast.
| Projector | |
| Supported aspect ratios | 16:9, 21:9 |
| Screen size compatibility | 1524 - 3810 mm (60 - 150") |
| Projection distance (wide) | 0 - 0.4 m |
| Projection distance (tele) | 0 - 0.7 m |
| Contrast ratio (dynamic) | 5000000:1 |
| Projector brightness | 4100 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2800 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, horizontal | ñ3ø |
| Keystone correction, vertical | ñ3ø |
| Heat dissipation | 895 BTU/h |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
| Focus | Manual |
| Focal length range | 3.7 mm |
| F-number (relative aperture) | 1.6 |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.25 - 0.35:1 |
| Video | |
| Full HD | Yes |
| Supported video modes | 1080p |
| Video processing | 10 bit |
| Video colour modes | Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB |

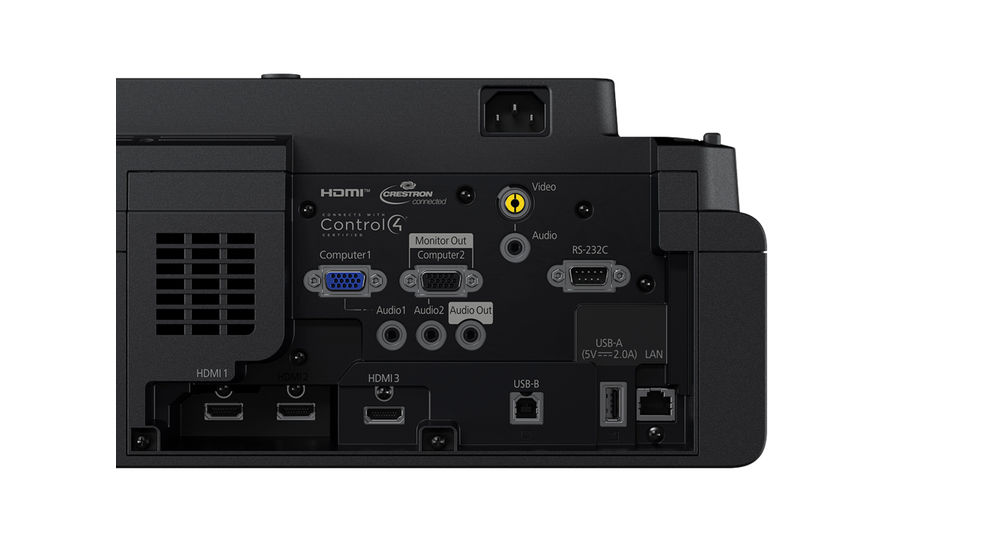

| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| DVI port | No |
| AC (power) in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Miracast | Yes |
| Storage | |
| Card reader integrated | No |
| Features | |
| Noise level (economic mode) | 27 dB |
| Noise level | 37 dB |
| Country of origin | Philippines |
| Password protection | Yes |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Number of built-in speakers | 1 |
| Design | |
| Market positioning | Presentation |
| Product type | Ultra short throw projector |
| Product colour | Black |
| Placement | Ceiling, Desktop, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 263 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -10 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 356 mm |
| Depth | 395 mm |
| Height | 133 mm |
| Weight | 5.9 kg |
| Package width | 450 mm |
| Package depth | 485 mm |
| Package height | 320 mm |
| Package weight | 8.67 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Bundled software | Epson Creative Projection, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Content Manager, Epson Projector Management |
| Technical details | |
| Other features | 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Warranty period | 5 year(s) |
| Mobile app support | Yes |
| Power consumption | 200 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Products per pallet | 12 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 2.07 m |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 4 pc(s) |
| Products per pallet (UK) | 24 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.07 m |
| Other features | |
| Option type | Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall hanging bracket, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Interface | USB 2.0-A (2x), USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Wi-Fi Direct |
| Control panel | 0.61 inch with C2 Fine |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Box contents | Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty Documents |
| Security features | Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Warranty | |
| Base Warranty | Non Non |
