Elopos System Black - 22in - Celeron J4105 - 4GB - 128GB SSD - Non Os With Stand And Io Hub
ITCurry #: M0134432 | Article #: E937154-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

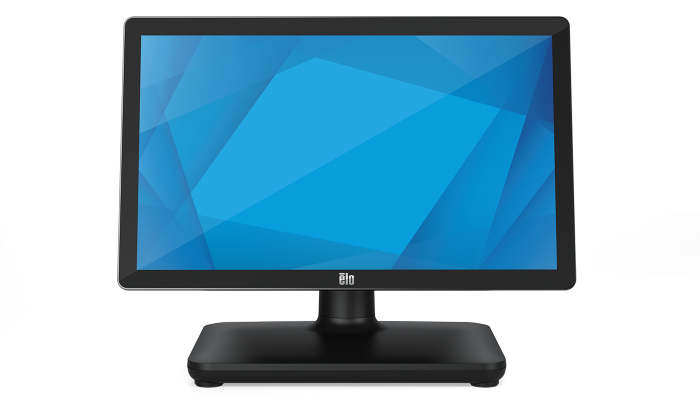

EloPOS™ System
Modern. Modular. Made for Retail. The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 21.5-inch touchscreen display, choice of Intel’s 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.
Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.
Connections. Connections. Connections.
The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.
Configure Your Solution
EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system,and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact.
Add a Customer-Facing
Display with Ease The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Windows or Linux. You Choose.
EloPOS utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.
Retail-Hardened
Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare options - making EloPOS the ideal product for point of sale applications.
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Y |
| Display type | LCD |
| Display brightness | 212.5 cd/mý |
| Touchscreen technology | Projected capacitive system |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Response time | 14 ms |
| Aspect ratio | 16:9 |
| Display number of colours | 16.78 million colours |
| Processor | |
| Processor frequency | 1.5 GHz |
| Processor family | Intel© Celeron© |
| Processor model | J4105 |
| Processor cores | 4 |
| Processor cache | 4 MB |
| Processor threads | 4 |
| Memory | |
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 8 GB |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2400 MHz |
| Storage | |
| Total storage capacity | 128 GB |
| Storage media type | SSD |
| Storage media | SSD |
| Number of storage drives supported | 1 |
| SSD capacity | 128 GB |
| SSD interface | Serial ATA |
| SSD form factor | M.2 |
| Graphics | |
| Graphics card manufacturer | Intel |
| Graphics card | UHD Graphics 600 |
| Features | |
| Certification | UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC |
| Harmonized System (HS) code | 84715000 |
| Multimedia | |
| Built-in speaker(s) | Y |
| Number of speakers | 2 |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 1000 Mbit/s |
| Bluetooth | Y |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Powered USB | Y |
| Line-out | Y |
| Serial ports quantity | 2 |
| Design | |
| Chassis type | All-in-One |
| Product colour | Black |
| Software | |
| Operating system installed | N |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Power supply | 180 W |
| Power consumption (typical) | 31 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 35% |
| Operating temperature (T-T) | -20 - 60 øC |
| Relative humidity | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Ergonomics | |
| VESA mounting | Y |
| Panel mounting interface | 75 x 75 mm |
| Mean time between failures (MTBF) | 50000 h |
| Weight & dimensions | |
| Width | 416.4 mm |
| Depth | 84.7 mm |
| Height | 525.9 mm |
| Width (with stand) | 416.4 mm |
| Depth (with stand) | 257.8 mm |
| Height (with stand) | 525.9 mm |
| Weight | 6 kg |
| Weight (with stand) | 8.9 kg |
| Packaging data | |
| Package width | 644 mm |
| Package depth | 375 mm |
| Package height | 548 mm |
| Package weight | 11.9 kg |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Warranty | |
| Base Warranty | Non Non |
