TRIPP LITE USB-C, USB-A to RJ45 Gigabit Ethernet Network Adapter (2xM/F), USB 3.2 Gen 1, Black
ITCurry #: 57907217 | Article #: U336-000-GB-CA-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
USB to Gigabit Ethernet Adapter Connects You to a Wired 1G Network
This USB network adapter instantly connects your computer, notebook, MacBook Pro or Windows laptop to a wired Gigabit network through either a USB-A or USB-C port. No internal Ethernet card is required. Ideal for settings in which no Wi-Fi is available or when a wired connection offers faster speeds, this USB 3.2 Gen 1 adapter lets you enjoy true 10/100/1000 Mbps Ethernet speeds for uploading and downloading large files and streaming audio/video without buffering.
Plug-and-Play Operation Gets You Online Immediately

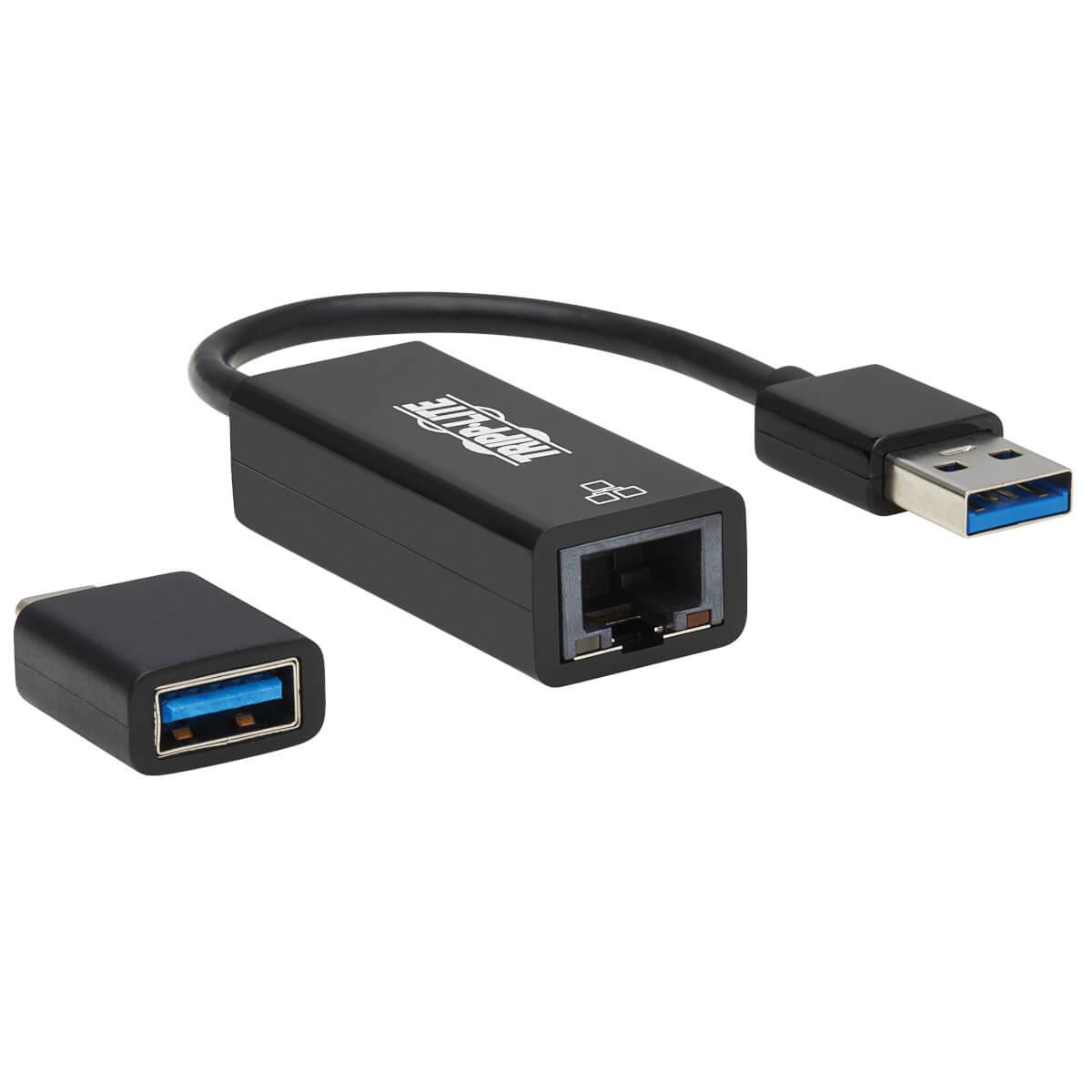

This bus-powered network adapter requires no external power source. Just connect the built-in USB-A plug to your computer (a USB-C adapter is included for connecting a USB-C or Thunderbolt 3 port), and use a Cat6 cable (such as N201-Series) to connect the RJ45 end to a network. LEDs indicate when the adapter is connected to your computer and your computer is connected to a network.
Complies with Current IEEE Standards
The U336-000-GB-CA is compliant with IEEE 802.3, 802.3u, 802.3ab and 802.3az standards. It supports full duplex with IEEE 802.3x flow control and half duplex with back-pressure flow control, as well as 10/100/1000 auto-sensing, Wake-on-LAN and IPv4 and IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading. The compact unit fits easily into a pocket, purse, backpack or laptop bag for instant file transfers where needed. It’s compatible with Windows and macOS.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| USB connector form factor | Straight |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Wi-Fi | No |
| Design | |
| Component for | Laptop |
| Product colour | Black |
| Internal | No |
| Country of origin | Vietnam |
| Certification | RoHS, REACH, CE, FCC, WEEE |
| Power | |
| USB powered | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 100.1 mm |
| Package depth | 20 mm |
| Package height | 119.9 mm |
| Package weight | 50 g |
| Logistics data | |
| Master (outer) case GTIN (EAN/UPC) | 10037332266931 |
| Harmonized System (HS) code | 8517.62.0090 |
| Master (outer) case width | 255 mm |
| Master (outer) case length | 119.9 mm |
| Master (outer) case height | 115.1 mm |
| Master (outer) case gross weight | 700 g |
| Products per master (outer) case | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
