TRIPP LITE Roof Panel Kit for Hot/Cold Aisle Containment System - Wide 750mm Racks
ITCurry #: 57906532 | Article #: SRCTMTCVR750-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

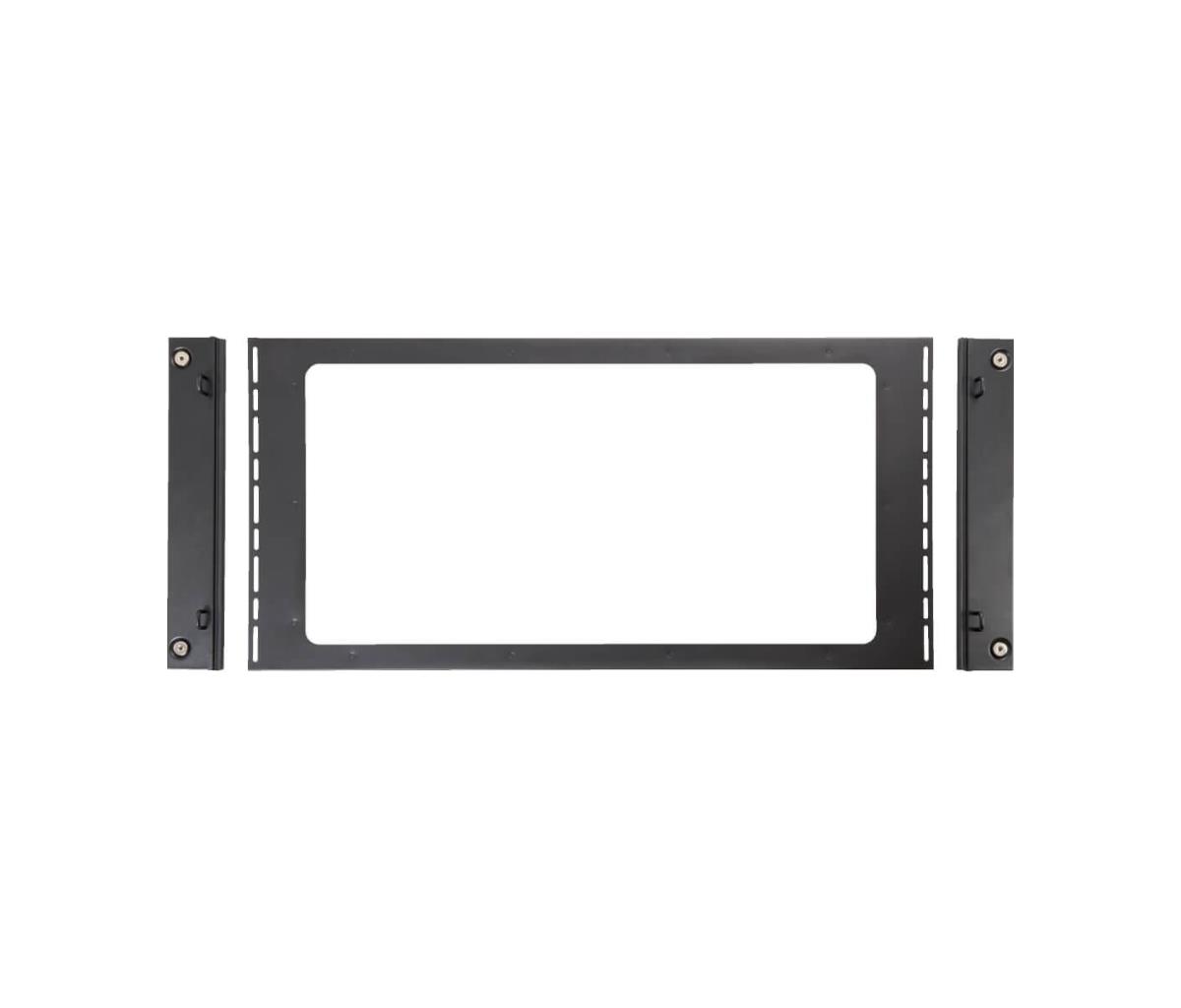

Individual Roof Panel Designed for Wide 750 mm Server Racks
This SmartRack® roof panel fills the gap between the aisle containment system’s telescopic beams (SRCTMTTLBM, sold separately). It helps you freely populate a hot or cold aisle with server racks of different sizes, while still providing a thermally enclosed space. The clear acrylic panel lets light shine through, saving you the time and expense of installing additional lighting. Pre-drilled holes allow easy installation using the included hardware with easy modification if needed. Filler panels attach magnetically to fill the open space between the rack cabinet and the containment frame’s upper support beam. Rubber gaskets provide a tight seal that improves thermal efficiency in your rack cooling system.
Aisle Containment System Manages Airflow for More Cooling Efficiency
Upon installation in your data center or server room, the modular, easy-to-assemble Aisle Containment System contains the air in a hot aisle or cold aisle, essentially creating a room within the aisle, while still keeping the aisle accessible. No costly contractor or HVAC specialist is required to install the system, which can be expanded or adapted to meet your needs. Assorted frame kits, beam kits, sliding double-door kits, roof panel kits and adapter riser panel kits (all sold separately) are necessary to assemble a hot or cold Aisle Containment System that accommodates the dimensions of your aisle and the rack enclosures within it.
| Features | |
| Type | Top panel |
| Product colour | Black |
| Country of origin | China |
| Weight & dimensions | |
| Width | 756.9 mm |
| Depth | 1246.9 mm |
| Height | 24.9 mm |
| Weight | 11.1 kg |
| Packaging data | |
| Package width | 849.9 mm |
| Package depth | 1367 mm |
| Package height | 95 mm |
| Package weight | 12.8 kg |
| Packaging content | |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332214345 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 1384.8 mm |
| Master (outer) case length | 866.1 mm |
| Master (outer) case height | 214.9 mm |
| Master (outer) case gross weight | 29.4 kg |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 3925.90.0000 |
| Warranty | |
| Base Warranty | Non Non |
