Wireless Collaboration/presentation System Incl. 2 Transmitters
ITCurry #: M9238928 | Article #: DS-55317-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Wireless collaboration/presentation system - presenting from a notebook, tablet or smartphone
- Share, present & collaborate from your notebook, tablet or smartphone - transmission distance of up to 50 m
- Easy installation - no software or app required
- Simultaneous presentation of up to 4 participants in split screen
- Up to 30 participants (simultaneous connection to the recipient)

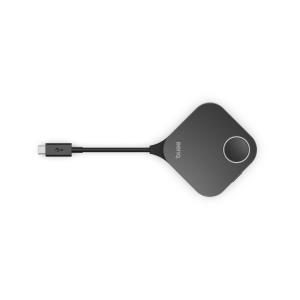

- Share from your notebook via HDMI transmitter (transmitter) or via wireless screen (Windows)/screen synchronization (macOS)
- Share from your tablet/smartphone via the screen synchronization (iOS, iPadOS/Android) of your mobile device
- Touch Panel Back Control - the touch-back function of the receiver unit enables gestures/controls to be sent wirelessly back to a Windows PC using a finger on a large touchscreen
- Integrated whiteboard - the main menu of the receiver has a whiteboard function and, in combination with a touchscreen, enables quick notes to be taken during the meeting or presentation directly on the display
- Supports Windows, macOS, iOS, iPadOS, Android
- Expandable with additional HDMI transmitters (transmitters) - DS-55322
The Wireless Collaboration System from DIGITUS® combines all your devices (notebook, tablet, smartphone) and offers a hardware-based presentation solution for wireless transmission of screen content for meeting/conference rooms. Up to 30 participants can be connected to the receiver. Up to 4 participants can present/collaborate simultaneously in split-screen mode. Notebooks can be connected to the HDMI transmitter and the set can be expanded with additional transmitters (DS-55322). Alternatively, you can stream directly from the notebook (without TX) via wireless screen (Windows)/screen synchronization (macOS) to the receiver. Content from a tablet/smartphone can be conveniently shared via the sharing/cast function (iOS, iPadOS/Android) of your mobile device by connecting your mobile device to the receiver (SSID) via WLAN beforehand. The system setup has been simplified as much as possible - no additional software/apps are required. Increase the efficiency of your meetings, save time and achieve optimized results. Share - Present - Collaborate.
| Design | |
| Form factor | Desktop |
| Product colour | Black, Grey |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| LED indicators | Yes |
| Features | |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Network | |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 2.4 - 5 GHz |
| Dual-band | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Security algorithms | 128-bit AES, WPA-PSK, WPA2, WPA2-PSK |
| Maximum operating distance | 50 m |
| Ports & interfaces | |
| Interface | HDMI |
| HDMI input ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DC-in jack | Yes |
| Power | |
| Power source type | DC |
| Power over Ethernet (PoE) | No |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android, iOS |
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions | |
| Package width | 290 mm |
| Package depth | 190 mm |
| Package weight | 1.61 kg |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | HDMI, USB |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Package volume | 6061 cmü |
| Warranty | |
| Base Warranty | Non Non |
