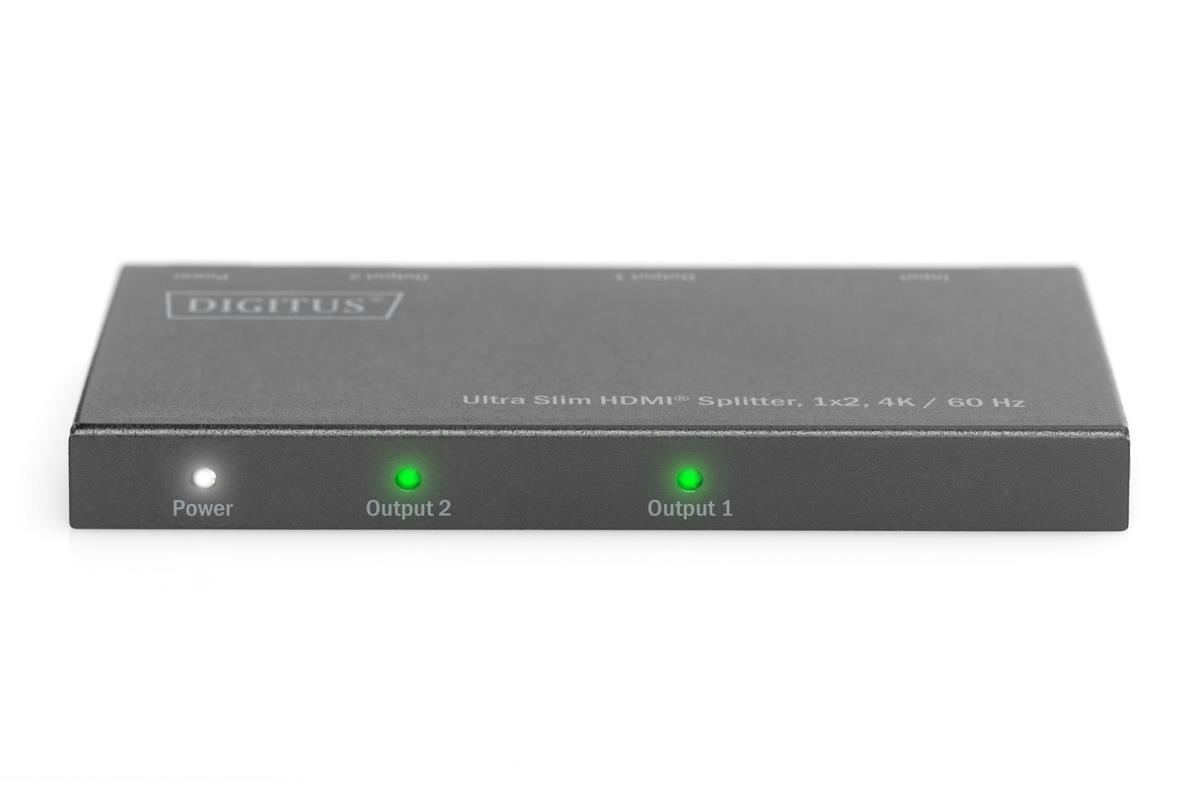

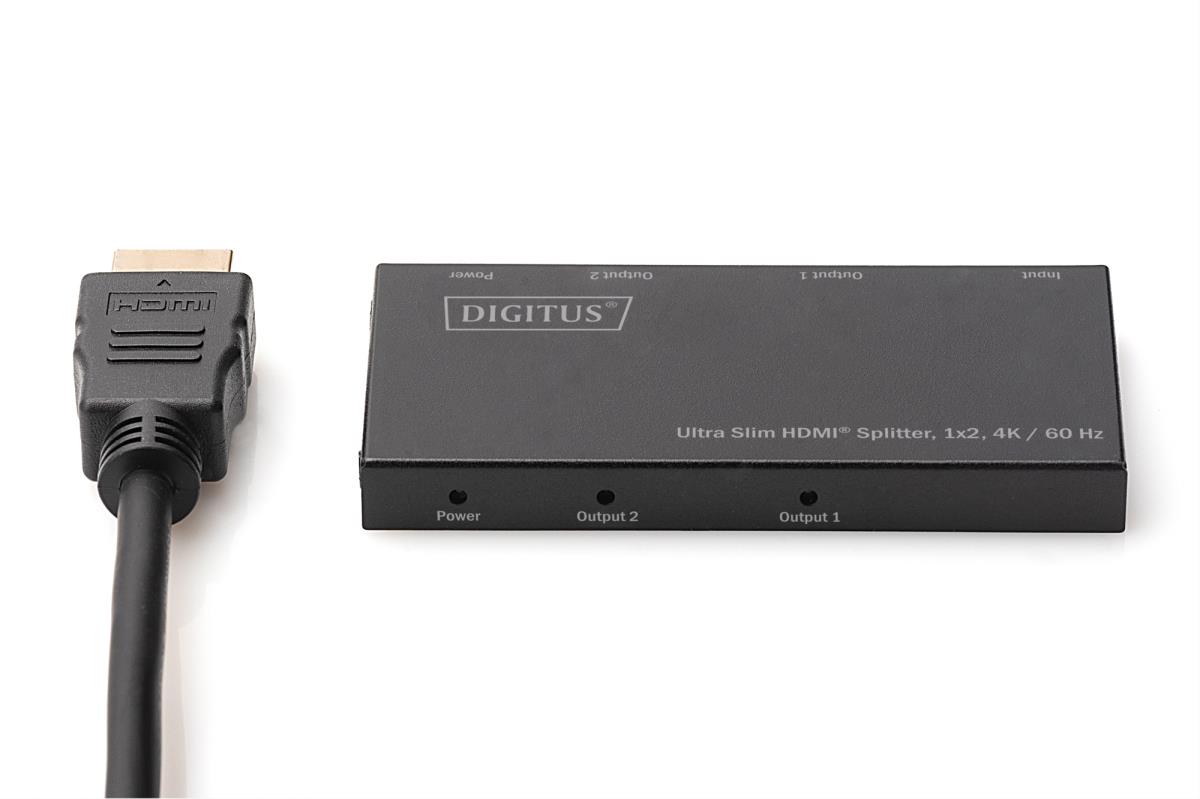

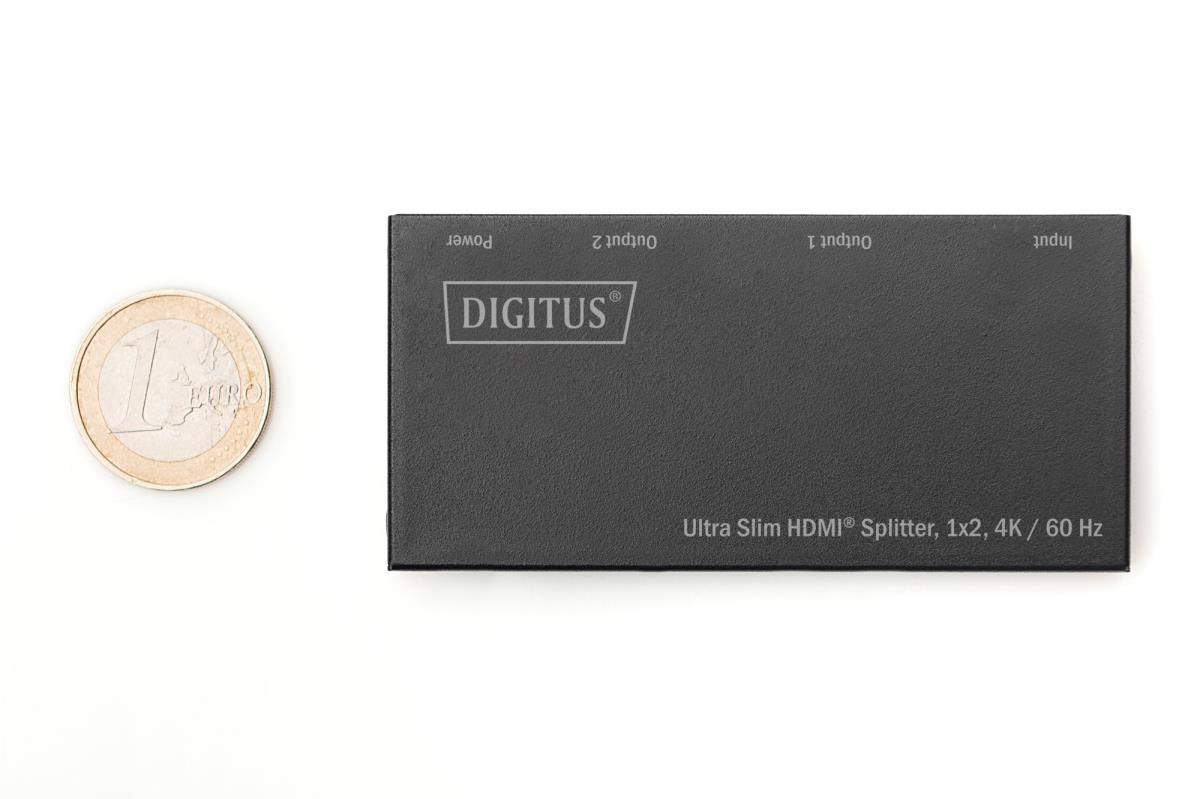

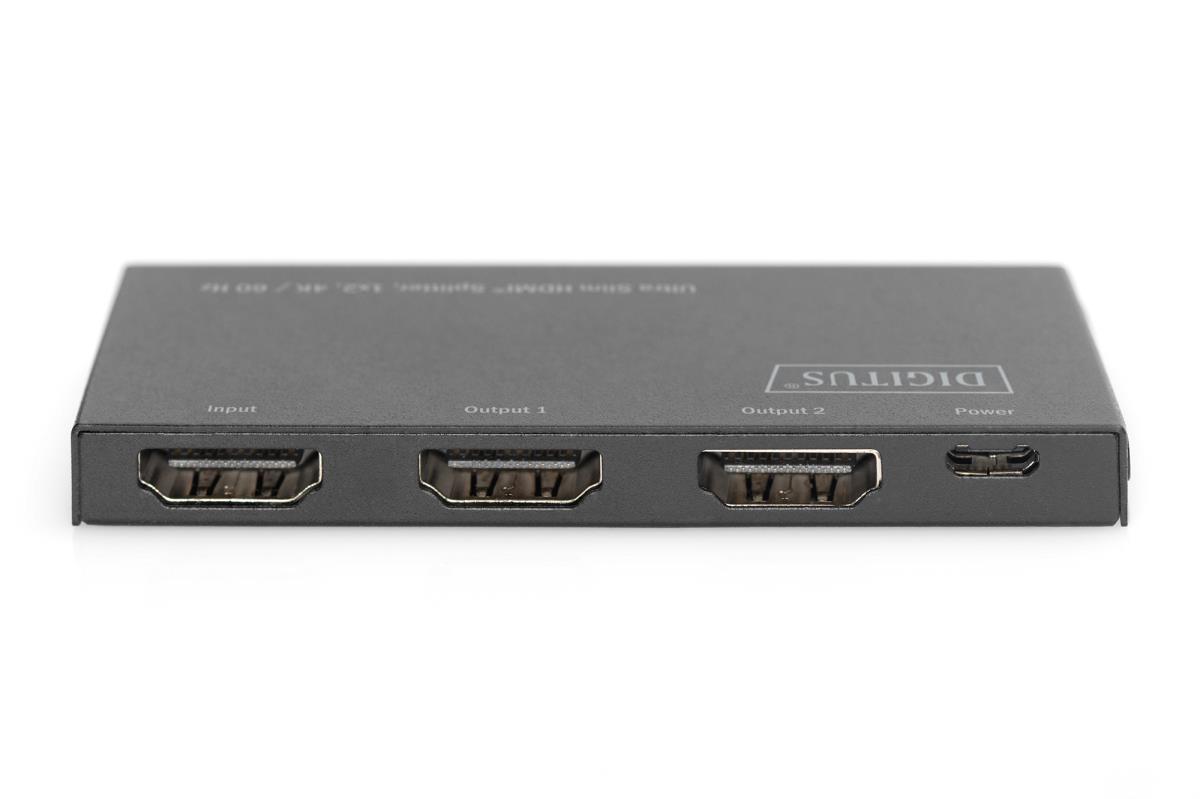

Ultra Slim HDMI Splitter, 1x2, 4K/60Hz HDR, HDCP 2.2, 18 Gbps, Micro USB powered
ITCurry #: M9238119 | Article #: DS-45322-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Splits one HDMI signal on two displays - supports UHD 4K / 60 Hz with HDR
- Resolutions of up to 4K / 60 Hz (4:4:4)
- Full 18 Gbps - for a crystal clear display of UHD contents
- Supports HDR & HDCP 2.2
- Power supply via Micro USB (charging adapter, TV, notebook)
- Cascading of up to 8 splitters in a row
- Ultra slim design
- Compatible with the latest Ultra High Definition (UHD) standards
- Protection from Electrostatic Discharges (ESD)
- Plug and Play
The DIGITUS® high-performance HDMI Splitter splits your HDMI device’s audio and video signals on two screens, TVs or projectors with a resolution of UHD 4K / 60 Hz. No more tedious reconnecting your cables. Additionally, HDR, HDCP 2.2 and 3D are supported - also a total width of 18 Gbps for fluent playback in excellent quality. The HDMI® splitter can be supplied via an existing USB port located on the TV device or, alternatively, via a USB charging adapter using electricity. You can cascade several splitters up to 8 levels.
| Ports & interfaces | |
| Video port type | HDMI |
| Video out | HDMI |
| HDMI version | 1.4 |
| Video ports quantity | 2 |
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Colour depth | 36 bit |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| Plug and Play | Yes |
| LED indicators | Yes |
| Certification | CE |
| Power | |
| AC input voltage | 5 V |
| Input current | 0.4 A |
| Power consumption (typical) | 2 W |
| USB powered | Yes |
| Weight & dimensions | |
| Width | 83 mm |
| Depth | 40 mm |
| Height | 9 mm |
| Weight | 60 g |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 110 mm |
| Package height | 25 mm |
| Package weight | 300 g |
| Package volume | 412.5 cmü |
| Packaging content | |
| Manual | Yes |
| Cables included | Micro-USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -10 - 80 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Technical details | |
| Connector 1 | HDMI |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| UK Trade Tariff code | 85437090 |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 6 kg |
| Master (outer) case volume | 29120 cmü |
| Products per master (outer) case | 20 pc(s) |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
