Outdoor installation cable - Cat 7a - S/FTP - AWG 22/1 simplex - 50m - Black
ITCurry #: M923A018 | Article #: DK-1743-A-VH-05-OD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Future-oriented standards and high-end quality for your network.
- Dual-layer universal cable jacket: PE outer jacket and LSZH Dca inner cable jacket
- The PE jacket can be easily removed over a distance of several meters using a tear-off thread
- 10 Gbit Ethernet
- 1500 MHz transmission frequency
- PoE, PoE+, 4PPoE (IEEE 802.3af; 3at; 3bt)
- Inner jacket: BauPVO Class Dca

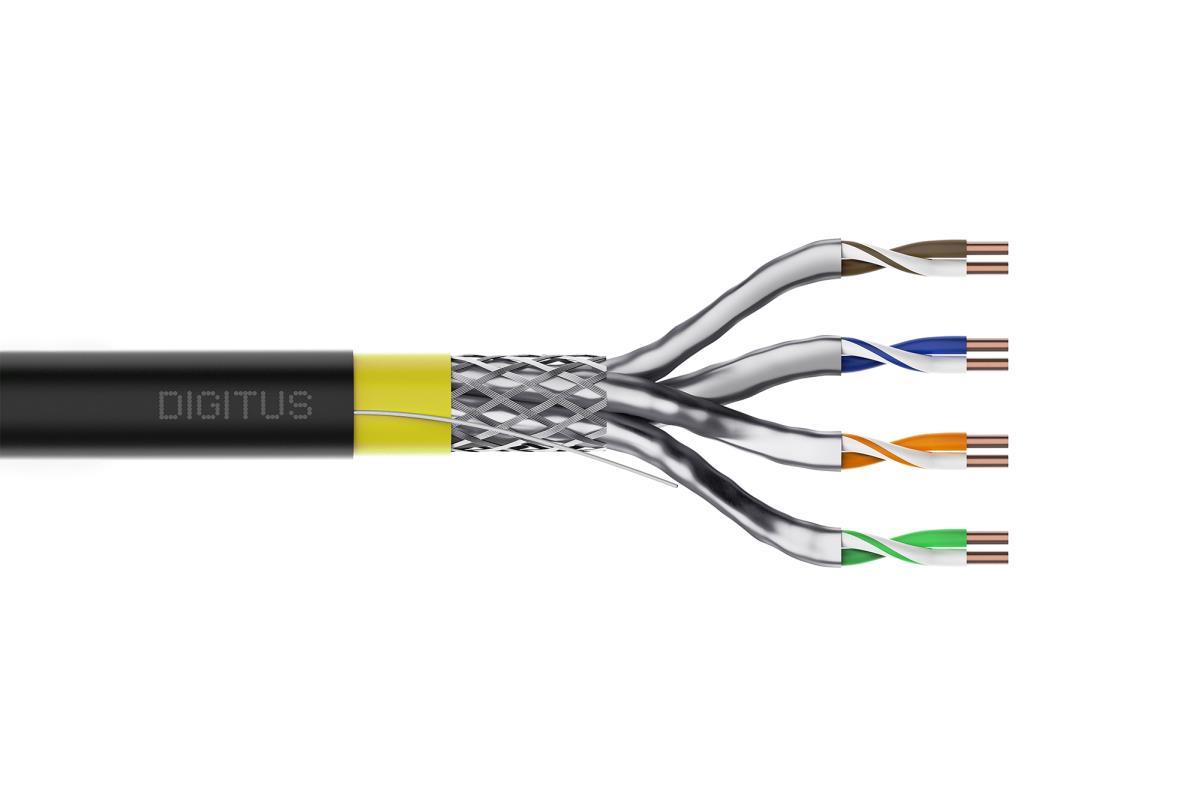

The Digitus® Professional CAT 7A S/FTP underground cable features the following cable construction: 4x2x AWG22/1, and achieves a transmission frequency of up to 1500 MHz. The cable features a PE outer jacket and a halogen-free inner jacket and complies with the standards IEC 60332-1, FRNC-B, LSZH-1, and the Construction Products Regulation (CPR) Euroclass Dca. The cable is suitable for installation in dry or damp rooms, outdoors, or underground. It complies with the standards ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-4-1.
| Features | |
| Product colour | Black |
| Cable length | 50 m |
| Cable standard | Cat7a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | No |
| Connector 2 | No |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Connector shielding | Yes |
| Connector shield material | Metal foil |
| Jacket material | Polyethylene (PE) |
| Conductor type | Solid |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| Cable fire class | Dca |
| AWG wire size | 22/1 |
| Country of origin | China |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 60 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Weight & dimensions | |
| Outer diameter | 9 mm |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 280 mm |
| Package height | 280 mm |
| Package weight | 3.6 kg |
| Logistics data | |
| UK Trade Tariff code | 85444920 |
| Technical details | |
| Shielding type | Foil + braiding |
| Warranty | |
| Base Warranty | Non Non |
