Modularized 43,2cm (17in) HD LCD TFT console with 8 port Cat5 KVM 8 Cat5 VGA Dongle - IT keyboard
ITCurry #: M9239403 | Article #: DS-72220-4IT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Maximum flexibility in managing the server farm
- Resolution: 1920x1080 at 60 Hz
- Contrast ratio: 1000:1
- Supports: 16.7 M colors
- Includes 8-port Cat-5 KVM switch
- Mouse touch board with two function buttons
- Space-saving housing (1U), black (RAL 9005)
- Interface: Cat 5

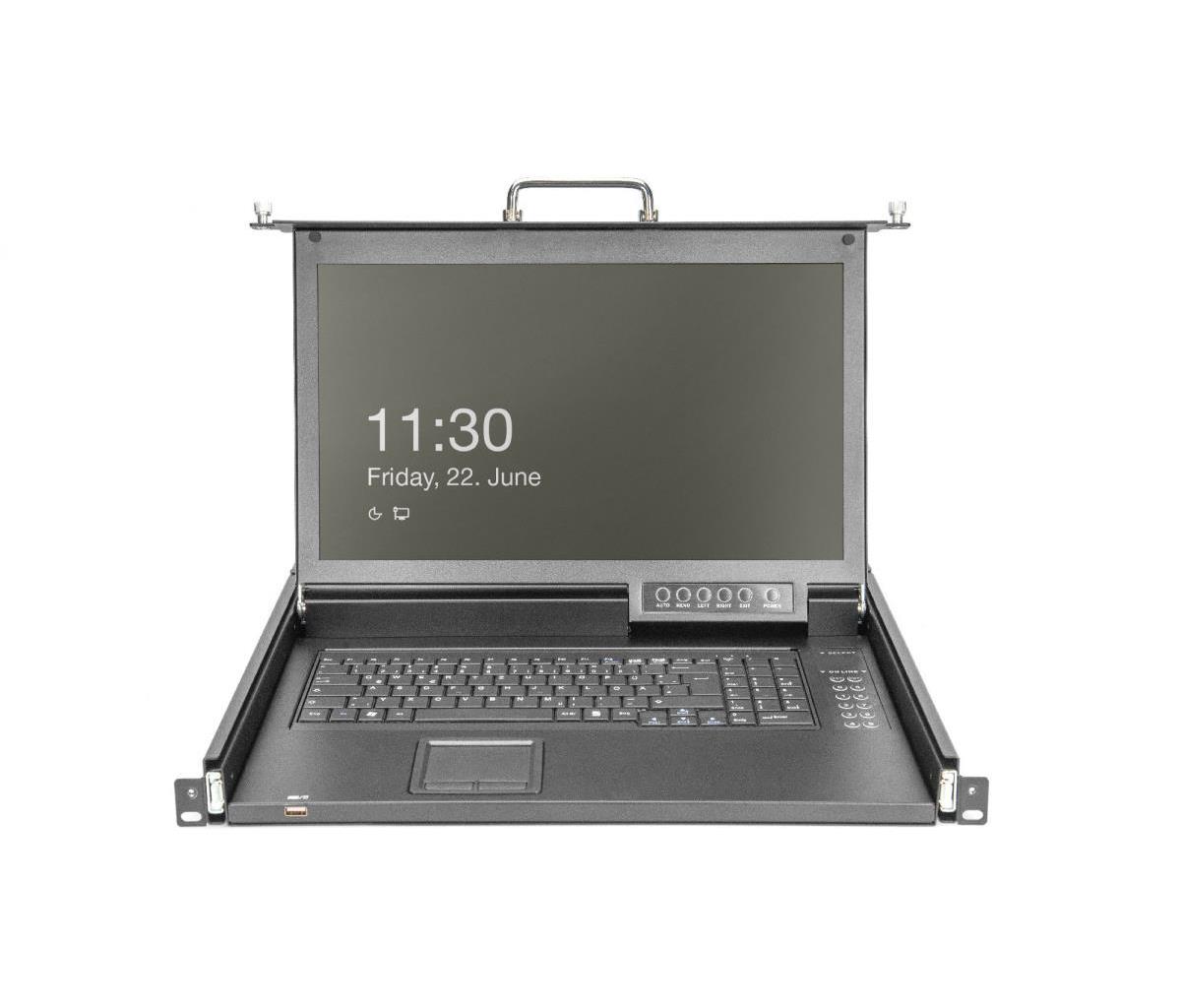

Thanks to its modular design, the DIGITUS® 17" HD TFT console offers a wide range of individual configuration options so that it can be adapted to the area of application of the console. This makes the console cost-saving and it can be upgraded or retrofitted with additional modules at any time. The flexible configuration guarantees that the console is highly future-proof. The modular console consists of a 17" monitor, an 8-port Cat 5 KVM switch and the touchpad.
| Display | |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1920 x 1080 pixels |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Display type | TFT |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Product colour | Black |
| Rack capacity | 1U |
| Ports & interfaces | |
| RJ-45 ports quantity | 8 |
| USB 2.0 Type-A ports quantity | 1 |
| DC-in jack | Yes |
| Keyboard | |
| Built-in touchpad | Yes |
| Keyboard language | Italian |
| Keyboard layout | QWERTY |
| Weight & dimensions | |
| Width | 509 mm |
| Height | 45 mm |
| Depth | 445 mm |
| Weight | 13.8 kg |
| Mounting depth (min) | 80 cm |
| Mounting depth (max) | 120 cm |
| Packaging data | |
| Package weight | 19.1 kg |
| Package width | 755 mm |
| Package depth | 625 mm |
| Package height | 186 mm |
| Package volume | 87768.8 cmü |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Warranty | |
| Base Warranty | Non Non |
