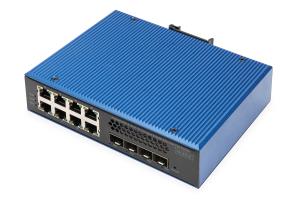

Industrial 8 +4-Port Gigabit Ethernet Switch 8xGE RJ45 + 2 SFP+ Port
ITCurry #: M9239143 | Article #: DN-651152-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
8x 10/100/1000 BASE-TX RJ45 + 4 x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40? to 80?.
- 8 port GE, 2 SFP GE ports
- 8 x 10/100/1000 Mbit (RJ45)
- 4 x 10/100/1000 Mbit (SFP)
- Redundant power supply 12-48 V (DC)
- Metal housing to IP40 standard
- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems
The DN-651152 is a robust 8 + 4 port Industrial Gigabit Ethernet switch for harsh environments. With non-blocking wire-speed performance, it offers 8x 10/100/1000 BASE-TX RJ45 + 4x 1000 Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40? to 80?.
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 2 |
| Fiber optic connector | SFP, SFP+ |
| Network | |
| Networking standards | IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | No |
| Data transmission | |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 38.7 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black, Blue |
| Housing material | Metal |
| International Protection (IP) code | IP40 |
| DIN rail mounting | Yes |
| Vandal-proof | No |
| Suitable for outdoor use | No |
| Performance | |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 300000 h |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 12 - 48 V |
| Power consumption (typical) | 10 W |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Bandwidth | 52 Gbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 øC |
| Storage temperature (T-T) | -40 - 80 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 143.7 mm |
| Depth | 125 mm |
| Height | 47.7 mm |
| Weight | 700 g |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Packaging data | |
| Package width | 158 mm |
| Package depth | 66 mm |
| Package height | 213 mm |
| Package volume | 2221.16 cmü |
| Package weight | 750 g |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
